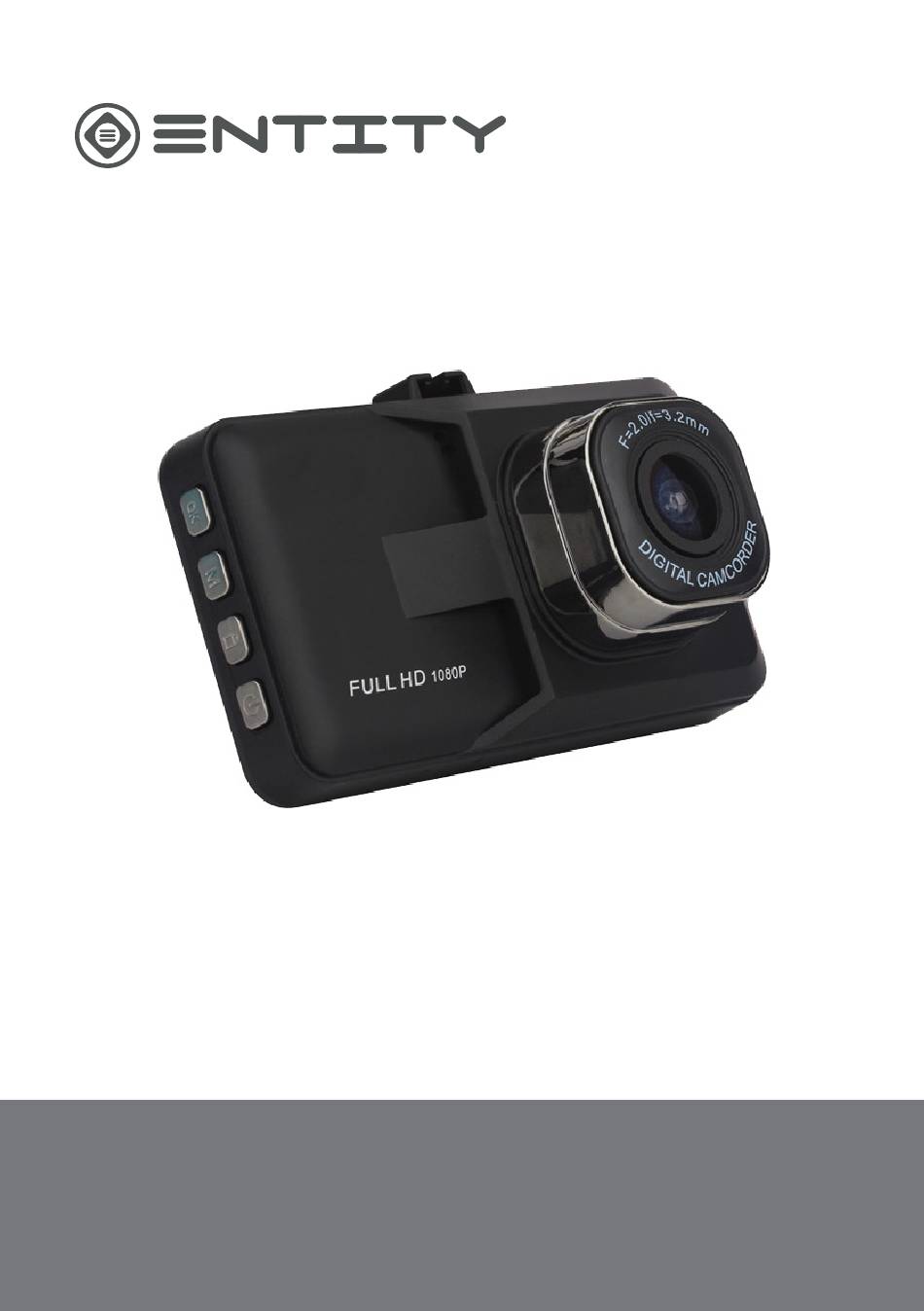

Page 1 AK-L6B 23022018 In Car Dash Camera Instruction Manual Model Ref: AK-L6B...
Page 2: Table Of Contents
INTRODUCTION Thank you for choosing the In Car Dash Camera. This product is manufactured to the highest standards of performance and safety. This product uses a high performance chipset, with high definition video, seamless dynamic pictures and support for 1080p HD recording.
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING - To reduce the risk of fire, electric shock, or injury: • DO NOT drop the product from a great height or strike it with an object. • DO NOT allow the in car dash camera to come within a close proximity of objects with a strong magnetic force, such as magnets.
Page 4: Product Overview
PRODUCT OVERVIEW Micro SD/TF card slot Lock Button Mode Button Up Button Menu Button OK Button Down Button USB Interface Car Mount Connector Microphone Reset Power Indicator Light Power Recording Indicator Light Accessories Included Car Charger Car Mount USB Cable...
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Power off the In car dash camera. 2. Insert the Micro SD/TF card (not supplied) into the card slot. Note: Please use a high speed Micro SD/ TF card (more than class 6), the capacity should be more than 2GB. The In car dash camera can support a Micro SD/ TF card with up to 32GB of storage.
Page 6: Functions
FUNCTIONS • Date and time set - In standby mode, press the Menu button (3) twice until the heading “setup” has been highlighted. From here scroll down the list using the up button (2) and down button (4) until you highlight the heading “Date input”. Confirm your selection using the OK button (10).
Page 7 To play recorded video and audio press the OK button (10). To cycle through recorded media, press the up button (2) and down button (4) respectively. To delete saved media, press the Menu button (3) and select the “Delete” option with the OK button (10). Here you can choose to delete all media or just the one selected.
Page 8: Settings
SETTINGS In standby mode on each mode, press the menu button (3) to display an array of settings. To adjust a setting, press the Up button (2) and Down button (4) to the highlighted setting. Press the OK button (10) to confirm selected settings.
Page 9 Setup • Format - Select from “Cancel” or “Execute” to clear the current inserted Micro SD/TF memory card. • Language - Select from “English, Chinese traditional, Chinese simplified, Japanese, French, Korean, Italian, Portuguese, Russian, Spanish etc”. Note that the default language is English.
Page 10: Troubleshooting
TROUBLESHOOTING Please format the micro SD/TF Card on a The in car dash camera computer before you insert it into the in car cannot read the card. dash camera. When the in car dash camera is turned on it shows that it is at full Please recharge the in car dash camera power but after a quick for at least 2-3 hours.
Page 11: Product Specifications
PRODUCT SPECIFICATIONS Screen 3” High Resolution LCD. Video Resolution HD 1080P, 720P, VGA. Photo Resolution 3MP, 2MP, 1.3MP, VGA. Video Format AVI. Audio Format WAV. Photo Format JPEG. Supports micro SD/TF memory Storage card sizes of a minimum of 2GB up to 32GB.
Page 12: Disposal Information
DISPOSAL INFORMATION IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
