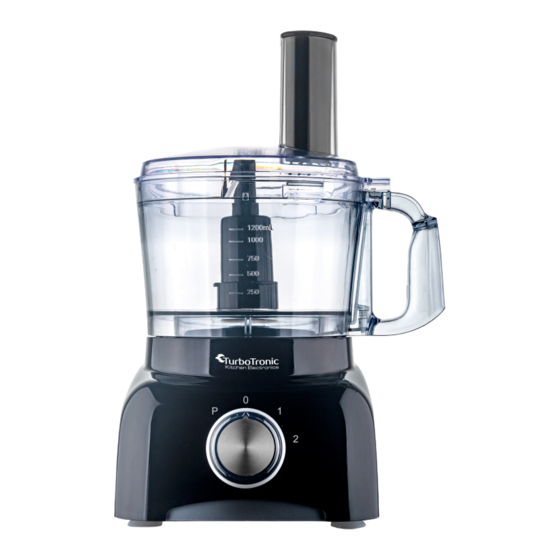

- Page 1 Instruction Manual Food Processor TT-FP800 www.zline-world.com...
- Page 2 ■ SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference. This appliance is for household use only. Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Avoid children or other people who do not know the operation of this machine to use it, unless they are under proper instruction. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Always disconnect the machine from the supply if it is left unattended and before assembling, disassembling or cleaning. If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similar qualified person in order to avoid a hazard. Keep your finger away from moving parts and fitted tools .Never put your fingers etc in hinge mechanism. Use only original spare parts. In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Do not interfere with any safety switches. Place the machine on a smooth, flat and stable working surface.
- Page 3 Be very careful when you handle the blades or inserts. Be especially careful when you remove them from machine, their cutting edges are very sharp. Wait until moving parts stop running before you remove the lid of machine. Do not exceed the maximum content indicated on the accessories. ■ BEFORE CONNECTING TO POWER Before connecting to the power, recheck the type of supply and the mains voltage match with the details given on the rating label on the appliance. Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings. ■ SAVE THESE INSTRUCTIONS ■ 2 SPEED REGULATOR & PULSE SPEED After settle down the parts you need, If you want the food processor move slowly, turn the adjustment for “1” level. If you need the food processor move fast, turn the adjustment for “2” level. Use pulse switch for a faster speed. Stop the pulse switch to stop the motor. ■ USING THE KNIFE BLADE The 2 knife blades could be the most versatile of all the attachments. For Stainless Steel Knife Blade:...
- Page 4 Before processing, cut the food into pusher size pieces. Not allow to working more than 3 min. per time, cool the motor to cool before the next operation with 30 min. at least. For coarser foods use the pulse control. Food Processing size Quantity Processing time Speed Into 4 pcs Onion 100g approx. 20-40 sec. Pulse Without skin Garlic Without skin 100g approx. 30-60 sec. Pulse Speed 2/ Carrot < 2x2 cm 100g approx. 30-60 sec. Pulse < 2x2 cm without Speed 2/ Meat 100g approx. 20-40 sec. bone Pulse For Plastic Knife Blade Not allow to working more than 2 min. per time, cool the motor to cool before the next operation with 30 min. at least. Processing Food Suggest quantity Speed time...
- Page 5 After operation, you can disassemble machine by opposite flow and direction. Only open the lid when blades completely stopped ■ USING SLICER / JULIENNE / FRENCH FRIED POTATO BLADE Please pay attention to the capacity line of container. Once the food approaches the max line on the container, please stop operation and pour out food. Switch on and push down evenly with the Pushers - never put your fingers in the feed tube. Do not work more than 3 min., Allow the motor to cool before the next operation at least 30 min. Julienne Blade...
- Page 6 Slicer Blade French Fried Potato Blade Speeds Suggest Processing Food Julienne Slicer French Fried quantity time Disc Disc Potato Disc approx. Carrot 200g Speed 1 Speed 1 N/A 30-60 sec. approx. Potato 200g N/A N/A Speed 2 30-60 sec. approx. Zucchini 200g N/A Speed 1 N/A 30-60 sec. approx. Leek 200g N/A Speed 1 N/A 30-60 sec.
- Page 7 ■ USING THE CITRUS JUICER Use this citrus juicer to squeeze the juice from citrus fruits (e.g. oranges). Pay attention to the capacity line. Once the food approaches the max line on the container, please stop operation and pour out food. Do not work more than 3 min., Allow the motor to cool before the next operation at least 30 min. To get the best performance, press the orange not only vertical by also on left or right side. Follow the flow pictured step by step to assemble machine. Ensure the bowl in step 2 and the juicer in step 3 are locked well, or the machine will not work.
- Page 8 After operation, you can disassemble machine by opposite flow and direction. Only take the juicer from the machine when the juicer is completely stopped ■ USING THE EMULSIFYING DISC Do not work more than 2 min., Allow the motor to cool before the next operation at least 30 min. Use for aioli, instant pudding, mayonnaise, whipping cream, whisking eggs, egg whites, and sponge cake mixtures. For egg white whisking, please use room temperature eggs. Please ensure the bowl and emulsifying disc is dry and free from grease. Clean the emulsifying disc after each use. Ingredients Quantity Processing time Speed Whisking cream 100 ml approx. 10-20 sec. Speed 2 Egg white 3 eggs approx. 1-3 min. Speed 2...
-
Page 9: Proper Disposal
Follow the flow pictured step by step to assemble machine. Ensure the bowl in step 2 and the lid in step 5 are locked well, or the machine will not work. After operation, you can disassemble machine by opposite flow and direction. Only take the disc from the machine when the disc is completely Stopped ■ CLEANING Before cleaning please remove the power cord from the socket. Do not immerse the housing with motor in water. Do not use any abrasive detergents. Please only use a damp to clean the outside of the housing. Components that have come into contact with food can be cleaned in soapy water. Allow the parts to dry thoroughly before reassembling the device. ■ PROPER DISPOSAL This product contains recyclable materials. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point. - Page 10 ■ TROUBLESHOOTING PROBLEM EASY SOLUTION Machine does not * There is a safety interlock switch on processing work bowl / blender. Please sure bowl and lock are securely locked into position. * If the motor still will not start, check the power cord and power outlet. French Fried * Always clear any blocked potato from the Potato Julienne chipper disc before processing more potatoes. Disk Some food remains * It is normal for small pieces to remain after on the disc after processing. processing Motor slows down * Amount of dough may exceed maximum when mixing capacity. Remove half and process in two batches. dough Dough is too dry * Running machine and add water through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl. Dough is too wet * Running machine and add flour through feed cube, 1 tablespoon at a time until dough cleans the inside of the processing bowl. Motor slow down * Amount of meat may be too much. Remove half when chopping and process in two batches. blade * For the best result, trim the meat of fat before processing.
