Electric bain-marie
Hide thumbs
Table of Contents

Advertisement

Terminal board
mA
B1
Main switch (green light)
F1
Thermostat
Pilot lamp
H1
R1
Resistances
003 - 03 - Electric bain-marie

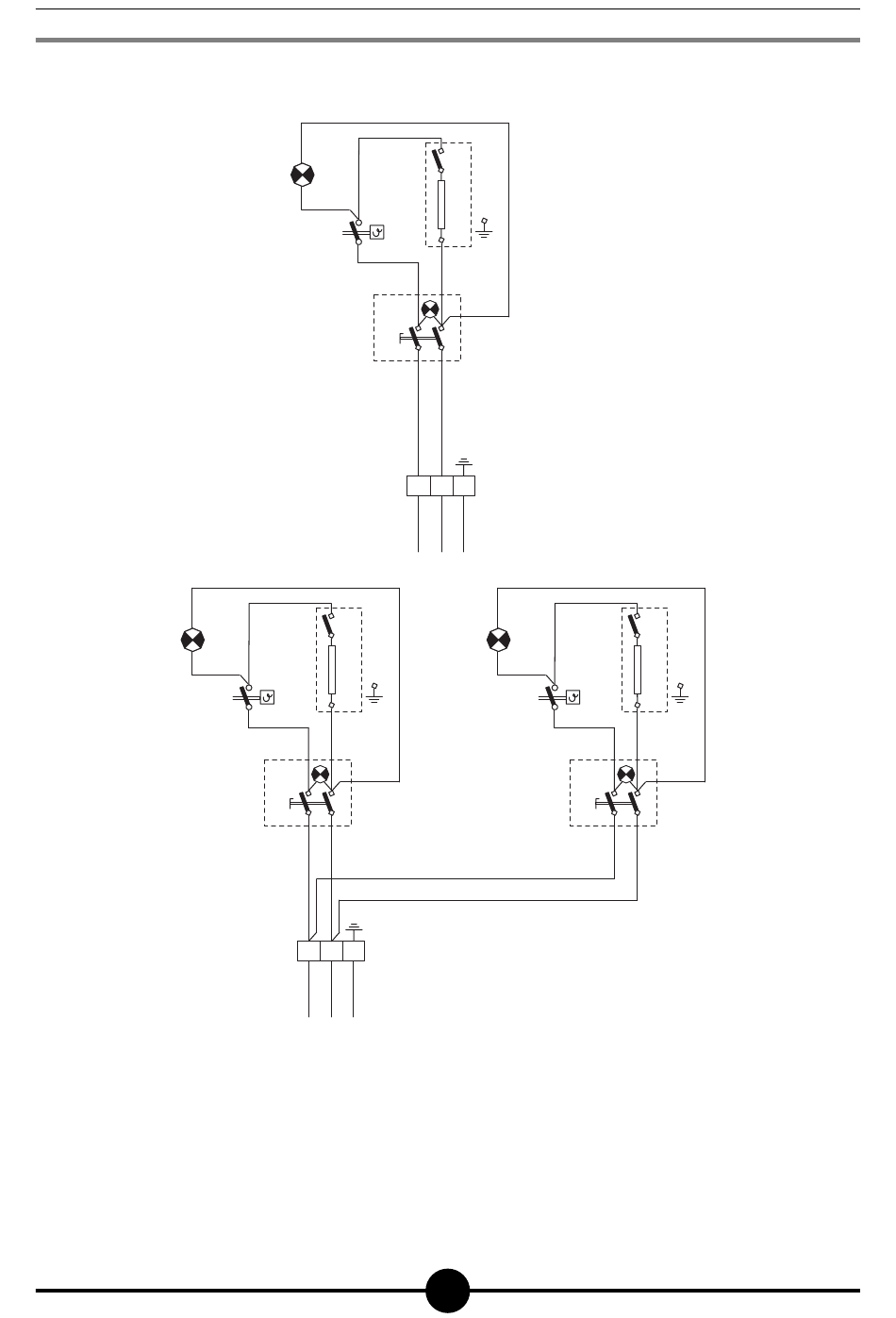

ELECTRICAL DIAGRAMS
H1
T2
H1
R1
F1
B1
1
2
3
mA
L1 N PE
T2
R1
F1
B1
1
2
3
mA
L1 N PE
H1
9
AGB 591/WP
AGB 531/WP
230 V
T2
R1
F1
B1
AGB 532/WP
230 V
