IMPORTANT INSTRUCTIONS: Read all instructions carefully & completely to become familiar with
parts, assembly, safety and proper use of this product.
may result in serious personal injury. SWIM RESPONSIBLY & SAFELY !
TOOLS REQUIRED: 7/16" socket, nut driver & wrench, measuring tape, Phillips (star) screwdriver,
1/8" + 1/4" drill bits & drill, pencil or marker, rubber mallet and a hole saw.
SAFETY INSTRUCTIONS & PROPER USE - ASSEMBLY & INSTALLATION
This pool ladder has a 300 lb load capacity - one person - when properly assembled & installed
This pool ladder is designed & intended for use with an above ground pool only and for pool
decks measuring a maximum of 60" high (from the floor of the pool to the floor of the deck)
Your pool has shallow water - absolutely NO DIVING or NO JUMPING into the pool
This product conforms to the latest revisions of the ANSI/APSP/ICC recommended standards
for above ground / on ground swimming pool ladders
For entry & exit of the pool, face ladder at all times. Utilize handrails for safe climbing
Warning: To prevent entrapment or drowning, do not swim through, behind or around ladder
Locate ladder solidly on bottom / floor of pool and free from high traffic areas on your pool
deck. Use of a ladder pad is highly recommended to protect pool liner
Ladder must be secured to pool deck for stability & safety as outlined in this assembly manual
Keep all ladder parts free from obstructions to avoid possible injury. Do not secure any items to
the ladder. Such objects (eg. thermometers, play toys, ropes) may create a potential for
tripping or entrapment
NEVER ALLOW CHILDREN TO SWIM UNATTENDED - Nothing replaces parental supervision
Assemble & install this pool ladder as per the manufacturer's instructions. Do not deviate from
these instructions

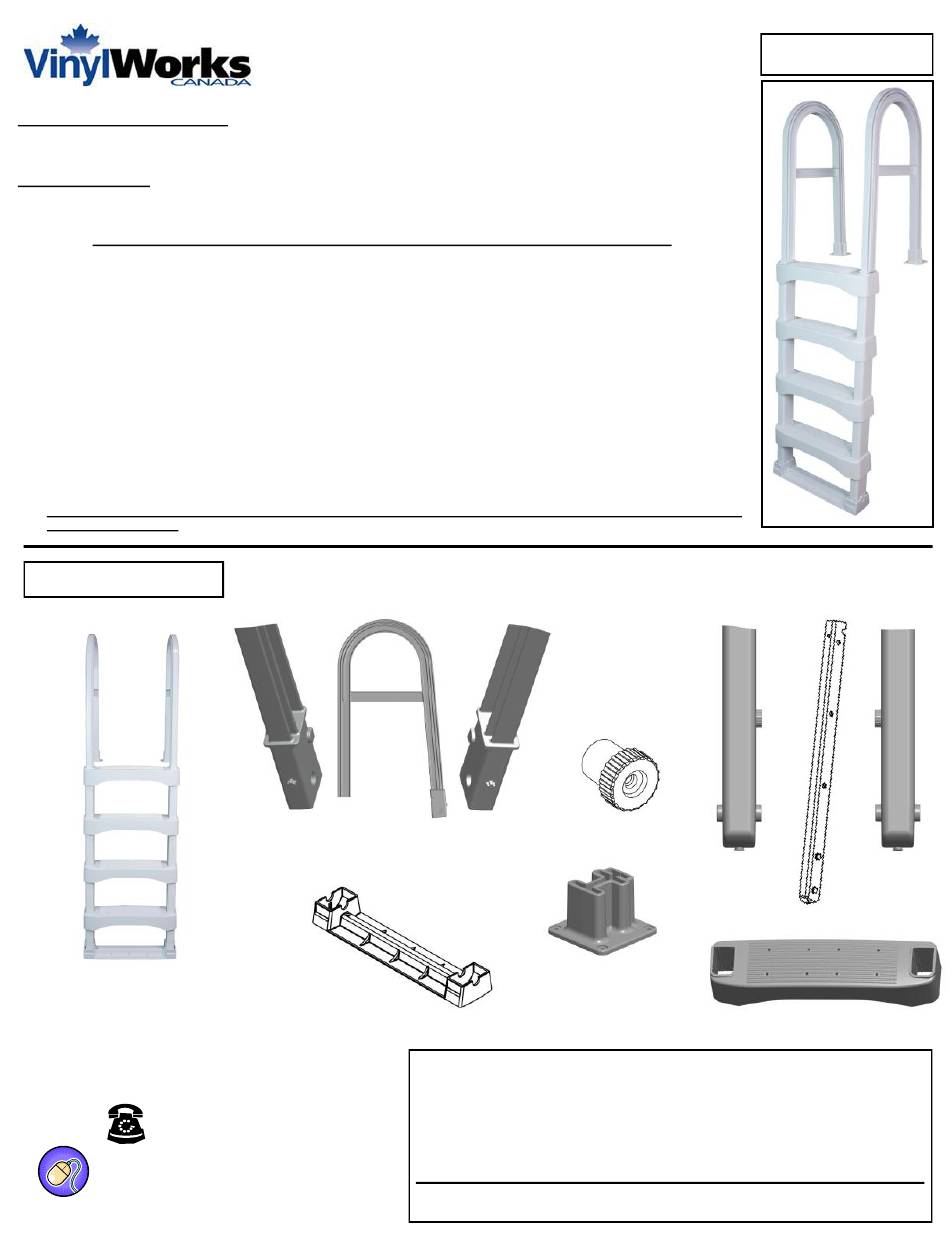

IDENTIFY PARTS
Note: for part identification
and assembly, LEFT & RIGHT
are always determined as if
you
are
facing
the
about to climb.
877-VINYL WK
www.vinylworkscanada.com
MODEL# SLD "SNAP - LOCK"
Identify all parts (ladder & hardware) to make certain you have everything and that they are
free of any damage. Contact manufacturer without delay if something is missing or damaged.
LEFT
HANDRAIL
BASE
TREAD
ladder

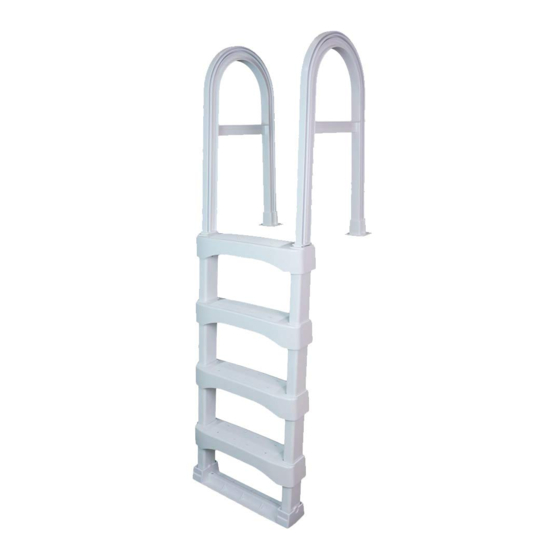

IN-POOL DECK LADDER
Failure to follow these instructions
RIGHT
HANDRAIL
MAKE CERTAIN TO READ ALL INSTRUCTIONS CAREFULLY &
IDENTIFY ALL PARTS BEFORE STARTING THE ASSEMBLY &
INSTALLATION OF THIS POOL LADDER. FOR WARRANTY
INFORMATION PLEASE VISIT OUR WEBSITE. REVIEW SAFETY
INSTRUCTIONS BEFORE USE TO PREVENT INJURY.
FOR ALL REPLACEMENT PARTS VISIT OUR WEBSITE
WWW.VINYLWORKSCANADA.COM
TREAD
LOCK PINS
x 6
LEFT
SUPPORT
LEG
DECK
MOUNT
x 2
FLANGE
MODEL # SLD
RIGHT
SUPPORT
LEG
TREADS
x 4
