Summary of Contents for sks 300097

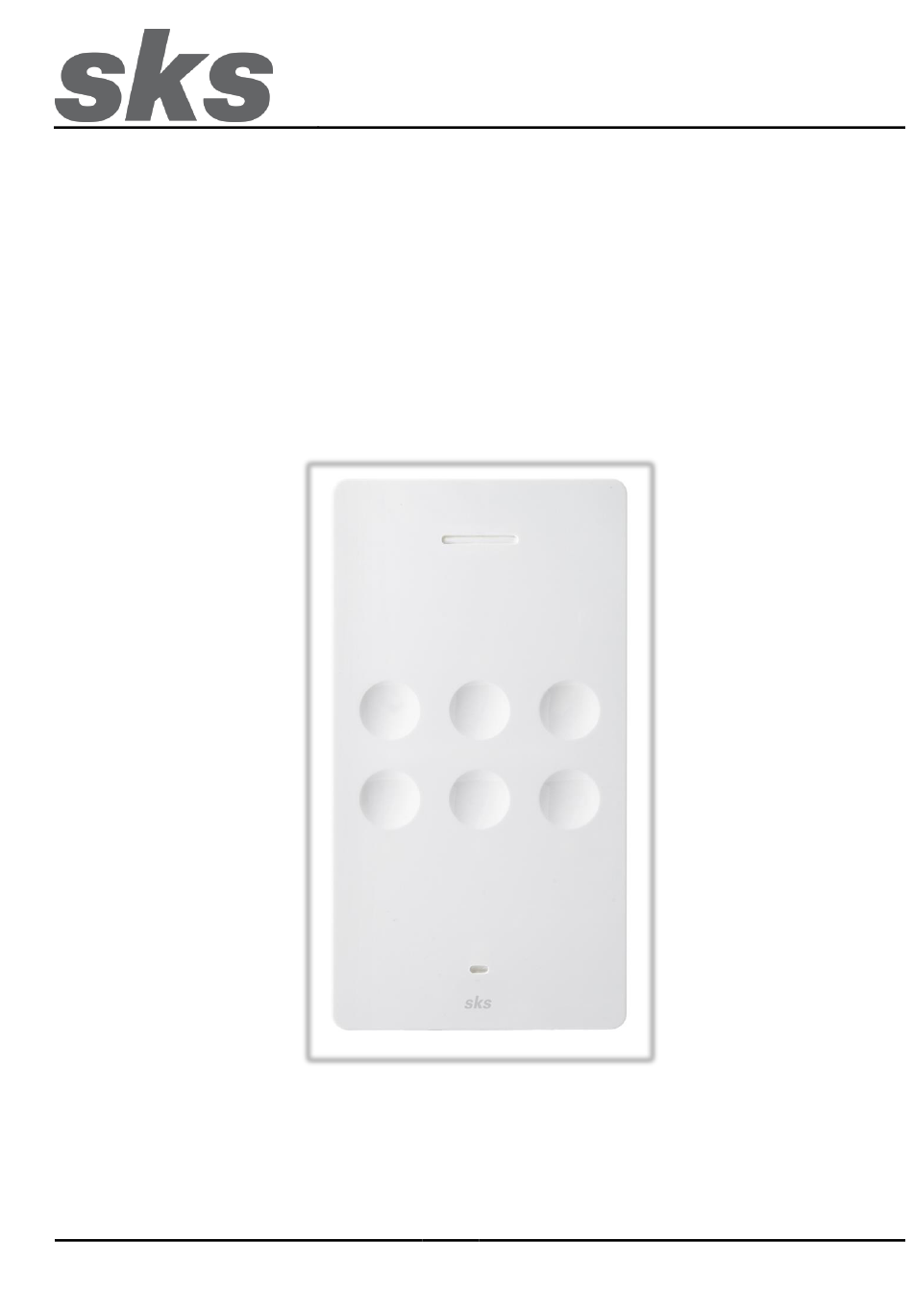

- Page 1 Installation instructions 300097 Basic additional speaker SKS-Kinkel Elektronik GmbH Version: 1.0 Support-Hotline: +49 (0) 2661-98088-112 E-Mail: support@sks-kinkel.de Document art. no. 97010500...
-
Page 2: Table Of Contents
SKS-Kinkel Elektronik GmbH 300097 Basic additional speaker Index Installation ................................3 Terminal designation ............................3 Description ................................3 Technical data ..............................3 Mounting instructions ............................4 Preparation ..............................4 Mounting an flush mounted or cavity wall box ..................... 4 Surface mounting ............................5 Disassembly .............................. -
Page 3: Installation
Positive pole speaker Description The additional speaker is connected to a previously existing indoor station. It may be able to the following SKS indoor station series: HT4500, HT4600, HTV4600, HT925, HT926, HT7105 und HT3500. Whether the indoor station is caller from the front door or the floor door there will be the ringtone at the additional speaker. -
Page 4: Mounting Instructions
SKS-Kinkel Elektronik GmbH 300097 Basic additional speaker Mounting instructions Preparation Use a screwdriver to release the additional speaker from its supporting frame. This is done by inserting the screwdriver into the release opening at the bottom of the additional speaker. -
Page 5: Surface Mounting
SKS-Kinkel Elektronik GmbH 300097 Basic additional speaker Remount the additional speaker in the upper part of the supporting frame. Subsequently press the additional speaker into the frame until it clicks into place. Surface mounting Using the screws attach the supporting frame of the 300098 BUS bell to the wall. -
Page 6: Disassembly
SKS-Kinkel Elektronik GmbH 300097 Basic additional speaker Disassembly Use a screwdriver to release the additional speaker from its supporting frame. This is done by inserting the screwdriver into the release opening at the bottom of the additional speaker. Carefully remove the additional speaker from the support frame as shown in the drawing. -
Page 7: Service
We have checked the content of this document to verify that it corresponds to the hard- and software described herein. There may, however, be deviations and SKS-Kinkel GmbH may not be held liable for a lack of conformity. The information in this document is checked regularly and necessary changes are made in subsequent issues. -
Page 8: Note
SKS-Kinkel Elektronik GmbH 300097 Basic additional speaker Notes Support-Hotline: +49 (0) 2661-98088-112 - 8 - Version: 1.0 E-Mail: support@sks-kinkel.de Document art. no. 97010500...
