Knape & Vogt Slide-Out Pot & Pan Caddy SPS27 Installation Instructions

Parts Included

A. Sliding Caddy Assembly
B. Mounting Screws
A.
B.

Tools Required

• Phillips head screwdriver
• Tape measure
• Pencil

Optional Tools

• Drill with 1/16" bit for
drilling pilot holes

Product Assemblies

SPS21
SPS27
2700 Oak Industrial Drive NE
Grand Rapids, MI 49505 USA
800.253.1561 • www.kv.com
©2010 Knape & Vogt. All rights reserved. Knape & Vogt

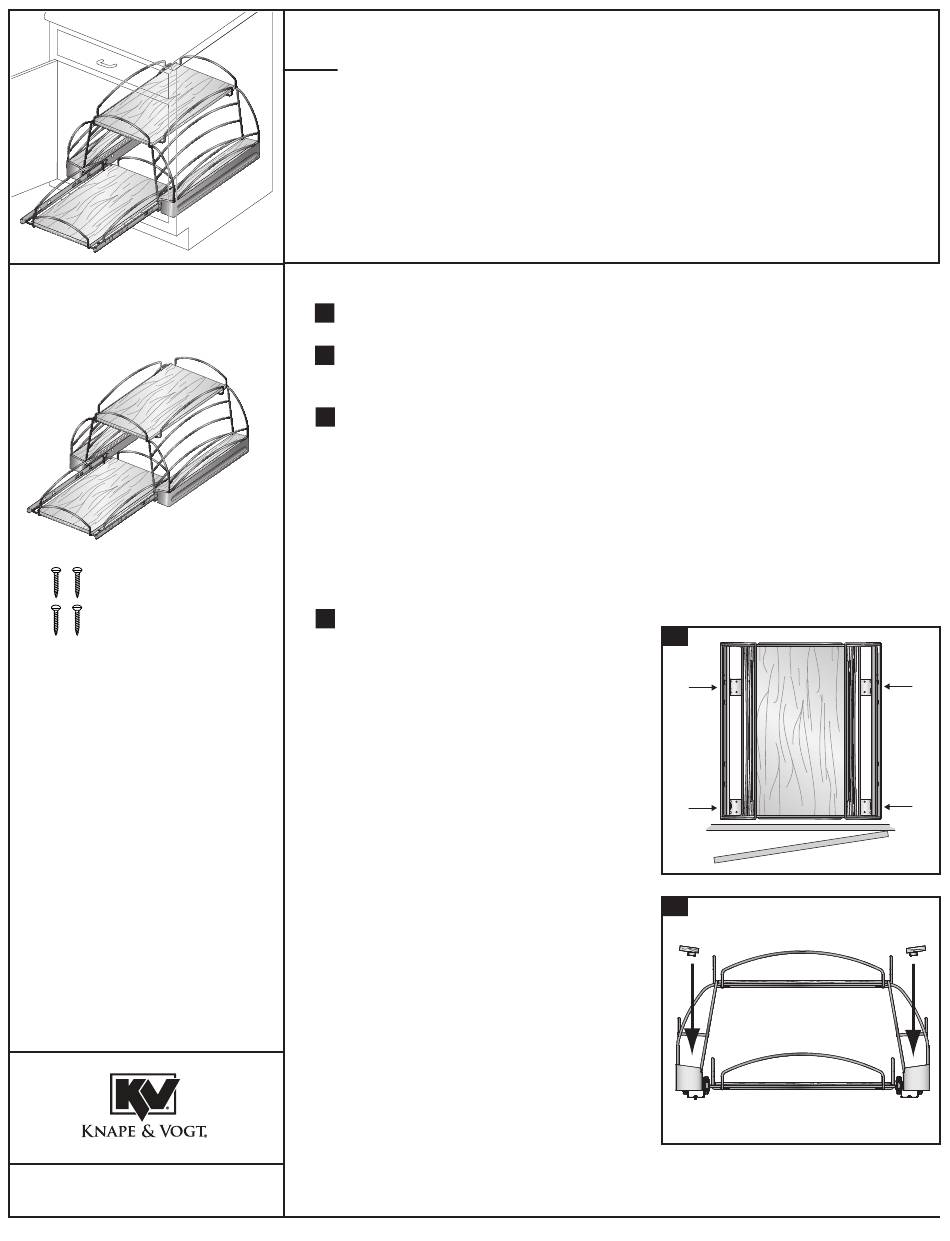

Slide-Out Pot & Pan Caddy

Installation Instructions

Inspect all parts and read all instructions prior to beginning assembly and installation.
The Slide-Out Pot & Pan Caddy is designed and intended for the storage of pots and pans.
It is not intended or designed to be used as a step stool. Top and bottom shelves are
designed to carry a maximum of 25 lbs. each. Do not overload shelves.
Inspect all parts and read all instructions prior to beginning assembly
1
and installation.
If cabinet interior has an adjustable shelf, you may want to either
2
remove the shelf or move the shelf to its highest adjustable position,
allowing room for storing items on the top shelf of the Pot & Pan Caddy.
Place sliding caddy assembly on cabinet floor, against the back edge
3
of the cabinet face frame. Be sure that the shelves slide-out towards the
cabinet door. If installing in a frameless cabinet, measure 1/2" to 3/4"
back from front of cabinet opening, and align sliding caddy assembly
parallel to cabinet opening. Close door to make sure the assembly
does not interfere with the door operation. Check that unit will clear
the door opening by carefully sliding top shelf through cabinet frame
opening no more than 2". Note: At this point, the Pot & Pan Caddy is
not secured to cabinet floor, so use caution when extending the shelf
towards the cabinet opening as both the top and bottom shelves can
slide independently.
Once position and clearance is
4
determined, return top shelf to it's
closed position. Locate the front
and rear mounting brackets (4A).
(For ease of installation, one extra
mounting hole location is provided
per bracket.) Fasten each front
bracket with one supplied screw and
the Phillips head screwdriver. Repeat
this process for the two rear brackets.
Remove the narrow side wood
shelves from packaging. With the
clips toward the bottom, push each
shelf down into position until you
hear a "click" (4B).

Optional Step

Mark placement of mounting holes
with a pencil, carefully remove
sliding caddy assembly and drill pilot
holes for fastening screws. Place
sliding base assembly back into
position and fasten with the supplied
screws.
Installation is now complete.
