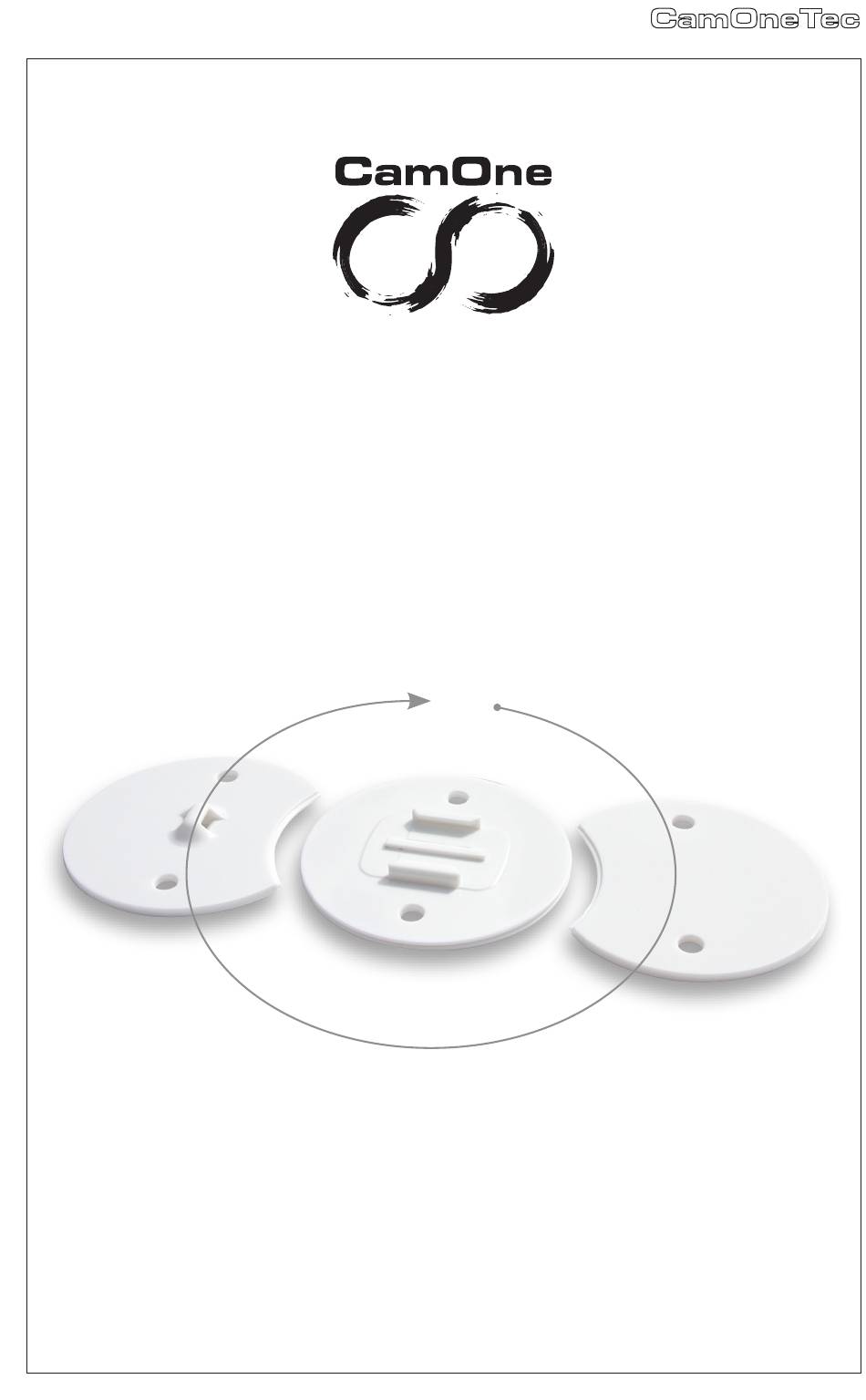

  • Page 1 turn on video & images Surf Mount 360° Anleitung Manual...
  • Page 2 turn on video & images Lieferumfang Überprüfen Sie die Vollständigkeit, bevor Sie das Surf Mount Set montieren. » Platte A, B und C » 1 Sicherungsband mit Gewinde für die DiveBox » 2 Klebepads mit Aussparungen für die Platten A und C »...
  • Page 3 turn on video & images Einsatzbereiche [1] – Die Verwendung des Moosgummi- Pads bietet Ihnen die Möglichkeit, Platte B des Surf Mount Sets und somit die Kamera um 360° zu drehen. So kann auch während der Aufnahme geschwenkt werden. 360° [2] –...
  • Page 4 turn on video & images Vorbereitung bei Verkleben Entscheiden Sie zuerst, wie Sie das Surf Mount Set verwenden möchten. Um Platte B als drehbares Element verwenden zu können, folgen Sie bitte den Schritten 2 – 7. Möchten Sie die Platten B und C fest auf dem Board verkleben, folgen Sie bitte den Schritten 8 –...
  • Page 5 turn on video & images Kleben Sie nun Platte A auf das Board, stecken Sie anschließend Platte B mit der Nut an die Führung von Platte A. Befestigen Sie nun Platte C auf dem Board – achten Sie auch hier Befestigen Sie das Moosgummi-Pad auf wieder darauf, dass Nut und Führung Platte B des Surf Mounts.
  • Page 6: Technische Daten

    turn on video & images Technische Daten Durchmesser: 100 mm, je Platte Gesamtlänge (Platte A+B+C) 260 mm Gewicht: 131 g, inkl. Verpackung Material: Kunststoff Zubehör Art.-Nr.: Artikel FCHD02 4260033049520 FlyCamOne HD externer Bildschirm 2,5 Zoll (63,5 mm) FCHD03 4260033049537 FlyCamOne HD 5.8 GHz Video Transmission Set COIN08 4260033041975 CamOne infinity Ersatzakku LiPo 3,7 V 800mAh...
  • Page 7: Gewährleistung & Garantie

    » Soweit kein Garantiefall vorliegt, behält sich CamOneTec vor, dem Kunden den Austausch, die Reparatur oder die Versandkosten in Rechnung zu stellen. Der Kunde wird hierüber vorab informiert. Service & Support CamOneTec by ACME CamOneTec by ACME (ab Oktober 2012) Industriestr. 10a Boikweg 24 33397 Rietberg 33129 Delbrück...
  • Page 8 turn on video & images Content Please check whether the set is complete before using the Surf Mount 360°. » Plates A, B and C » 1 safety band with thread for the DiveBox » 2 adhesive pads with notches for plates A and C »...
  • Page 9: Range Of Use

    turn on video & images Range of use [1] – Using the foam rubber pad enables you to turn plate A, and thus the camera, by 360°. That way, you can pan while filming. 360° [2] – To securely stick the Surf Mount Set to the board, use plates B and C.
  • Page 10 turn on video & images Preparations First, decide on how you want to use the Surf Mount Set. In order to use plate B as a rotatable element follow steps 2 – 7. If you intend to stick plates B and C to the board follow steps 8 –...
  • Page 11 turn on video & images Now, stick plate A to the board. Attach plate B’s groove to plate A’s tongue. Afterwards, stick plate C to the board – make sure, that tongue and groove are tightly connected in order to prevent Stick the foam rubber pad onto plate B.
  • Page 12: Technical Data

    turn on video & images Technical data Diameter: 100 mm each plate Total length (plate A+B+C) 260 mm Weight: 131 g, incl. packaging Material: plastics Accessories Art.-Nr.: Article COIN08 4260033041975 CamOne infinity Battery LiPo 3,7 V 800mAh COIN10 4260033041968 CamOne infinity LinX Digital Video-System 2,4 GHz COIN11 4260033041975 CamOne infinity DiveBox...
  • Page 13: Safety Advice

    2004/108/EC. A copy of the original declaration of conformity can be obtained at the address below. Service & Support from October 2012 CamOneTec by ACME CamOneTec by ACME Industriestr. 10a Boikweg 24 33397 Rietberg 33129 Delbrück...
  • Page 14 CamOneTec.com...
