Evolvere Eugenio User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
user guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Eugenio and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolvere Eugenio

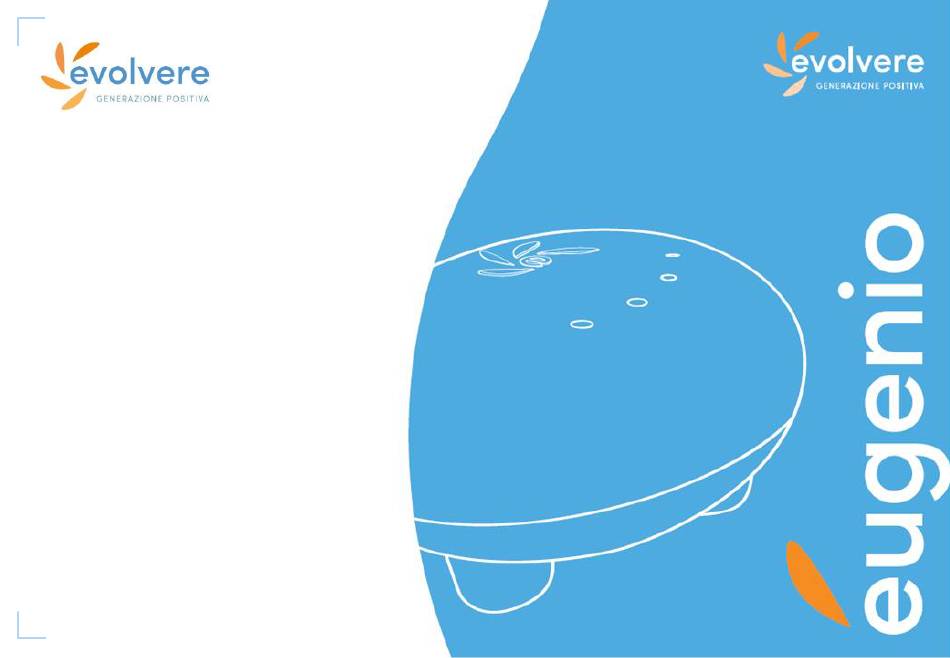

  • Page 1 user guide...
  • Page 2 Part 1 INTRODUCTION...
  • Page 3 USER GUIDE This User Guide shows you the domotic system developed by Evolvere and It will assists you Eugenio is the system in every step: the very first configuration of the Gateway, the association of smart devices, the building of automation scenarios and the remote control of your home.
  • Page 4 EUGENIO AND THE APP Eugenio is an innovative Home Gateway Manager (HGM) which interacts with Z-Wave devices. It can be controlled and configured by means of a smartphone APP, which permits to configure Wireless Connection of Smart automations for your home.
  • Page 5 YOUR DOMOTIC SYSTEM The wireless technology which empowers Eugenio and smart devices permits to make the home smarter, easily and quickly. No more cables! Anytime, Eugenio let you add new Create the Domotic System sensors or actuator to enhance the possibilities of control of the home.

  • Page 6: Application Scenarios

    APPLICATION SCENARIOS Eugenio can: remotely control the states of associated devices create scenarios and rules, based on custom daily needs detect and transmit notifications about anomalies and alarms read electrical loads and state change of devices...

  • Page 7: Preferred Device

    PREFERRED DEVICE Eugenio can communicate with a large set of devices, from different vendors and of different types. The compatible set of devices follows. Eugenio can interacte with multi brand devices Smart metering Temperatura Lighting movimento Access control Smoke...
  • Page 8 HELP DESK The domotic system envisioned by Evolvere is simple to install, configure Evolvere Customer and use. Follow the instructions of this Manual, and use the contact information to Service is at your side ask support to our Customer Service.
  • Page 9 Part 2 INSTRUCTIONS AND ADVICES...

  • Page 10: About Safety

    Eugenio Eugenio is è Gateway which generates and uses radio frequencies. The device has beend implemented by means of state-of-the-art technologies and by adhering to currnt government regulations safety. However, the interaction with other devices is not totally excluded during the operation live of the Gateway.
  • Page 11 ▪ Keep children out of the Gateway usage ▪ Do not open the device. In case of anomalies, please contact the Customer Service of Evolvere. ▪ Disconnect the power adapter before cleaning operations. Do not use liquids for cleaning. Use a simple rag.
  • Page 12 Instruction and advices REQUIREMENTS ENVIROMENT REQUIREMENTS • Ambient dust can damage the device. • Do not use the device upon not-flat surfaces, such as sofas, beds, and so on. The ground surface must be stable and flat. • Do not use the device within areas with risk of explosion or fire. •...
  • Page 13 Instruction and advices RECYCLING INFO FOR ITALIAN USERS Ai sensi dell’art. 13 del decreto legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettrice ed elettroniche, nonché allo smaltimento dei rifiuti” Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti.
  • Page 14 Part 3 CONFIGURATION...
  • Page 15 DESCRIPTION Eugenio kit contains the gateway and the power adapter On the top of the case of Eugenio there are 4 leds: Turns on when the gateway is powered on. It starts blinking when the gateway is POWER going to power off WI-FI Turns on when the gateway communicates with the Cloud.
  • Page 16 This button allows the power on/off and reboot of This button allows manual operation on The button allows the following functions. Eugenio: the Z-Wave network, useful in case of - Factory reset : a long press for more than 10 unavailability of the software APP.

  • Page 17: External Ports

    ETHERNET RJ45 PORT MICRO USB PORT This is the power supply port. Eugenio can be used also without a WiFi connection. This port connect the gateway to the local LAN. WARNING! If you change the type of connection (WiFi or Ethernet) Eugenio tries to restart Internet connection and the service could be unavailable for some second.
  • Page 18 ACTIVATE YOUR GATEWAY 1. Connect Eugenio to the power adapter. The POWER ON/OFF LED will turn on. Few steps to activate your 2. If you have not a WiFI connection, connect the gateway by means of the RJ45 cable to your LAN.
  • Page 19 Click on ‘Procedi’ Scan the QR code placed on the buttom of the chassis of Eugenio Type in your Client Code, your email, password Check your e-mail: Eugenio has sent you the access info and the token to validate your e-mail...
  • Page 20 Connect your smartphone the WiFi access point with SSID SENTINEL AP. The required password is admin_ap Tback to the App, now configure the WiFi Access Point to be used by the gateway from now and click on ‘CONNETTI’ NOW THE CONFIGURATION IS COMPLETED! YOU CAN ENJOY USING EUGENIO!
  • Page 21 METEO: weather forecast and external air quality measures TERMOSTATO: digital and connected thermostat that let you manage home heating CHECK UP ENERGETICO: energy check-up service to help you saving energy MAGAZINE: all the news of Evolvere magazine SUPPORTO TECNICO: help desk contact...
  • Page 22 Parte 4 YOUR ENVIRONMENTS...
  • Page 23 environment CONFIGURATION OF ENVIRONMENTS OF THE HOME 1. From home page or section ‘Ambienti’ click on + to add an environment 2. Choose a name for your environment and click on continua Create environments for 3. Choose a template, then click on + to add devices to the environment every place of your home 4.
  • Page 24 environment ADD A NEW DEVICE FROM MULTIPLE MANUFACTURERS (1/2) 1. From section ‘Ambienti’ chose one environment and click on ‘modifica’ 2. Clicca on + to add a device to your environment Add devices to your 3. To add one of the devices already included select it from the list and click on ‘Aggiungi’ environment...
  • Page 25 4. Wait for the confirmation message in the App, then rename your device and click on ‘ASSOCIA’ EXAMPLE To add the Motion Sensor Fibaro: 1. Click on ‘Nuovo’ 2. Eugenio will be in inclusion mode 3. Click 3 times the B-button 4. The App will confirm you the inclusion...
  • Page 26 environment REMOVE A DEVICE FROM THE Z-WAVE NETWORK 1. Select the device you want to remove from the Z-Wave network from the section ‘Ambienti’ How to remove a device 2. Clic on ‘Elimina Dispositivo’ to start the procedure on controller 3.
  • Page 27 The LED turns off when the procedure ends. You can add devices without Press the Z-Wave button for at least 6 seconds. The Z-Wave LED turns on and Eugenio is in the the App listening state for removing device.
  • Page 28 Parte 5 YOUR MOMENTS...
  • Page 29 Your moments MOMENTS AND RULES You can create different Moments for your day, in order to activate set of rules with a single Rules for automation, click. Moments for any of your With the rules you define the interaction among your device and set the duration needs EXAMPLE devices...
  • Page 30 your moments ADD A MOMENT From home page or from the section ‘Momenti’: 1. Click on ‘aggiungi momento’ Create moments for every 2. Rename the moment and click on ‘continua’ daily need 3. Click on ‘Aggiungi regola’ to create an automation rule If you want to create a rules indipendent from the moments (always active) click on ‘Sempre’...
  • Page 31 Your moments CRATE A RULE 1. Click on ‘crea nuova’ (or select ‘seleziona esistente’ if you want to use a rules already created) 2. Choose what you want to happen (COSA): Define what you want and 3. Choose when you want It to happen (QUANDO): always or when a condition occurs, or when a condition occurs but only with a certain duration or in a defined period when you want it! 4.
  • Page 32 Your moments ACTIVATE A MOMENT From home page or from section ‘Momenti’: 1. Clickon the moment you want to activate Choose what moment 2. Confirm the activation activate during your day 3. The moment icon become green (active moment) Non activated moment Activated momet...
  • Page 33 Parte 6 APPENDIX...
  • Page 34 The gateway accepts most of Z-Wave Command Classes: Sensor Multilevel V5 Thermostat Mode V1 Thermostat Setpoint V1 Wake-Up V2 Device security, S0 or S2? The latest Z-Wave devices are implemented with a new security level, called S2, which Eugenio controller supports.
  • Page 35 - you must connect a PC to the LAN the GW is runnning within; - start a web browser at the address https://sentinel.local:3000 If everything is fine, you will land into the login page. Use your Eugenio account to enter the Configurazione server...
  • Page 36 appendix Z-WAVE MANAGEMENT OPERATIONS (LIST OF NODES) Go to the section Z-Wave. You will find a group of buttons which permit management operations, such as showing the devices included in your network or inclusion/Exclusion of controller.

  • Page 37: Z-Wave Learn Mode

    Here are the steps both to include the controller into an existing Z-Wave and to receive network information from another Z-Wave controller: 1. Go to the Z-Wave section and click on Learn mode button. 2. On the second controller, start the add node procedure. If you are using another Eugenio/HGM: a. Access the Configuration server of the 2nd Eugenio b.
  • Page 38 1. Go to the Z-Wave section and click on “Aggiungi” button (Add) after the insertion of DSK of second controller (if provided). 2. On the second controller, start Learn Mode procedure. If you are using another Eugenio/HGM: a. Access the Configuration server of the 2nd Eugenio b.
  • Page 39 appendix Z-WAVE NETWORK AND NODE UPDATE These operations are useful to update network topology or to update a single node by adding its ID in the network...
  • Page 40 appendix Z-WAVE HEALING There are circumstances where you want to heal the network, e.g. by correcting routing misbehaviour or solving problems related to devices apparently not responding to commands. To understand if a Z-Wave network is working well, just launch an Health Check operation. After that, you can decide the action to perform on Z-Wave nodes...
  • Page 41 appendix Z-WAVE SUBSTITUTION OF NODE There are circumstances where some Node/Device does not respond anymore to the Controller. Such nodes are called Failed nodes. You can include an identical new node as substitute of the failed one. Just insert the ID of the failed node (and its DSK if supported) and press Sostituisci (Substitute). Then insert the new device and start the inclusion process.
  • Page 42 appendix Z-WAVE FACTORY RESET To reset Z-Wave controller you need to access the Z-Wave section and click the "Reset" button Before resetting! If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network.
