- User Manual - Wireless DMX Moving Head Transceiver V4.1a.doc -
I.
Introduction
Wireless DMX Transceiver is proprietary system to provide the wireless network communication
(peer-to-peer or peer-to-many) for DMX512 devices and systems. The 2.4GHz broadcasting function allows
the DMX console to send the DMX512 commands to the DMX512 device simultaneously. The Wireless DMX
Transceiver can be set to be transmitter or receiver. The data length and the sampling frequency can be
adjusted. The communication frequency for RF transmission can also be adjusted in order to prevent the
interference problem. It is a wireless, user friendly, plug and play system for all DMX applications in order to
reduce the installation cost and effort.
II.
Description
Product Features:
1.
DMX-512 communication for DMX console and Moving Head
2.
One-to-Many wireless communication between DMX console Transceiver and Moving Head
Transceivers
3.
Wireless DMX Transceiver is interference-free from other wireless devices in the 2.45 GHz
band such as W-LAN and Bluetooth
4.
Wireless DMX Transceiver uses Direct Sequence Spread Spectrum and there are 16 frequency
channels for wireless DMX transceiver to set the transmission frequency and receiving
frequency.
9/27/2007
June 14, 2007
Sengital Limited

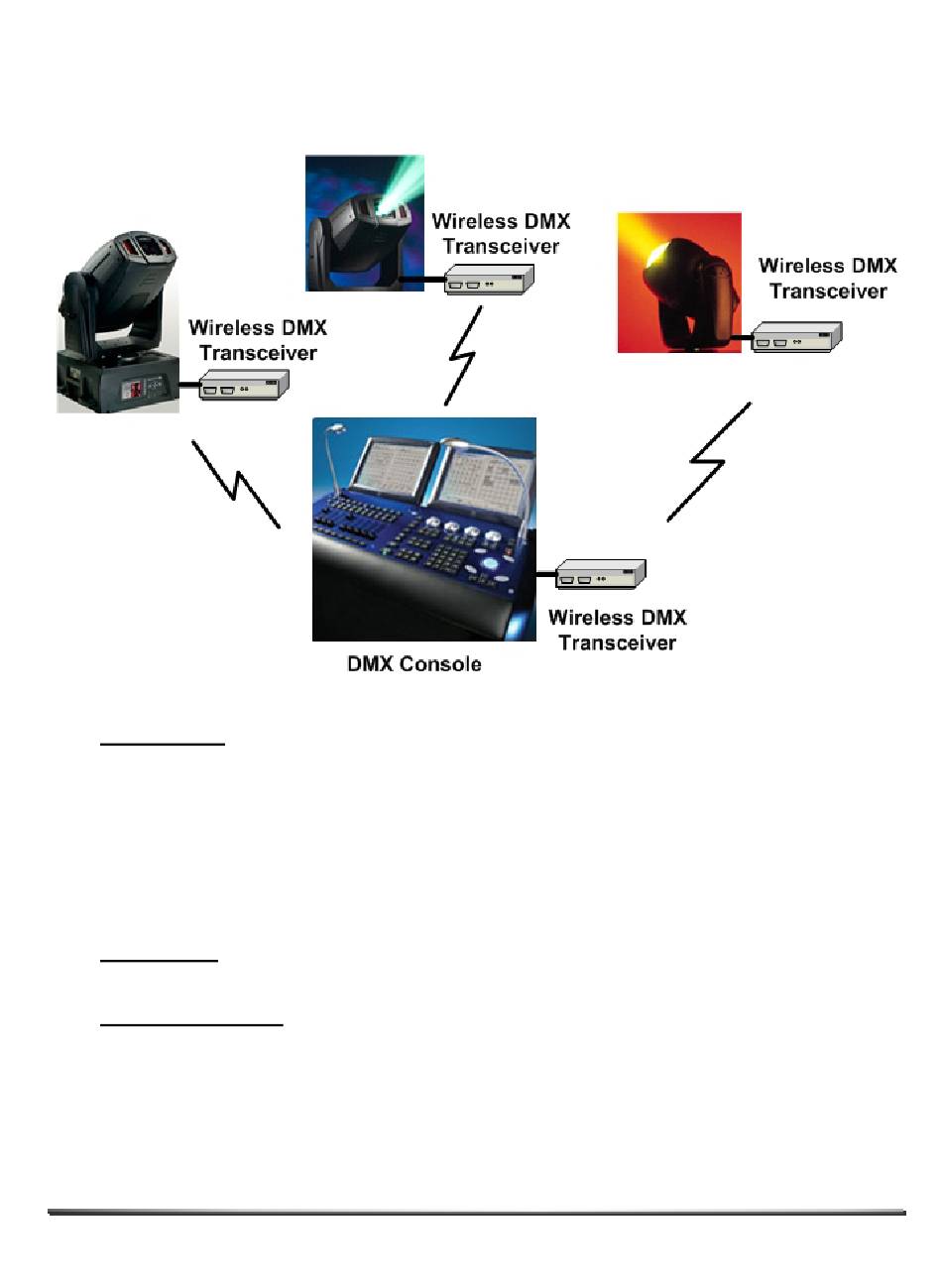

Figure 1: Wireless DMX Transceiver Network
- User Manual - Wireless DMX Moving Head Transceiver V4.1a.doc -
Advertisement
Table of Contents
Summary of Contents for MC Crypt DMX 512 FUNK
- Page 1 (Druckfehler und Irrtümer bei technischen Angaben und technischen Änderungen vorbehalten.) - User Manual - Wireless DMX Moving Head Transceiver V4.1a.doc - June 14, 2007 Sengital Limited Figure 1: Wireless DMX Transceiver Network Introduction Wireless DMX Transceiver is proprietary system to provide the wireless network communication (peer-to-peer or peer-to-many) for DMX512 devices and systems.
- Page 2 The communication distance between DMX Console Transceiver and Moving Head Transceiver is around 20m to 30m line-of-sight. One DMX Transmitter (TX) supports up to 512 DMX channels (one universe) in the same 2.4GHz frequency channel. Up to 16 DMX universes (8192 DMX channels) can be controlled at the same time when all the 2.4GHz frequency channels (16 frequency channels) are occupied.
-
Page 3: Setting Of Frequency
Setting of Frequency: The Wireless DMX Transceiver allows you to select up to 16 transmission frequencies in order to prevent the interference problem. The Dip switch setting is in binary digit. The most LEFT hand side is LSB (least significant bit) and the most RIGHT hand side is MSB (most significant bit). Put the switch up to set the digit to 1 and down to set the digital to 0 Figure 4: Top view of Wireless DMX Transceiver –... - Page 4 Setting of Data length / Sampling rate: Figure 5: Top view of Wireless DMX Transceiver – Selection of Data Rate The Wireless DMX Transceiver provides four different data rates (5Hz, 6Hz, 9Hz and 13Hz) for different data length requirement. More data will offer less data rate. The setting is similar to the frequency setting in binary.
-
Page 5: Setup Of The System
commands to the DMX512 device simultaneously. No inconsistent between the receivers and DMX devices. Setup of the system: 1. Install the device on a plane surface. Plug the power unit into the socket. Figure 6: Side view of Wireless DMX Transceiver – Connection to power Figure 7: Connection of the Wireless DMX Transceiver 9/27/2007 - User Manual - Wireless DMX Moving Head Transceiver V4.1a.doc -... - Page 6 The standard AC/DC transformer is included and allows the power cord to connect the system to the AC power source. The power source will supply the power to the moving head and the AC/DC transformer which drive the DC power to the wireless DMX Transceiver.
- Page 7 DMX connector for input and output: With the POWER-switch, you can switch the device on and off. The Power LED will be ON. The Status LED will be flashed when the RF signal is receiving or transmitting. Figure 10: Top view of Wireless DMX Transceiver – Status LED 9/27/2007 - User Manual - Wireless DMX Moving Head Transceiver V4.1a.doc -...
-
Page 8: Specification
III. Specification: Indoor/Urban Range 20m ~ 30m Wireless DMX Data Rate 13312bps ~ 20480bps RF Data Rate 250,000 bps Performance 128bytes DMX data 13Hz (set data/sec) Sampling 256bytes DMX data 9Hz (set data/sec) Frequency 384bytes DMX data 6Hz (set data/sec) 512bytes DMX data 5Hz (set data/sec) Power... -
Page 9: Additional User Information
Additional User Information: In locations subject to radio frequency interference, the communication link may be disturbed but the link can recover itself. Avoid locating the transmitter near a strong radio interference source such as radio towers. Separate the collection of electrical and electronic equipment 9/27/2007 - User Manual - Wireless DMX Moving Head Transceiver V4.1a.doc -...
