Summary of Contents for Riedel NSA-002A
- Page 1 NSA-002A User Manual...
- Page 2 © January 2019 Riedel Communications GmbH & Co. KG. ALL RIGHTS RESERVED. UNDER THE COPYRIGHT LAWS, THIS MANUAL MAY NOT BE COPIED, IN WHOLE OR IN PART, WITHOUT THE WRITTEN CONSENT OF RIEDEL. EVERY EFFORT HAS BEEN MADE TO ENSURE THAT THE INFORMATION IN THIS MANUAL IS ACCURATE. RIEDEL IS NOT RESPONSIBLE FOR PRINTING OR...
-
Page 3: Table Of Contents
NSA-002A User Manual A00 CONTENT Preface Information .............................. 5 Safety Instructions ........................... 6 About NSA-002A Product Elements ............................ 8 Status LEDs ............................... 9 Ports / Pinouts ............................10 Getting started Mounting Options ..........................12 Connecting Interfaces ........................... 12 Powering the Unit ..........................13 Operation Mode ............................ -
Page 4: Preface
This manual, as well as the software and any examples contained herein are provided “as is” and are subject to change without notice. The content of this manual is for informational purpose only and should not be construed as a commitment by Riedel Communications GmbH &... -
Page 5: Information
NSA-002A User Manual A00 1.1 Information Symbols The following tables are used to indicate hazards and provide cautionary information in relation to the handling and use of the equipment. Danger Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 6: Safety Instructions
To reduce the risk of electric shock do not remove cover or expose the products to rain or moisture. Service · All service has to be undertaken only by qualified Riedel service personnel. · Do not plug in, turn on or attempt to operate an obviously damaged device. ·... - Page 7 NSA-002A User Manual A00 Disposal Disposal of old Electrical & Electric Equipment (Applicable throughout the European Union and other European countries with separate collection programs). This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it.
-
Page 8: About Nsa-002A

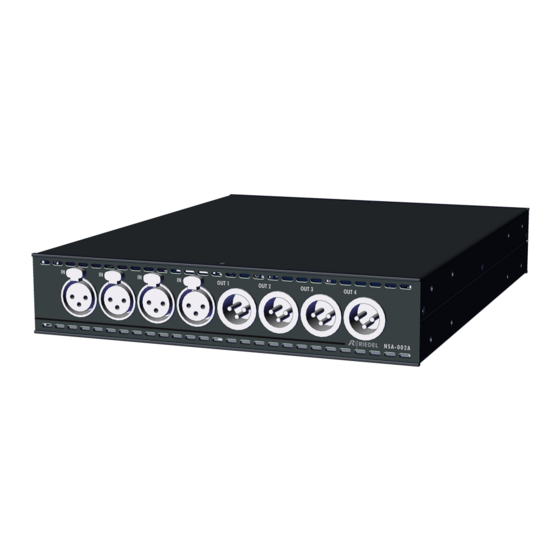

NSA-002A User Manual A00 2 About NSA-002A The NSA-002A (Network-Steam-Adapter) is a device to convert analog audio signals to AES67 and vice versa. That means analog audio sources can be integrated into AES67 networks. The power can be supplied by mains and via the AES67 network if it supports PoE functionality. -
Page 9: Status Leds
NSA-002A User Manual A00 2.2 Status LEDs Device mode blue Bolero mode (plug-and-play mode for Bolero wireless intercom (top) systems) violet Manual mode State Bolero green Connection OK (middle) plug & play mode · green blinking Synchronization errors. (This may happen during the first 5 min.) -
Page 10: Ports / Pinouts
NSA-002A User Manual A00 2.3 Ports / Pinouts In this chapter all Ports / Pinouts of the NSA-002A are shown. Analog IN & Analog OUT Port The analog inputs and outputs have following pinouts. PUSH Signal Hot (+) Cold (-) - Page 11 The "GPIO +5V" output voltage drops when increasing the load: 5V @ 0mA / 3.3V @ 50mA. ETH / PoE – ports The AES67 ports are used to connect the AES67 network to the NSA-002A. The AES67 ports are 1000Base-T compatible only.
-
Page 12: Getting Started
NSA-002A User Manual A00 3 Getting started 3.1 Mounting Options Two mounting options are available for the NSA-002A: Bumper SPK-001 (Stagebox Protection Kit) Rugged rubber corners to place or stack single devices. figure 9: bumper-assembly Rack-Mount RMK-001 (19" Rack Mount Kit) -
Page 13: Powering The Unit
NSA-002A User Manual A00 3.3 Powering the Unit The NSA can be powered in two ways: a) Via PoE, that is attached to one 'ETH' port. b) Via mains, that is attached to the mains input. Both power sources can be attached simultaneously for redundancy reasons. -
Page 14: Operation Mode
· Connect a NSA-002A direct or via switch to the AES67/Config port of the Bolero Antenna. · One additional NSA-002A may daisy chained via the internal switch if the NSA-002A is directly connected to a Bolero Antenna. · Max. twice as many NSA-002A as Bolero Antennas in a network. - Page 15 NSA-002A User Manual A00 Manual-Mode The Manual mode is used to easily adapt analog audio signals into any AES67 networks. · Standalone operation as AES67 to analog converter · Configuration via web interface · Internal switch for daisy chaining ·...
-
Page 16: Web Interface
NSA-002A User Manual A00 4 Web Interface The NSA-002A has no static IP address. The IP address can be determined by a Zeroconf browser (i.e. Riedel- NMOS-Explorer, see chapter Riedel-NMOS-Explorer in the appendix). To access the NSA-002As web interface, open a web browser on your computer and point it to the IP address of the NSA-002A. -
Page 17: Stream Consumer
NSA-002A User Manual A00 4.1 Stream consumer The tab Stream consumer allows configuring up to six streams to be received at the NSA-002A. Accepted are Ravenna streams, Dante-AES67 streams and manual configured streams via SDP. Each of the six XLR audio channels are configured in one "Channel". Hence, each interface is able to receive six different streams or a stream consisting of six channels is distributed to the six interfaces. -
Page 18: Stream Provider
4.2 Stream provider The tab Stream provide allows configuring the stream to be transmitted. The stream contains six channels with the signals of the analog XLR inputs 1-6. figure 19: NSA-002A web interface "Stream provider" Stream name Name of the streams. -
Page 19: General Settings
NSA-002A User Manual A00 4.3 General settings The tab General settings allows setting and reading of IP parameters and general device configurations. figure 20: NSA-002A web interface "General settings" Network Device name Name of the device. configuration IP address DHCP The IP configuration is obtained from a DHCP server. -
Page 20: Advanced
NSA-002A User Manual A00 4.4 Advanced The tab Advanced allows configuring PTP, SIP and SAP configurations. figure 21: NSA-002A web interface "Advanced" State Shows the PTP-state, grandmaster and the current clock offset. Domain Allows entering a PTP-domain. Prefered master Sets the PTP-priority 1 and 2 to "20". -
Page 21: Appendix
NSA-002A User Manual A00 5 Appendix 5.1 Technical Drawing figure 22: NSA-002A (top) figure 23: NSA-002A (side) -
Page 22: Technical Specifications
NSA-002A User Manual A00 5.2 Technical Specifications Type NSA-002A (Network Stream Adapter) Amount of analog breakouts 6x input, 6x output Analog audio line input/output balanced Nom. input/output level +6 dBu Max. input/output level +24 dBu Input impedance 10 kΩ Output impedance <200 Ω... -
Page 23: Riedel-Nmos-Explorer
Limit the amount of results by entering 'http' in the field 'Service Type' and 'NSA' in the field 'Service Name'. 3. Click on the magnifier. All found devices will be listed. The NSAs announce themselves with the name "Riedel- NSA-002A-xx-xx-xx". The last three places represents the NSA's MAC address. -
Page 24: Service
Repair Your primary point of contact for any service issues is your local dealer. In addition, Riedel Customer Service in Wuppertal, Germany is also available to assist you. Telephone: +49 (0) 202 292 9400 (Monday - Friday, 8am – 5pm, Central European Time) -
Page 25: Notes
NSA-002A User Manual A00 5.5 Notes... -
Page 26: Index
NSA-002A User Manual A00 Index - N - Name - A - Network configuration NMOS-Explorer About NSA Notes Activate NSA-001D (Technical Drawing) Advanced NSA-001D (Technical Specifications) AES67-GbE port Analog IN & Analog OUT Port - O - Audio configuration Operation Mode... - Page 27 NSA-002A User Manual A00 Stream name Stream provider Sub-D-9 female Sub-D-9 male Switching Power GPI OUT port Symbols Syntonized mode - T - Technical Drawing (NSA-001D) Technical Specifications (NSA-001D) Telephone Trainings - U - Use automatic configuration - V -...
- Page 28 Riedel Communications GmbH & Co. KG Uellendahler Str. 353 42109 Wuppertal Germany www.riedel.net...
