POWER 571
Manuale di istruzione, uso e manutenzione
Instruction and maintenance manual
Notice d'instructions, d'utilisation et d'entretien
Manual de instrucciones, uso y mantenimiento
Betriebsanleitung
Handleiding voor bediening, gebruik en onderhoud
.
Z 258 rev. C
MOTTURA S.p.A.
Via XXV Luglio, 1 - 10090 - San Giusto Canavese (To) - Italia
Tel. (0039) 0124.49.49.49 - Fax (0039) 0124.49.49.18
Internet: www.mottura.com – E-mail: mottura@mottura.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER 571 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mottura POWER 571

Summary of Contents for Mottura POWER 571

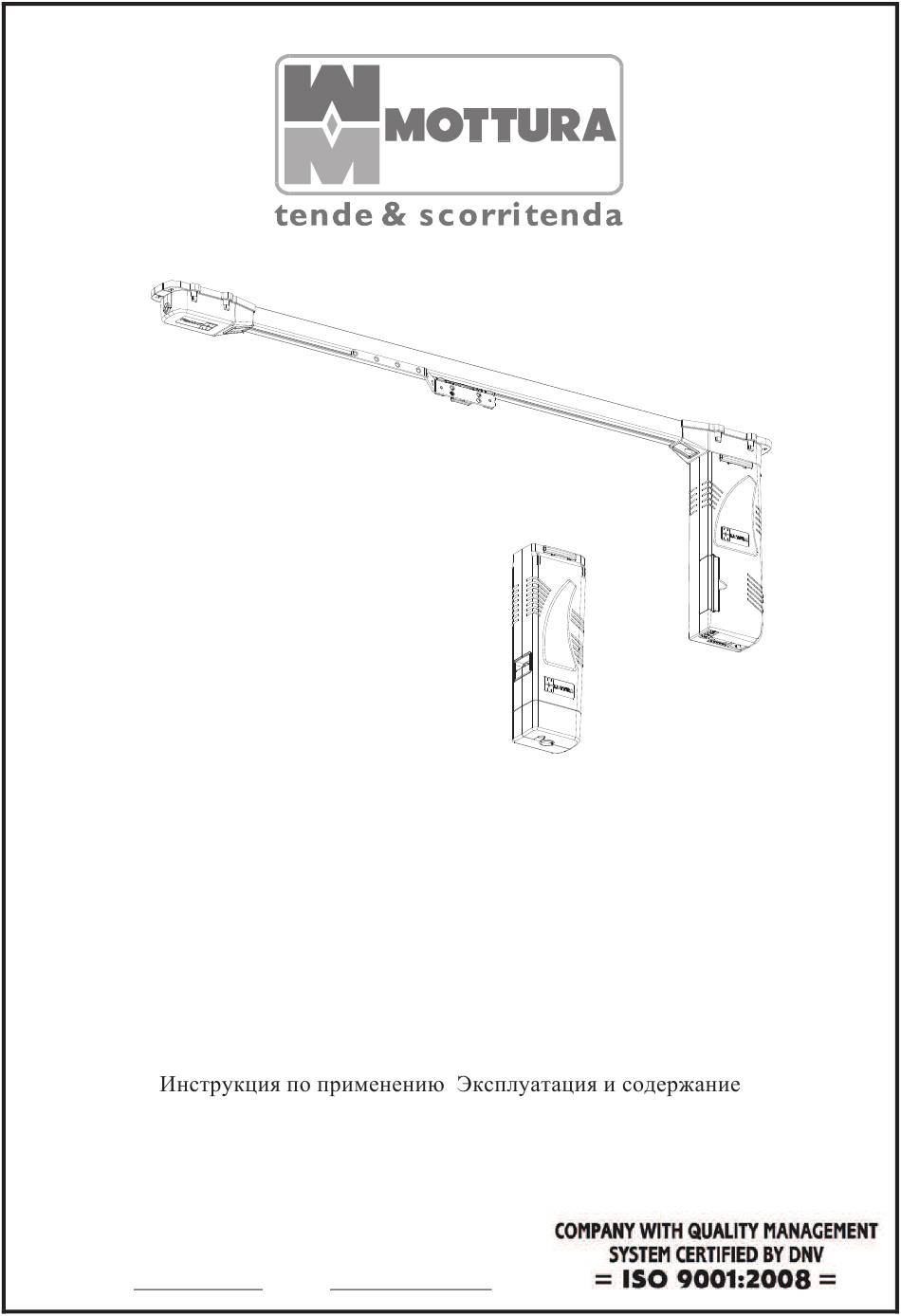

  • Page 1 Manual de instrucciones, uso y mantenimiento Betriebsanleitung Handleiding voor bediening, gebruik en onderhoud Z 258 rev. C MOTTURA S.p.A. Via XXV Luglio, 1 - 10090 - San Giusto Canavese (To) - Italia Tel. (0039) 0124.49.49.49 - Fax (0039) 0124.49.49.18 Internet: www.mottura.com – E-mail: mottura@mottura.com...

  • Page 2: Table Of Contents

    The Power 571/1 is operated by a 24 Vdc gear motor with encoder, controlled by a circuit board equipped with switching power supply, control logic and integrated two-way R. F. receiver. The Power 571/2 is operated by a 230 Vac, 50 Hz gear motor (on request 110 Vac, 60 Hz) with electromechanical limit switch.

  • Page 3: Intended Use

    (Power 571/1 = tension 110 - 230 Vac and frequency 50 - 60 Hz; Power 571/2 = tension 230 Vac and frequency 50 Hz; see “Electrical connections” section), a structure that is strong enough to support the weight of the system and the stress to which it is subjected and room temperature between + 10°...

  • Page 4: Electrical Connections

    Power 571/1 The motor group on the Power 571/1 system is factory set. Before it can be used, the limit stop setting procedure has to be run (when switched on, LEDs 1 and 2 on the motor control panel start flashing).

  • Page 5: Setting The Limit Switches Manually

    If it is found necessary to reverse the positions of the “Fully Open” and “Fully Closed” limit switches, proceeds as follows. 1. Press the RESET button and, within 5 seconds, press simultaneously buttons 1 and 2. 2. After 5 seconds a double flash of the RESET, 1 and 2 Leds will signal that reversal has taken place.

  • Page 6: Assigning An R. F. Radio Receiver

    Power 571/2 Setting limit switches manually The factory setting for the Power 571/2 system motor unit is such that a certain travel value is in any case set (see attachment “M”). During the manual limit switch setting procedure, the motor rotation speed is the nominal value.

  • Page 7: Removing The Motor

    If the installation requires the Power 571/2 to be supplied with power from: a control box a radio receiver a Home and Building Automation unit the calibration procedure should not be carried out using these pieces of equipment because they have self-retention commands instead of impulse types (this could cause irreparable damage to the system).
  • Page 14 De montage van de producten van Mottura S.p.A. moet verricht worden door ervaren en vakkundig personeel. Mottura S.p.A. kan niet aansprakelijk worden geacht voor eventuele schade die kan voortvloeien uit of op enige wijze verband houdt met het bezit of het gebruik van het product door de klant.
  • Page 15 Mottura S.p.A. Via XXV Luglio, 1 - 10090 San Giusto Canavese (To) - Italy Tel. (0039) 0124.494949 - Fax. (0039) 0124.494918 Internet: www.mottura.com E-Mail: mottura@mottura.com Prodotti conformi alle Direttive: 2006/95/CE “Bassa Tensione”, 2004/108/CE “Compatibilità Elettromagnetica”, 1995/5/CE “R&TTE” (ove prevista) Products complying with the Directives: 2006/95/EC “Low Voltage”, 2004/108/EC “Electromagnetic Compatibility”, 1995/5/EC “R&TTE”...
  • Page 16 POWER 571 Manuale di istruzione, uso e manutenzione POWER 571 Instruction and maintenance manual POWER 571 Notice d’instructions, d’utilisation et d’entretien POWER 571 Manual de instrucciones, uso y mantenimiento POWER 571 Betriebsanleitung POWER 571 Handleiding voor bediening, gebruik en onderhoud POWER 571 MOTTURA S.p.A.
