MAKSIWA CP/2.C Owner's Operating Manual

Dust collector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

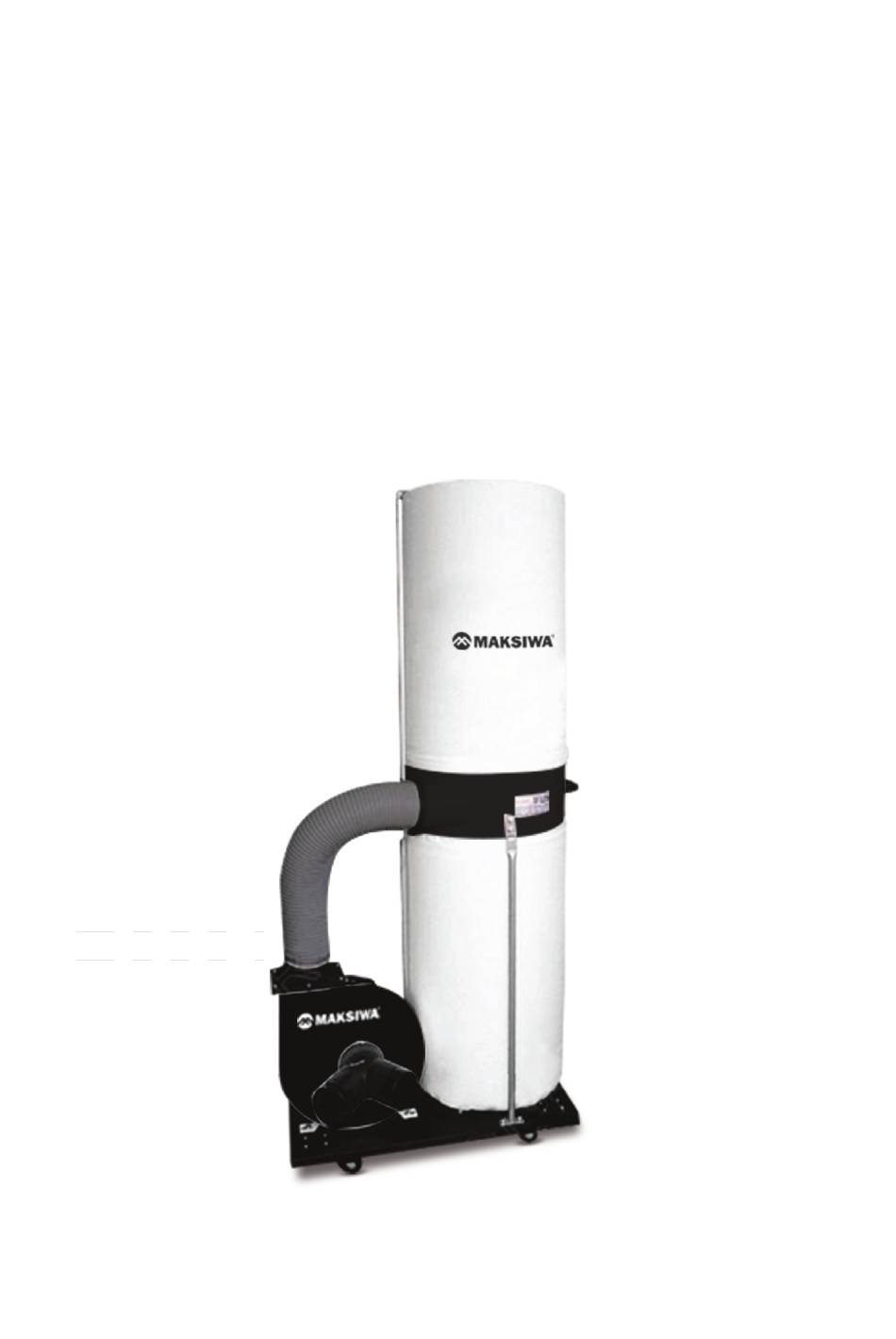

OWNER'S OPERATING MANUAL
CP/2.C
DUST COLLECTOR
1101

Advertisement

Table of Contents
loading

Related Manuals for MAKSIWA CP/2.C

Summary of Contents for MAKSIWA CP/2.C

  • Page 1 OWNER’S OPERATING MANUAL CP/2.C DUST COLLECTOR 1101...

  • Page 2: Table Of Contents

    CONTENTS TECHNICAL DATA……………………………………………………………….1 UNPACKING AND CHECKING CONTENTS………………………………….2 ASSEMBLY………………………………………………………………………..3 SAFETY RULES………………………………………………………………….9 WIRING DIAGRAM……………………………………………………………...10 PARTS DIAGRAM FOR FM300………………………………………………..11 PARTS LIST FOR FM300………………………………………………………12...

  • Page 3: Technical Data

    CP/2.C TECHNICAL DATA Motor power (Watt) 1500 Inlet diameter (mm) 1-125/2-100 Fan diameter (mm) Bag capacity (cubic meter) 0.15 Collection capacity (CFM) 1790 Overall size (LWH)(MM) 850x560x1860 Weight (kgs)

  • Page 4: Unpacking And Checking Contents

    UNPACKING AND CHECKING CONTENTS Unpack carton, check machine, to see parts listed below: A. HOSE COLLECTOR BODY & FAN/MOTOR ASSEMBLY C. COLLECTOR D. BASE PLATE E. UPPER BAG SUPPORT F. SUPPORT G. INLET H. TWO BAGS I. PACKING J. FOUR CASTERS K.

  • Page 5: Assembly

    ASSEMBLY TO ASSEMBLY, FIRST PLACE THE BASE PLATE UPSIDE DOWN AND ATTACH THE FOUR CASTERS TO THE HOLES PROVIDED AND TOGHTEN WITH THE WRENCH. FIG.1 WITH THE COLLECTOR BODY & FAN/MOTOR ASSEMBLY IN PLACE, SECURE IT TO THE BASE PLATE USING THE SCREWS AND WASHERS PROVIDED AS SHOWN IN FIG.2.
  • Page 6 NEXT, MOUNT THE OUTLET , PACKING(I) TO THE COLLECTOR BODY AS SHOWN IN FIG.3 AND FIG. 4.
  • Page 7 THE COLLECTOR SUPPORT CAN BE MOUNTED TO THE BASE PLATE AS SHOWN FIG.5. NOW ATTACH THE COLLECTOR TO THE TWO COLLECTOR SUPPORTS MAKING SURE THE SIDE HOLE IN FACING THE COLLECTOR BODY AS SHOWN IN FIG.6.

  • Page 8: Upper Bag Support

    AT THIS TIME THE UPPER BAG SUPPORT BE INSTALLED ONTO THE COLLECTOR SUPPORT AS SHOWN IN FIG.7. NOW ATTACH ONE END OF THE HOSE TO THE COLLECTOR BODY AND THE OTHER END TO THE SIDE HOLE OF THE COLLECTOR AND SECURE WITH THE TWO HOSE CLAMPS AS SHOWN IN FIG.8.
  • Page 9 PLACE THE COLLECTOR AND FILTER BAGS ONTO THE COLLECTOR AND SECURE WITH THE BELTS AS SHOWN IN FIG.9. AFTER THE BAGS ARE SECURED, THE UPPER BAG SHOULD BE HANG FROM THE UPPER BAG SUPPORT AS IN FIG.9. THE INLET CAN NOW BE PLACED ON THE INTAKE HOLE OF THE FAN/MOTOR ASSEMBLY AS SHOWN...
  • Page 10 THE DUST COLLECTOR IS NOW READY TO BE PLACED INTO SERVICE. BEFORE CONNECTING TO A POWER SOURCE, BE SURE THE POWER SOURCE IS PROPERLY GROUNDED AND IS OF PROPER VOLTAGE AND AMPERAGE.

  • Page 11: Safety Rules

    SAFETY RULES 1. Read and become familiar with the entire operating manual. 2.Keep guards and cover in place and in working order. 3.Wear eye protection at all times. Use safety glasses with side shields or safety goggles, meeting the national safety standards, while operating this machine.

  • Page 12: Wiring Diagram

    WIRE DIAGRAM:(SINGEL PHASE) WIRE DIAGRAM:(THREE PHASE)

  • Page 13: Parts Diagram For Fm300

    CP/2.C PARTS DIAGRAM...

  • Page 14: Parts List For Fm300

    CP/2.C PARTS LIST DESCRIPTI ON QTY NO. DESCRIPTION 1 Caster 26 Screw Hex 2 Nut 27 Washer 3 Base Plate 29 Packing 4 Washer 30 Outlet 5 Motor Base 31 Hose Clamp 6 Screw Hex 32 Hose 8 Motor 33 Collector...
