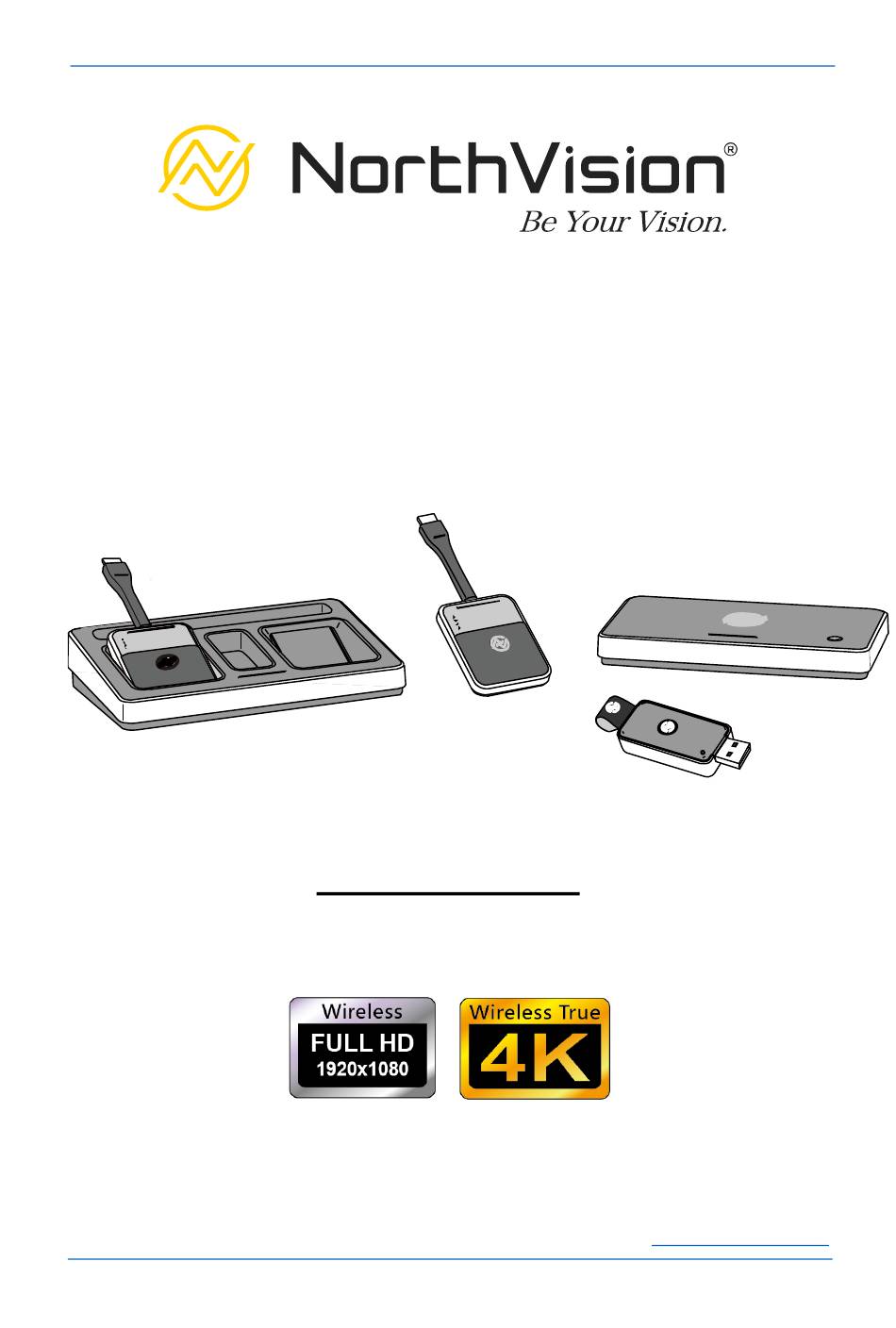

- Page 1 User Manual: VisionShare Series VisionShare Series Wireless Collaboration System User Manual A20 / A30 / A40 / A45 Ver. 1.0 2018 © NorthVision Technology Inc. All Rights Reserved. www.northvision.com...
-
Page 2: Table Of Contents
User Manual: VisionShare Series Contents DISCLAIMERS ............... 1 WARRANTY ................2 SAFETY NOTIFICATIONS ............4 FEATURES ................7 WHAT IS IN THE PACKAGE ............ 8 A. PRODUCT DESCRIPTION ..........9 Transmitter -------------------------------------------------------------- 9 Receiver----------------------------------------------------------------- 10 Power Station --------------------------------------------------------- 11 USB Wireless Touch Dongle (A30 / A45 ONLY) --------------- 12 Universal Power Adapter Set ------------------------------------- 13 B. - Page 3 User Manual: VisionShare Series C. APPENDIX ..............26 Charge Your Transmitter ------------------------------------------- 26 Receiver Installation------------------------------------------------- 27 2.1 Wall Mount installation ............27 2.2 Secondary HDMI Output ............28 Configure Your Collaboration System --------------------------- 29 3.1 Device Name (Device ID) ............30 3.2 Clock Setting ................
-
Page 4: Disclaimers
Further, NorthVision Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of NorthVision Corporation to notify any person of such revision or changes. -
Page 5: Warranty
User Manual: VisionShare Series Warranty NorthVision warrants the equipment it manufactures to be free from defects in material and workmanship. The procedures presented in this document apply to all NorthVision’s VisionShare Series products. All NorthVision brand products purchased by Distributor will receive... - Page 6 However, NorthVision assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will NorthVision be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
-
Page 7: Safety Notifications
User Manual: VisionShare Series Safety Notifications Read the instruction manual carefully before use and save it. Use only parts or accessories, (especially power adapters), recommended by the manufacturer. Unapproved parts may be hazardous and cause injures to the product or users, and will void the warranty. - Page 8 User Manual: VisionShare Series Do not use or leave the battery at very high temperature conditions (for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire or its performance will be degenerated and its service life will be decreased.
- Page 9 User Manual: VisionShare Series Important Safety Notifications Do not expose the product to liquids or moisture, such as a bathtub, a washbowl, a kitchen sink, a laundry tub, and a swimming pool. Do not expose the product, including the devices and ...
-
Page 10: Features
User Manual: VisionShare Series Features Wireless Collaboration Solution Perfect Combination with Touch Display For Conference Room HDMI Plug & PLAY Near Zero Latency No WiFi Interference Compatible with all HDMI Cable-like experience by Free from 2.4GHz and connectivity. Intuitive instant transmission 5GHz WiFi signal True Plug &... -
Page 11: What Is In The Package
User Manual: VisionShare Series What is in the package Power Station Transmitter Receiver Mini DP to HDMI HDMI Cable Micro USB Cable Adapter Universal Power Adapter Quick Installation Set x 2 Guide USB Wireless Touch Touch USB Cable* Dongle* (Type A to Type B) -
Page 12: Product Description
User Manual: VisionShare Series A. Product Description Transmitter HDMI Connector Status Indicator Battery Indicators Play / Pause Button Auxiliary HDMI Power Input Connector (Micro USB) First Time Battery Charge: Charge the transmitters for six (6) hours before first-time use. -
Page 13: Receiver
User Manual: VisionShare Series 2. Receiver Power Button Status Indicator Power Button Touch Pairing Keyboard / Mouse Reset USB / Touch DC IN (5V / 4A) ... -
Page 14: Power Station
User Manual: VisionShare Series 3. Power Station Micro USB Cable Slot Status Indicator Transmitter Transmitter Recharge Recharge Slot Slot USB Wireless Touch Dongle Slot DC IN... -
Page 15: Usb Wireless Touch Dongle (A30 / A45 Only)
User Manual: VisionShare Series 4. USB Wireless Touch Dongle (A30 / A45 ONLY) Status Indicator Control Button... -
Page 16: Universal Power Adapter Set
User Manual: VisionShare Series 5. Universal Power Adapter Set US Plug Adapter EU Plug Adapter Power Adapter Change the Plug Adapter To install the plug adapter: Click!! To detach the plug adapter: Snap-In Latch Note: Make sure the plug adapter is firmly installed before plugging the power adapter to the power outlet. -
Page 17: Establish Your Collaboration System
User Manual: VisionShare Series B. Establish Your Collaboration System Connect the Receiver Connect the power adapter to the power outlet and Receiver. Connect the cable of HDMI to the Receiver and display device. Display Device HDMI AUDIO Audio Cable Touch USB Cable... -
Page 18: Connect The Transmitter
User Manual: VisionShare Series Connect the Transmitter Connect the Transmitter to the laptop or PC. HDMI Transmitter The Transmitter flashes RED and then turns BLUE to search for the Receiver. Flash Static LED Indicator... -
Page 19: Display Port Adapter
User Manual: VisionShare Series Display Port Adapter You can use the HDMI to Display Port (DP) adapter and connect to the display port. Other adapters and dongles may be used but NorthVision is unable to guarantee their performance. miniDP to HDMI Adapter Display... -
Page 20: Establish The Connection
User Manual: VisionShare Series Establish the Connection Press the power button on the Receiver. Power Button The Receiver flashes RED and flash BLUE to sync to the Transmitter. LED Indicator Flash Flash Once the pairing of Transmitter and Receiver is established, the indicators of the Transmitter and Receiver show static BLUE light and are ready for presentation. -
Page 21: Start Your Presentation
User Manual: VisionShare Series Start Your Presentation Display Device Receiver Transmitter Laptop or PC Start the Presentation Press the PLAY button of the transmitter to start the presentation. The status LED indicator of Receiver and Transmitter show static GREEN while the presentation is in progress. -
Page 22: Pause The Presentation
User Manual: VisionShare Series Pause the Presentation Display Device Receiver Transmitter Laptop or PC Press the PLAY/PAUSE button of the Transmitter to pause the presentation. The LED indicator turns to BLUE as the presentation is paused. LED Indicator BLUE Press (PAUSE) -
Page 23: Standby Mode
User Manual: VisionShare Series Standby Mode The receiver may switch to standby mode automatically. (Please refer to Power Setting at setting page for further instruction). Power Button (Flashing) Receiver Press the power button to wake up the receiver. Power Button... -
Page 24: Switching Your Presentation Sources
User Manual: VisionShare Series Switching Your Presentation Sources Display Device Receiver Laptop 1 Laptop 2 Press the PLAY button of Transmitter 1 or Transmitter 2 to switch the presentation sources (laptop 1 or laptop 2). Handshaking takes a few seconds, and then the displayed image will switch. -
Page 25: Wireless Touch (A30 / A45 Only)
User Manual: VisionShare Series Wireless Touch (A30 / A45 ONLY) VisionShare with touch display allows bi-directional wireless touch functions, with full control back to the PC/laptop simultaneously. Touch Display Receiver Transmitter USB Wireless Touch Dongle Laptop * Wireless Touch function may have compatibility issue cause by different panel touch drive. -
Page 26: Connect The Receiver
User Manual: VisionShare Series Connect the Receiver Make sure the Transmitter and Receiver are connected and the collaboration system is established. Make sure the touch USB cable is connected to the touch display properly. Touch Display HDMI USB Touch AUDIO... -
Page 27: Connect And Initiate The Wireless Touch Dongle
User Manual: VisionShare Series Connect and Initiate the Wireless Touch Dongle Connector the USB wireless touch dongle to the USB port of the laptop or PC. Press the control button on the touch dongle to activate the wireless touch function. - Page 28 User Manual: VisionShare Series VisionShare touch provides bi-directional control back to the PC or laptop. Using the touch display you may open files, writing, resize the image, etc. from your PC or laptop. Touch Display Touch Pop-Up! Laptop / PC...
-
Page 29: Appendix
User Manual: VisionShare Series C. Appendix 1. Charge Your Transmitter Place the power station on the designated location (e.g. conference table). Connect the power adapter set to the charging dock and power outlet. Place the transmitters in the slots of power station. -
Page 30: Receiver Installation
User Manual: VisionShare Series 2. Receiver Installation Wall Mount installation You can install the receiver onto a wall or ceiling. To install the Receiver on the wall: Use two wall-plugs and screws and install to the location. There are two hook slots in the bottom of receiver. -
Page 31: Secondary Hdmi Output
User Manual: VisionShare Series Wall Mount Opening of Receiver (Bottom) Secondary HDMI Output Secondary Display Display Device Device (Projector) HDMI Cable Receiver HDMI 2 HDMI 1 DC IN Power Adapter Power Outlet... -
Page 32: Configure Your Collaboration System
User Manual: VisionShare Series 3. Configure Your Collaboration System Click the setting icon (red marker) to configure the VisionShare system settings such as Device Name (Device ID), Clock Setting, Background, Power Setting, Connection and System:... -
Page 33: Device Name (Device Id)
User Manual: VisionShare Series Device Name (Device ID) Each device is assigned an exclusive ID (name) for management. => Type the name of the device. => Click “SAVE” to confirm. -
Page 34: Clock Setting
User Manual: VisionShare Series Clock Setting Setting the local time manually for the device. => Click ”+”, “-“ and “AM/PM” to set the proper local time. => Click “SAVE” to confirm. -
Page 35: Background
User Manual: VisionShare Series Background Click on the red marker to import and select the background image via USB drive for your device. => Select the image. => Click “SAVE” to confirm. -
Page 36: Power Setting
User Manual: VisionShare Series Power Setting Setting a timer to standby mode if the device is not functioning during the designate time. => Click “On” to activate the standby mode. => Select the timer (countdown time). => Click “SAVE” to confirm. -
Page 37: Connection
User Manual: VisionShare Series Connection IP address will show on the screen automatically after plug in LAN cable. => Or, please click “Ethernet” button to set “DHCP” or “Static IP” manually. => Or, please click “Others” to set to other settings. -
Page 38: System
User Manual: VisionShare Series System To configure the basic function on the device, include “Resolution”; “Language”; “Factory Reset” and “Advance” function. - Page 39 User Manual: VisionShare Series Resolution Resolution: adjust the aspect ratio screen scale, display interface, HDMI resolution and video screen size. Various resolutions can be selected.
- Page 40 User Manual: VisionShare Series Language Language: language setting of the device.
- Page 41 User Manual: VisionShare Series Factory Reset Factory Reset: restore the device to the default settings...
- Page 42 User Manual: VisionShare Series Advance Advance: click “Upgrade” to upgrade the system. Click “Others” can see the “FileExplorer” and “Apps” on the device.
- Page 43 User Manual: VisionShare Series...
-
Page 44: Mirroring360 & 4 Split Screens
User Manual: VisionShare Series 4. Mirroring360 & 4 Split Screens You can use the Receiver of the VisionShare System to mirror your device(s) to the TV. Turn on the power switch of the TV. Turn on the receiver of the VisionShare collaboration system. - Page 45 User Manual: VisionShare Series Multiple Split-Screen: The VisionShare system can supply multiple device connection for up to 4 devices. For Android: Make sure you have installed the Mirroring360 on your Android device. You can download it from the Play Store.
-
Page 46: Indicator Lights Description
User Manual: VisionShare Series 5. Indicator Lights Description Transmitter Status LED Indicator Description The Transmitter is not connected. The Transmitter is connected Auto-Pairing and then auto-pairing to the Flashing RED Receiver. The connection between Auto-Pairing Transmitter and the Receiver is Success established. - Page 47 User Manual: VisionShare Series Transmitter - Battery Status Indicator Battery Status Indicators Battery Status Indicators Description The four LED indicators indicate the battery capacity of the Transmitter: Four LED: fully charged (100%). Three LED: the battery capacity is l about 75%.
- Page 48 User Manual: VisionShare Series Receiver Status LED Indicator Description The Receiver is power-off. The Receiver is pairing with the Auto-Pairing Flashing RED Receiver. Auto-Pairing The connection between Success Transmitter and the Receiver is & Static BLUE established. Stand By Presentation Presentation is proceeding.
- Page 49 User Manual: VisionShare Series Power Station Status LED Indicator Description The Power Station is off. The Power Station is connected Standby Static BLUE and ready for battery charge. The Power Station is in battery Battery Charge flashing BLUE charge process.
-
Page 50: Specification
User Manual: VisionShare Series 6. Specification Model Name Input Resolution up to 1920 x 1080 @ 60Hz up to 4K x 2K (3840 x 2160 @ 30Hz) Video Quality Uncompressed content Frame Rate up to 1920 x 1080 60 fps...
