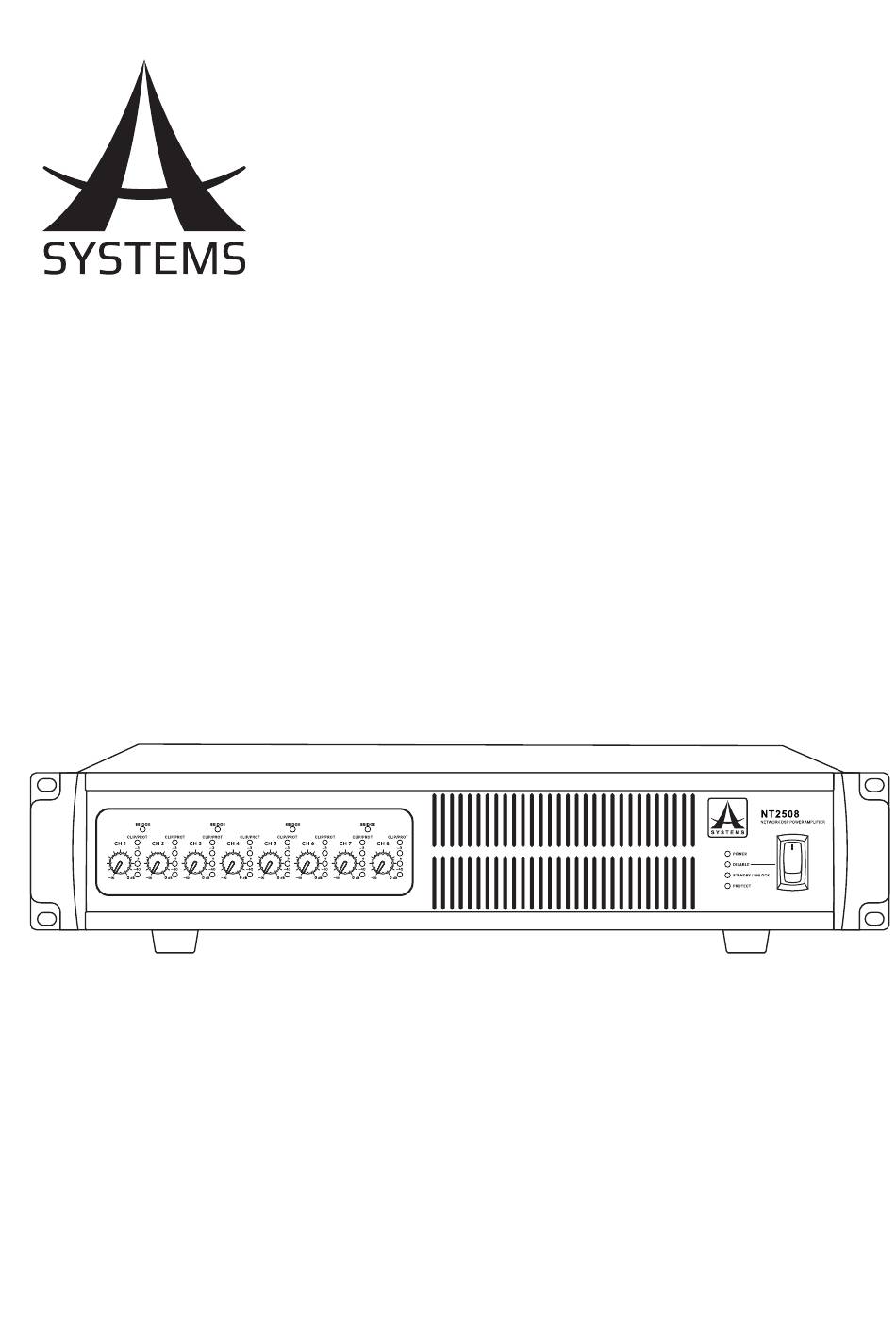

  • Page 1 User’s Manual Manual del Usuario Network Power Amplifiers NT2508 NT2504 NT 1 308 NT 1 304 NT4004...
  • Page 2: Table Of Contents

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 TABLE OF CONTENTS INTRODUCTION �������������������������������������������������������������������������������������������������������������������������� 2 FEATURES ����������������������������������������������������������������������������������������������������������������������������������� 2 CONTROLS AND I/O ������������������������������������������������������������������������������������������������������������������� 3 FRONT PANEL �������������������������������������������������������������������������������������������������������������������������� 3 REAR PANEL ���������������������������������������������������������������������������������������������������������������������������� 4 INSTALLATION AND SETUP ������������������������������������������������������������������������������������������������������� 4 RACK MOUNTING �������������������������������������������������������������������������������������������������������������������� 4 INSTALLING THE DANTE NETWORK CARD ��������������������������������������������������������������������������...
  • Page 3 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 IMPORTANT SAFETY INSTRUCTIONS The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
  • Page 4: Introduction

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 1. INTRODUCTION Congratulations on your purchase of a NT series network amplifier. The NT’s flexible deisgn will provide you with up to eight channels of audio with advanced DSP processing. A single NT amplifier offers eight-in, eight-out support (or four-in, four-out), and the entire system can be controlled through standard potentiometers or flexible remote software.
  • Page 5: Controls And I/O

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 3. CONTROLS AND I/O FRONT PANEL 1. Mounting Holes 6. Indicators These holes are for mounting the NT series network POWER: Lights when the device is on� amplifier in a standard 19” rack.
  • Page 6: Rear Panel

    The Asystems NT2508, NT2504, NT1308, NT1304 and NT4004 share the same basic I/O design and layout. The major difference is that the NT2508 and NT1308 have 8 line input channels and 8 speaker output channels, while the NT2504, NT1304 and NT4004 all have 4 input connectors and 4 speaker output channels (as shown below).
  • Page 7: Installing The Dante Network Card

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 4.2 INSTALLING THE DANTE NETWORK CARD To install the optional Dante networking card, simply remove the 2 screws from the network port, then slide the DT44 or DT88 networking card into the network port. Replace the 2 screws to secrure it firmly into place.
  • Page 8: Ip Address Setup

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 4.4 IP ADDRESS SETUP The UNIT ID rotary control Connecting the NT series network amplifier to a computer allows a value between 0 and F for remote operation requires the user to enter an IP to be selected.
  • Page 9: Remote Software Connection

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 4.5 REMOTE SOFTWARE CONNECTION NT2508, NT1308, NT2504, NT1304 and NT4004 can be controlled via a connected Windows-based PC. The instructions below assume users have already set their unit’s IP address as described on the previous page.
  • Page 10: Restore Factory Settings

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 4.6 RESTORE FACTORY SETTINGS 6. Change the field “IP address” to “192.168.0.3”, and then click “OK”� 1. Switch POLE 7 on the rear panel DIP Switches to the ON position� 2. Power on the NT series network amplifier.
  • Page 11: Control Software

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 5. CONTROL SOFTWARE The DSP page will give you an overall profile of input and output mixes as well as signal processors. Name Cell: The white boxes at the left and right of each row will display the name of each input and output channel.
  • Page 12 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Network Matrix By pushing the Network In button you can access the Network routing page� Here you can assign your Network signals to the various output channels� All controls are as same as controls under the Analog In Matrix page.
  • Page 13 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Global Settings LIM - Limiter/Compressor Settings This menu allows compressors and limiters to be applied to channel outputs� Limiter Threshold: This control determines the threshold for the limiter function� This means that no signal will surpass the selected threshold, being ‘compressed’...
  • Page 14 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Network There are two pages under this tab. The PC menu offers a number of fields for network configuration� The user can offer a device name in this menu, while also including fields for the IP Address, Subnet Mask and Gateway Address.
  • Page 15 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Protect The protect menu gives real-time updates on the system performance� Everything from the system temperature to the output wattage is represented on this page� If the Protect LED on the front of the NT amplifier lights up, this menu can be viewed to better understand the issue.
  • Page 16: Specifications

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 SPECIFICATIONS NT1304 NT1308 NT2504 NT2508 NT4004 Low Z, Stereo Mode, all channels driven (RMS Power Ouput Per Channel) 8Ω, 20Hz-20kHz 1%THD 150W 150W 250W 4Ω, 20Hz-20kHz 1%THD 130W 130W 250W 250W...
  • Page 17: Parameters

    NT2508 / NT2504 / NT1308 / NT1304 / NT4004 PARAMETERS Function Parameter Range Compressor / Limiter Compressor Threshold -50 dB to 0 dB Ratio 1:1 to 20:1 Limiter Threshold -50 dB to 0 dB Output Gain 0 dB to 18 dB...
  • Page 18 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 ÍNDICE INTRODUCCIÓN ������������������������������������������������������������������������������������������������������������������������ 21 CARACTERÍSTICAS ������������������������������������������������������������������������������������������������������������������ 21 CONTROL Y CONMUTACIÓN I/O ��������������������������������������������������������������������������������������������� 22 PANEL FRONTAL �������������������������������������������������������������������������������������������������������������������� 22 PANEL TRASERO ������������������������������������������������������������������������������������������������������������������� 23 INSTALACIÓN Y CONFIGURACIÓN ����������������������������������������������������������������������������������������� 24 MONTAJE RACK ��������������������������������������������������������������������������������������������������������������������� 24 CONEXIÓN ����������������������������������������������������������������������������������������������������������������������������� 24 TARJETA DE EXPANSIÓN DIGITAL I/O ���������������������������������������������������������������������������������...
  • Page 20 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 21 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 22 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 23 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 24 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 25 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 26 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 27 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 28 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 29 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 30 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 31 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 32 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 33 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 34 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 35 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 Español...
  • Page 36 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 PARAMETROS Traducción de Pará- Función Parameter Rango metros en Español Compressor / Limiter Compressor Threshold Umbral de Compresion -50 dB a 0 dB (Compresor / limitador) Ratio Muestreo 1:1 a 20: 1...
  • Page 37 NT2508 / NT2504 / NT1308 / NT1304 / NT4004 PARAMETROS Español...
