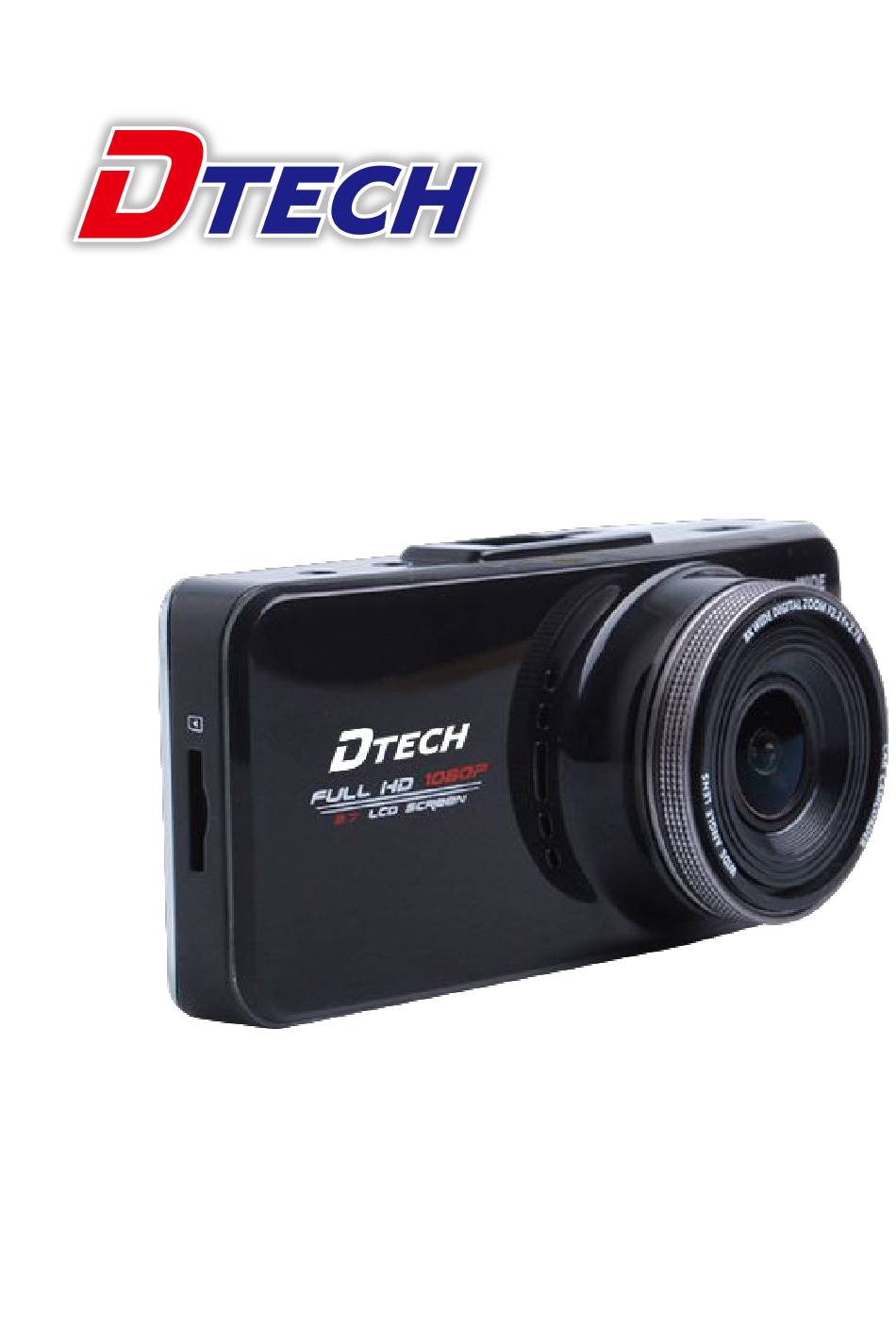

- Page 1 USER MANUAL TCM023...
- Page 2 ◆preface Thank you for purchasing the company vehicle traveling data recorder. Before the formal use, please read this manual carefully, to ensure that the correct use of the product.Keep this manual for future use ◆Infringement of copyright warning Please note that this product is only for personal use, the method of use shall not violate the goods infringe on domestic or international copyright laws.Even recorded images for personal use only, please note that in some cases to use this...
- Page 3 bring you a colorful life ◆Matters needing attention - please do not open or disassemble the product without authorization, which may lead to electric shock, or equipment damage.If necessary, please to the service center or professional processing. - the product can be used for other USES, such as photography, take, etc.
- Page 4 - the largest support 32 gb TF card - support charging, while video - image real-time monitor the output - new WDR wide dynamic video...
- Page 5 Structure ◆Front view 1.Camera 2. Screen 3. The power button 4. UP key 5. Menu 6.OK button 7. The mode key 8. Down key ◆side view 9.TF slot 10.HDMI...
- Page 6 ◆Vertical view 11.RESET 12.Speaker 13.Mic 14.AV-OUT 15.GPS slot 16.Stent hole 17.USB ◆Keys function introduction Name function Power According to the boot, long press to turn it Menu Short press enter the menu （ video mode, One key to lock file） Mode Short press to switch working mode UP（ZOOM）...
- Page 7 DOWN DOWN ， Video on standby mode, click open or close the recording Reset Reset the system ◆light name instruction Red light Charge indicator, charging is complete, go out Red light Work light, video, flashing blue light regularly Operation and use ◆Insert the memory card 1.
- Page 8 ◆The startup and shutdown of equipment 1. The manual switch machine: long press the power button once, the screen lights up, then long press the power button to turn it off can be realized. 2. Driving automatic switch machine: access to the car first 5 v power supply, the machine will start automatically when the car start and carry on video.When the engine according to the menu to select delay automatically save the current video and...
- Page 9 regularly video mode, press the confirmation key in the process of video stop video, then click the ok button can again on video. Picture mode Aim the camera recording, keep the recorder doesn't shake, press the "confirm" button, "MAO wipe" sound, the machine makes a photo shoot.The user can choose different shooting mode according to their own requirements.
- Page 10 Playback mode： File selection and broadcast: 1, turn key and the key files were selected, and make sure the keys file playback 2, play in the process, click the ok button to pause playback, click again, play again During playback, click on the turn and turn key can be set up under the fast forward and fast ◆Menu Settings and system setting In short video standby mode according to the menu, the...
- Page 11 function Functional description Resolution 1080FHD/720P/WVGA/VGA Loop video Select 2/3/5 minutes to circulation photography, photography can also be closed cycle When open this option, the video quality to be improved Motion Open motion detection camera detection induction target change, target motion, the machine will automatically open the video Power supply...
-
Page 12: System Settings
◆System Settings function Functional description Date/time Set the date/time of the machine license record Set of license plate can be recorded in the file shown above Automatic Set the machine automatic shutdown time in shutdown standby mode key sound Key sound of opening and closing language Chinesesimplified/traditionalChinese/English/ German/Japanese/French/Portuguese/Italian/... - Page 13 play in the computer, also can remove the TF card, use the data in a card reader to read the card;Select the "camera", recorder can do PC CAM use;Select "video", the machine starts, can connect the computer, while charging operation. ◆HDMI This equipment through the HDMI cable, HDMI ports connected to the TV HDMI interface, hd audio and video...
- Page 14 support Max to 32ＧＢ ＴＦ Language Chinese simplified/traditional Chinese/English/Japanese/German/Frenc h/Portuguese/Korean/Russian/Italian Support ＨＤＭＩ Battery capacity 400mAh Microphone/speak Support DC in 5V 1500mA Note: the specification may be due to the upgrade and update changes such as reason, in kind prevail...
- Page 15 Simple question out In the event of failure, please try to use the following method.If you cannot be ruled out, please contact after sales and maintenance. Can't normal video recording - change the TF card - change the resolution - insert the larger capacity memory card. - make sure the card has been installed correctly (during the installation process, you should hear a clicking sound).
