Summary of Contents for Foto Walser walimex Beauty Ring Light

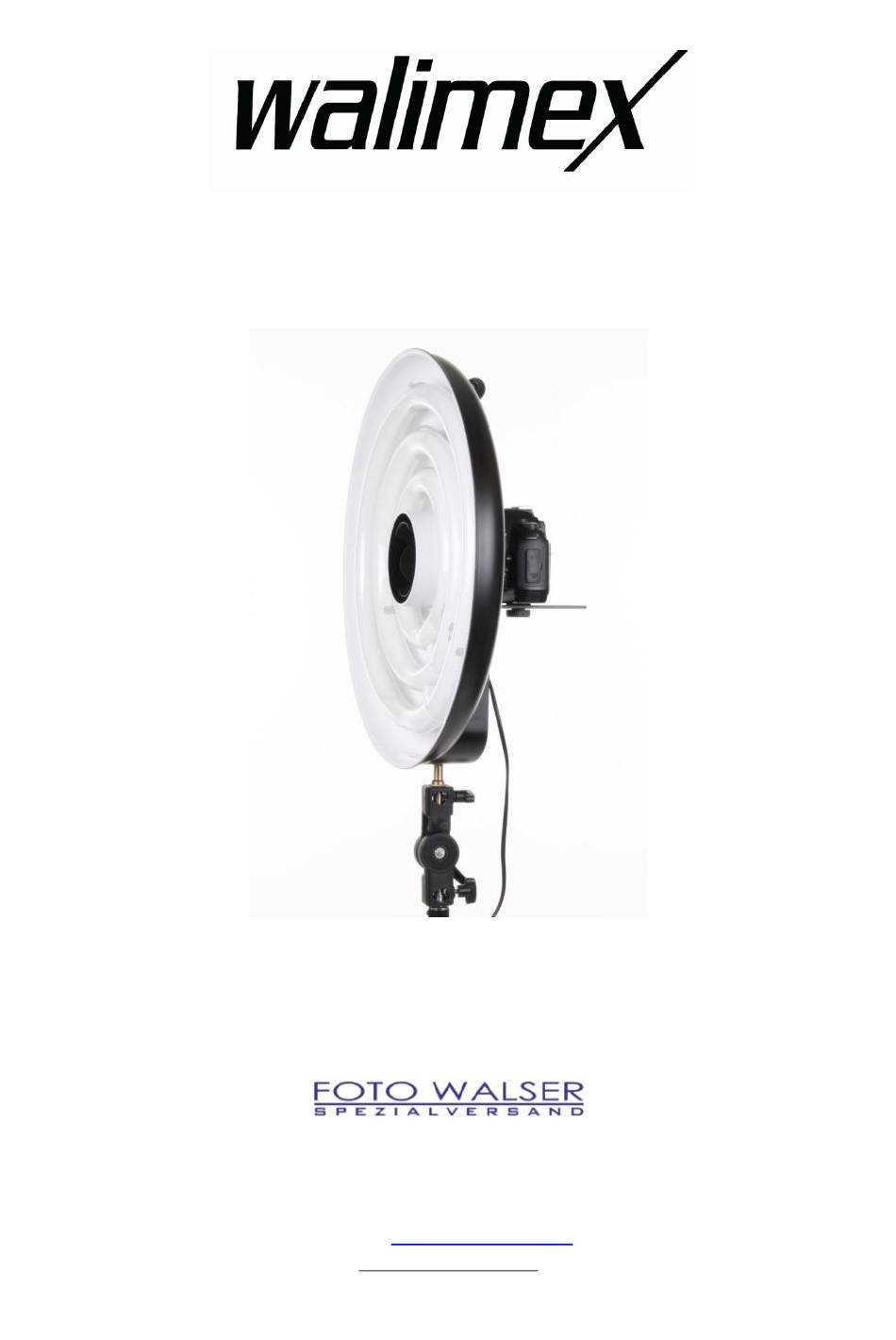

- Page 1 Copy of Instruction Manual Beauty Ring Light 90W Gewerbering 26 86666 Burgheim Tel. +49 84 32 / 9489 - 0 Fax: +49 84 32 / 9489 - 8333 E-Mail: info@foto-walser.de www.foto-walser.de...
-
Page 2: Table Of Contents
Content How to understand the instruction manual ............ 3 Symbols on the device ................... 3 Symbols in this manual................... 4 Important safety notes .................. 4 Unpack and check device ................5 Overview of device elements and operating elements ........6 Quick-start guide ................... -
Page 3: How To Understand The Instruction Manual

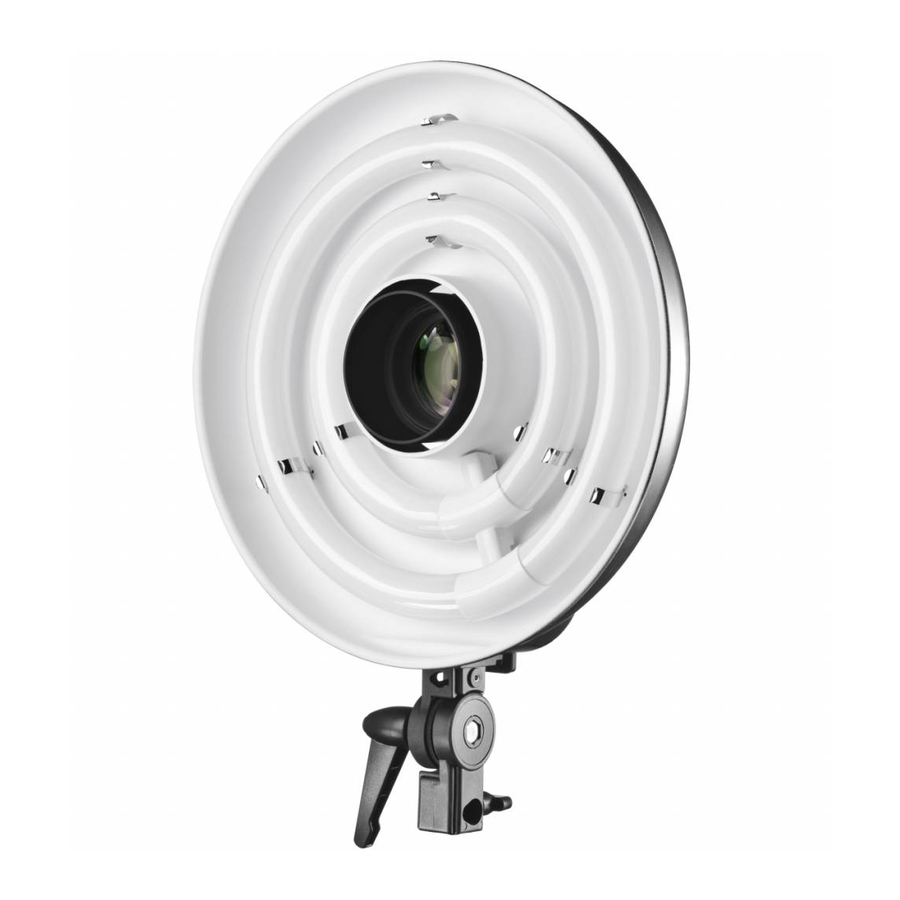

We would like to thank you for your confidence and wish you much joy and success with your new device. The Beauty Ring Light by walimex is a perfect light source for portrait and beauty photography. Due to the special form of the ring light or rather the lamps, a shadow-free and even lighting of persons and products from all sides at the same time is possible. -
Page 4: Symbols In This Manual
Symbols in this manual Symbol Meaning Indicates the handling and consequences of safety notes. WARNING Indicates a hazardous situation which, if not avoided, may result in a serious injury or death. CAUTION Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. NOTE: Indicates potential material damage and other important information regarding your device. -
Page 5: Unpack And Check Device
Clean the device exclusively as described in this instruction manual. Ensure that cables and conductors are not damaged. Damage could be caused due to heat impact, chemical influence or due to mechanical impacts such as rubbing, bending, tearing, rolling over, or nibbling animals. Prevent your device from falling. -
Page 6: Overview Of Device Elements And Operating Elements
1 x instruction manual in German and English. Please check if the scope of delivery is undamaged. NOTE: If the scope of delivery is incomplete or damaged, please contact info@foto-walser.de or our service hotline with the telephone number +49 84 32 / 9489 - 0. NOTE: We reserve the right to make technical and optical modifications in the course of product improvement. -
Page 7: Prepare Device For Operation
Prepare device for operation Mount device on lamp tripod NOTE: Please pay attention to the information for use of the tripod manufacturer. WARNING Only mount the device to a tripod that is suitable for the weight and dimensions of the device. See Technichal specifications. -
Page 8: Adjust Tilt Angle
Set tilt angle Open tilt lever. Set desired tilt angle. Tighten tilt lever. Attach camera Screw camera mount to device. Screw camera to camera mount – NOTE: Ensure that the camera is securely attached. Position at desired height. Switch device on and off Switch device on: Use on/off switch on power cord. -
Page 9: Maintenance Of The Device
Problem Possible cause Solution Lamp does not light Lamp is switched off Switch lamp on, see Insert and remove lamps Lamp is not inserted into Insert lamp into socket more tightly socket tightly enough Lamp is defective Replace lamp, see Insert and remove lamps 10. -
Page 10: Replacing The Lamps
10.3 Replacing lamps WARNING Please only use lamps which are conform to the required specification. See Technical specifications. Remove lamp, insert lamp. See Insert and remove lamps. 10.4 Replacing the micro-fuse WARNING Danger of electric shock and fire due to short circuit A micro-fuse which does not comply with the required specification does not offer protection when the device overloads. -
Page 11: Technical Specifications
14. Technical specifications Device IP Class IP 20 Power supply AC 220 - 240V / 50Hz Weight approx. 2.4kg Rotatable on spigot 360 ° Dimensions (HxWxT) approx. 48cm x 48cm x 8,5cm Diameter Ring Light approx. 50cm Diameter Lens Opening approx.
