Bodypro 100
User Manual
<Rev 1.1>
Du-sung Technology co., ltd
u-Health Division
www.du-sung.com
sales@du-sung.com
Copyright 2010 #990005-103 Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bodypro 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Du-sung Technology Bodypro 100

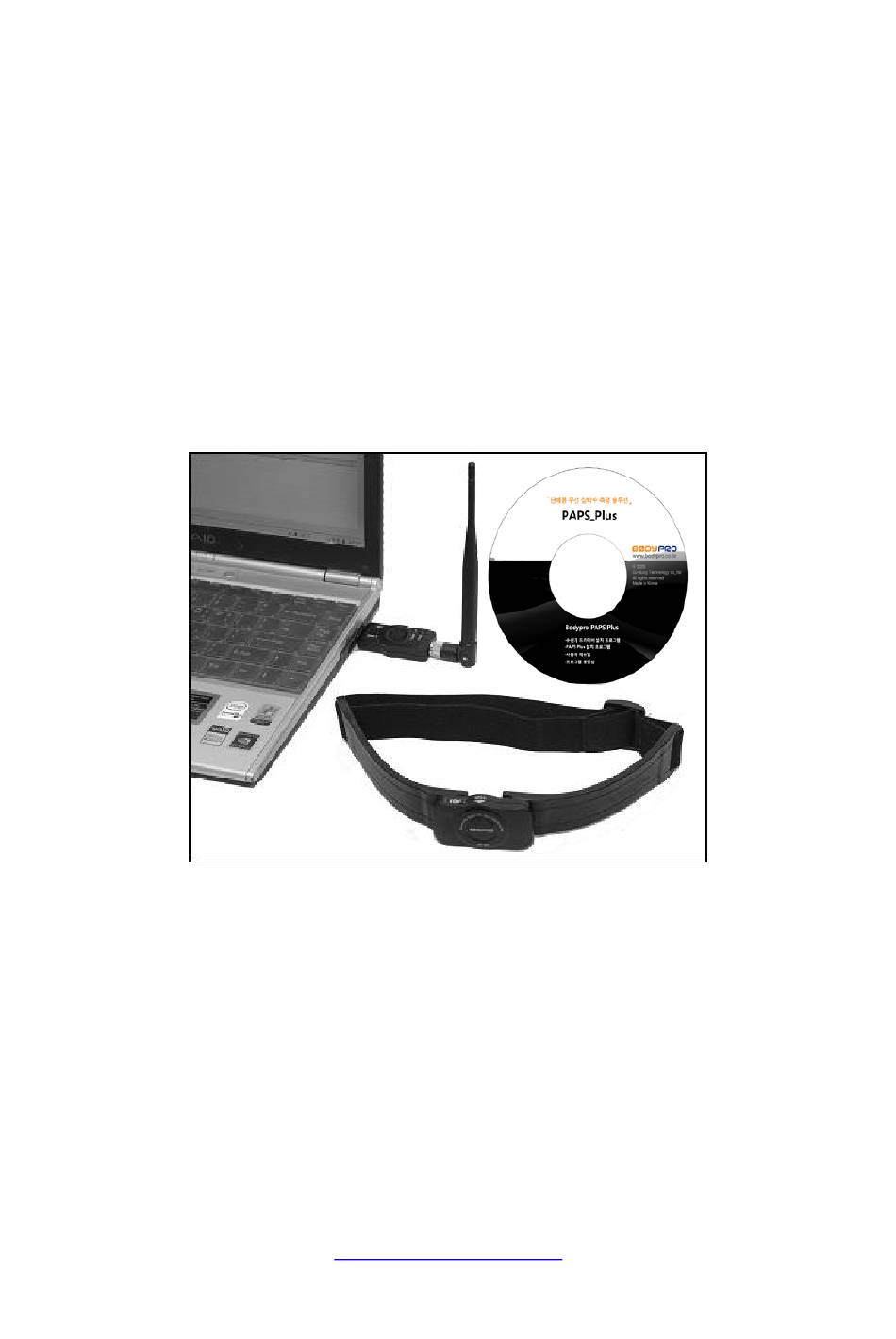

  • Page 1 Bodypro 100 User Manual <Rev 1.1> Du-sung Technology co., ltd u-Health Division www.du-sung.com sales@du-sung.com Copyright 2010 #990005-103 Rev 1.0...

  • Page 2: Table Of Contents

    ▣ Please avoid any external impact such as vibration and crash. Keep the device in safe position. ▣ Please consult your physician or family doctor and stop using Bodypro 100 if you have any allergic reaction with material or if you have a pacemaker or other implanted electronic device.

  • Page 3: Introduction

    CD. Wrist belts(DS100C) and a zigbee router(DS2000) are to be purchased as optional devices. Bodypro 100 is a wireless heart rate monitor which detects multiple heart rates and measures cardio respiratory endurances. It measures up to 100 signals, and therefore it eases measurement processes.

  • Page 4: Name And Function Of Each Component

    Bodypro 100 User Manual 3. Name and Function of Each Component Optional A. DS100 body : wireless heart rate signal transmitter body. B. Battery cap : open/close to change battery. C. Electrode clip : connection/electrode clip to chest belt. D. Electrode belt : electrode rubber part of chest belt where heart rate signal is detected.

  • Page 5: Paps_Plus Program Installation

    Bodypro 100 User Manual 4. PAPS_Plus Program Installation 1) Install a driver for receiver - to activate a receiver connected to PC. A. Insert CD and click “Receiver driver installation” when the below image shows up. B. Click “Next” to proceed.
  • Page 6 Bodypro 100 User Manual Click ”Yes” to proceed. D. Click “Next” to start installation. - 6 - Du-sung Technology co., ltd.
  • Page 7 Bodypro 100 User Manual E. Click “Finish” to finish installation. Connect receiver to PC. a. Check “Yes, this time only” and click “Next”. Du-sung Technology co., ltd.
  • Page 8 Bodypro 100 User Manual b. Check ”Install the software automatically [Recommended]” and click “Next”. The driver will be detected automatically. ※ If PC doesn’t detect the driver from this method, check “Install from a list or specific location [Advanced]” and click “Next”. The below page will show up.
  • Page 9 Bodypro 100 User Manual If below page show up, it means PC is searching the driver and it will take some time. The below message will show up as the driver is detected. Click “Continue Anyway” to proceed. Du-sung Technology co., ltd.
  • Page 10 Bodypro 100 User Manual f. If below page show up, it means the driver for receiver is completed. Click “Finish” to complete the installation. ※ Installation for receiver only needs to be done once for the first time. Later time, a receiver will be detected automatically without additional installations.
  • Page 11 Bodypro 100 User Manual PAPS_Plus Program Installation A. Click “PAPS_Plus Program Install”. B. Click “Next” to proceed. Du-sung Technology co., ltd. -11-...
  • Page 12 Bodypro 100 User Manual C. Check ”I accept the terms of the license agreement” and click “Next” to proceed. D. Type user information and serial number from attached film on CD. Click Next to proceed. - 12 - Du-sung Technology co., ltd.
  • Page 13 Bodypro 100 User Manual Choose desired directory for PAPS_Plus installation and click “Install” to begin installation. F. Click “Finish” to complete the installation. Du-sung Technology co., ltd. -13-...

  • Page 14: Wearing Bodypro

    Bodypro 100 User Manual 5. Wearing Bodypro 1) Wearing chest belt(DS100B) A. Using wet tissue or other things, clean and moisten the surface of electrode part of chest belt at the same time. Connect one side of chest belt and transmitter at connection clip.
  • Page 15 Bodypro 100 User Manual 2) Wearing chest belt(DS100B) with wrist belts(DS100C, optional) A. Wear chest belt with transmitter around the chest or core on outfits. B. Use wet tissue to moisten wrists and wear wrist belts. Make sure the electrode parts contact skin.

  • Page 16: Monitoring Environments

    Bodypro 100 User Manual Monitoring Environments A. When a transmitter(DS100) faces a receiver(DS1100), the transmission can be made up to 150m. B. When a transmitter(DS100)’s back faces a receiver(DS1100), the transmission can be made up to 30m. In 150m <A> transmitter faces receiver In 30m <B>...

  • Page 17: Zigbee Router(Ds2000, Optional) Names And Functions

    Bodypro 100 User Manual 7. ZIGBEE router(DS2000, optional) name and functions 1) Names A. Power button : turns on and off the zigbee router(DS2000) B. Power LED : indicates power status of zigbee router(DS2000) C. Status LED : blinks at each time heart rate signal is received.

  • Page 18: Specifications

    Bodypro 100 User Manual 8. Specifications 1) Transmitter(DS100) Detail Detail Transmission ZIGBEE (IEEE 802.15.4) method Frequency 2.4 ㎓ ~ 2.4835 ㎓ range Available channel 16ch Picture numbers Transmitting 8dBm(6.3mW) output On when worn ・ (automatic) Power save Off when not worn ・...
  • Page 19 Bodypro 100 User Manual 2) Chest belt(DS100B) Detail Detail ・minimum 490 mm Length ・maximum 1,100 mm Picture weight It is made of harmless silicon material. Its Feature unique flexibility makes it easy to wear and surface enhances comfort when worn.
  • Page 20 Bodypro 100 User Manual 4) Wrist belts(DS100C, optional) Detail Detail ・wrist band Length ・cable Picture ・wrist band 5g Weight ・cable 5 It is made of harmless silicon material. Its unique flexibility makes it easy to wear Feature and surface enhances comfort when worn.
  • Page 21 Bodypro 100 User Manual 5) ZIGBEE router(DS2000, optional) Detail Detail Transmission ZIGBEE (IEEE 802.15.4) method Frequency 2.4 ㎓ ~ 2.4835 ㎓ range Reception -98dBm Picture Reception More than 1.5km range Multiple reception Maximum 100 signals number Antenna 2dBi dipole antenna...

  • Page 22: Battery Replacement

    Bodypro 100 User Manual 9. Battery Replacement A. If battery sign( ) from the program is blimking or in case monitoring doesn’t work and considering its period, battery has to be replaced. B. Use CR2450 lithium battery(3V). C. Follow below steps to replace.

  • Page 23: Self-Diagnosis

    During the guarantee period, the product will be either repaired or replaced at any of the authorized Du-sung Technology co., Ltd no matter which country you purchased. G. Guarantee with respect to any product will be limited to countries where the product has been initially marketed.
  • Page 24 Bodypro 100 User Manual Customer Service Center ☞ Office Hour Business days : AM 09:00~ PM 18:00 Saturday, Sunday, Holiday : closed ☞ Contact Us : Du-sung Technology Co., ltd. www.du-sung.com 75, Sinilseo-ro,, daedeok-gu, Daejeon, South Korea, (306 – 230) Tel.
