SandSET-1000 12 VDC
Sludge Alarm Device
Installation and Operating Instructions
Copyright © 2019 Labkotec Oy
We reserve the right for changes without notice
Advertisement
Table of Contents
Summary of Contents for Labkotec SandSET-1000 12 VDC

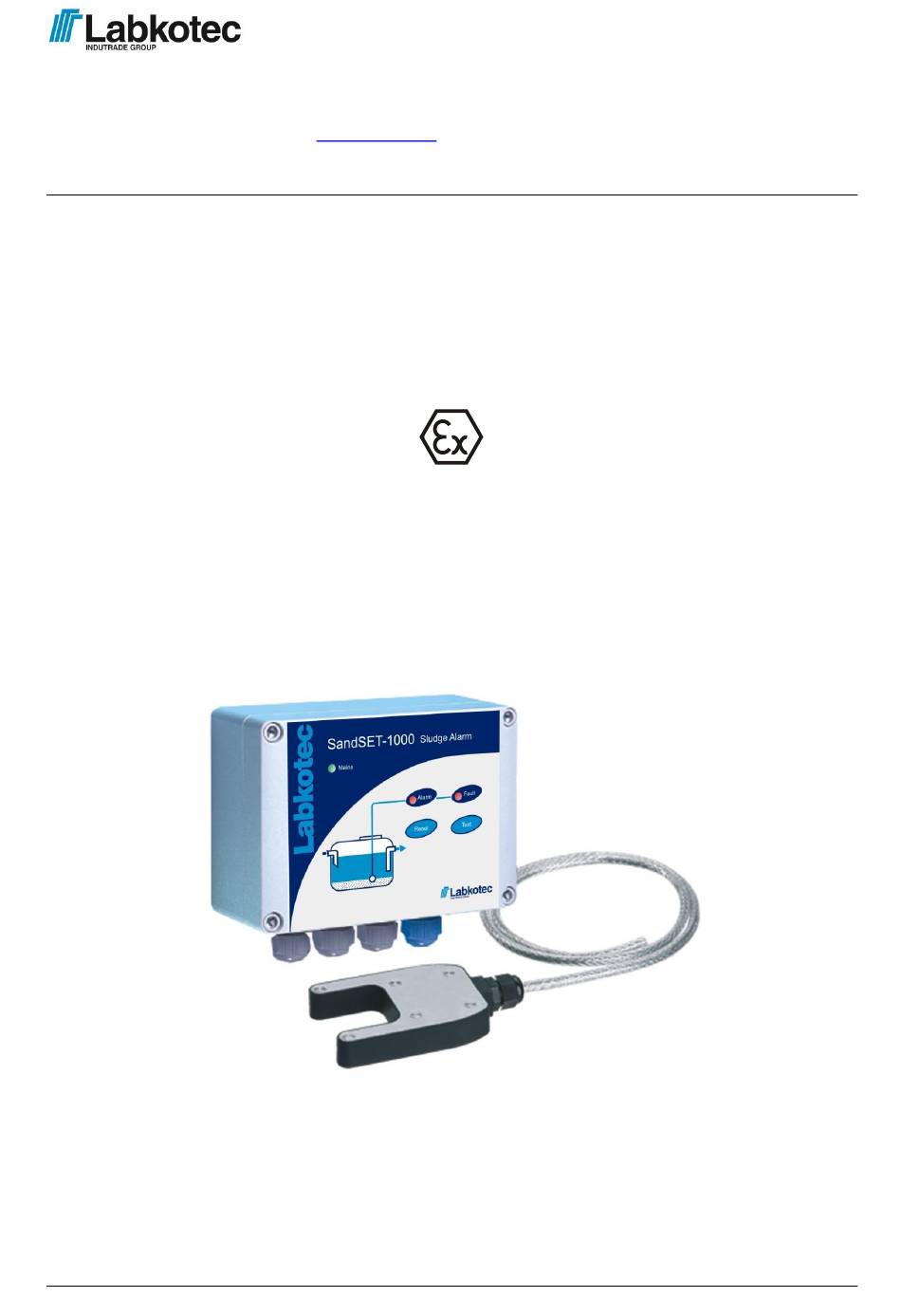

- Page 1 Tel.: +358 29 006 260 Fax: +358 29 006 1260 28.8.2019 E-mail: info@labkotec.fi D15649_E-2 Internet: www.labkotec.fi 1/13 SandSET-1000 12 VDC Sludge Alarm Device Installation and Operating Instructions Copyright © 2019 Labkotec Oy We reserve the right for changes without notice...
-
Page 2: Table Of Contents
Installation and Operating Instructions TABLE OF CONTENTS 1 GENERAL ......................3 2 INSTALLATION ....................4 2.1 SandSET-1000 12 VDC control unit ............4 2.2 SET/S2 sensor ..................... 5 2.3 Cable joint ....................5 3 OPERATION AND SETTINGS ................6 3.1 Operation ..................... 6 3.2 Factory settings .................... -
Page 3: General
Installation and Operating Instructions GENERAL SandSET-1000 12 VDC is an alarm device to indicate the accumulation of sludge or sand layer on the bottom of a well or tank. Typical applications are sand and oil separators as well as settling tanks of wastewater treatment plants and other wells or basins. -
Page 4: Installation
Installation and Operating Instructions INSTALLATION SandSET-1000 12 VDC control unit SandSET-1000 12 VDC control unit can be wall-mounted. The mounting holes are located in the base plate of the enclosure, beneath the mounting holes of the front cover. The connectors of the external conductors are isolated by separating plates. -
Page 5: Set/S2 Sensor
If the sensor cable must be extended and there is a need for equipotential grounding, it should be done with the junction box LJB2. The cabling between the SandSET-1000 12 VDC control unit and the junction box should be done with a shielded twisted pair instrument cable. -
Page 6: Operation And Settings
SandSET-1000 12 VDC Sludge Alarm Device D15649_E-2 Installation and Operating Instructions OPERATION AND SETTINGS The SandSET-1000 12 VDC alarm device is initialized at the factory. The operation of the alarm device should be checked always after the installation. Functionality test 1. -
Page 7: Factory Settings
The device does not react to the test at all. Factory settings If the operation of SandSET-1000 12 VDC is not as described in the previous chapter, check that the device settings are as in figure 7. Change the settings according to the following instructions if needed. -
Page 8: Trouble-Shooting
To do: 1. Make sure, that the sensor cable has been connected correctly to the SandSET-1000 12 VDC control unit. See instructions from chapter 2 or SET/S2 installation and Operating Instructions. 2. Measure the voltage separately between the poles 10 and 11. The voltages should be between 10,3….11,8 V. -
Page 9: Repair And Service
In case of queries, please contact Labkotec Oy’s service. SAFETY INSTRUCTIONS SandSET-1000 12 VDC control unit must not be installed in potentially explosive atmosphere. Sensors connected to it may be installed in zone 0, 1 or 2 potentially explosive atmospheres. -
Page 10: Technical Data
1,6 µF 5,0 mH = 116,5 µH/Ω (IIC) and 466 µH/Ω (IIB) Figure 9. Dimensional drawing of SET/S2 sensor Table 2. SandSET-1000 12 VDC electrical parameters Copyright © 2019 Labkotec Oy 10/13 We reserve the right for changes without notice... -
Page 11: Declaration Of Comformity
DECLARATION OF COMFORMITY... -
Page 12: Declaration Of Comformity
DECLARATION OF COMFORMITY... -
Page 13: 10 Declaration Of Conformity
10 DECLARATION OF CONFORMITY...
