Rack Mount
LCD-Keyboard Drawer
1U Model Setup and Operating Guide
A Technical Guide for System Integrators
and Service Technicians

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1U ELD115M and is the answer not in the manual?

Questions and answers

Summary of Contents for i. Tech Dynamic 1U ELD115M

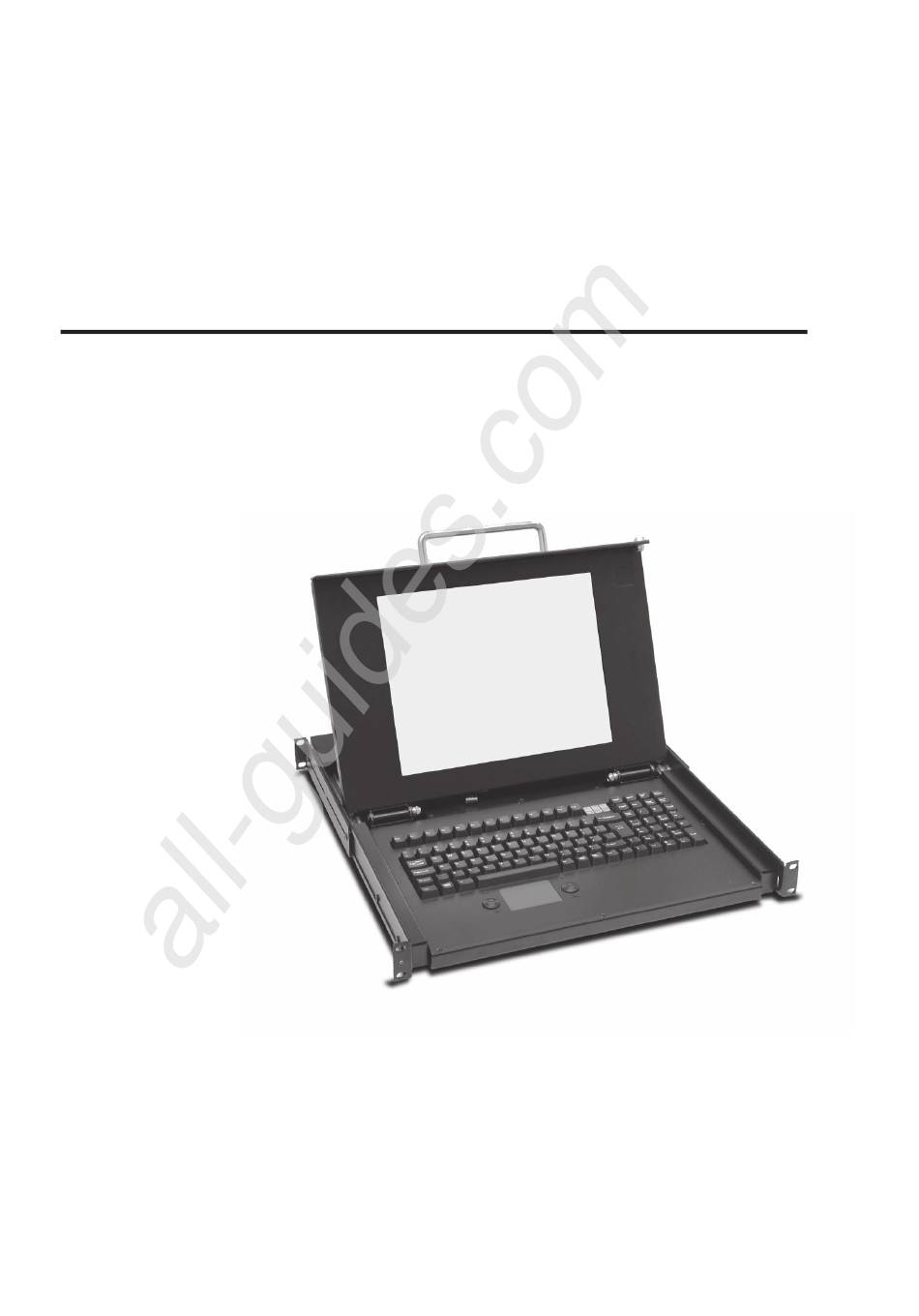

  • Page 1 All manuals and user guides at all-guides.com Rack Mount LCD-Keyboard Drawer 1U Model Setup and Operating Guide A Technical Guide for System Integrators and Service Technicians...
  • Page 2 All manuals and user guides at all-guides.com The information contained in this document is believed to be accurate. However, no responsibility is assumed for its use, nor for any infringements of patents or other rights of third parties which may result from its use. This information is subject to change without any notice.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS Introduction ............1 Safety Guidelines ..........2 Unpacking ............. 4 External Views ............5 .ront View ................5 Side View—OSD Controls ........... 6 Top View—Audio Components ........... 7 Back View—Connectors ............. 8 System Requirements ..........
  • Page 4 All manuals and user guides at all-guides.com Setup and Operating Guide...

  • Page 5: Introduction

    All manuals and user guides at all-guides.com Setup and Operating Guide Introduction Your .lat Panel Monitor-Keyboard Drawer is an integrated monitor-keyboard assembly designed for use with rack- mounted servers. It can be easily set up in a standard 19” equipment rack or cabinet. The monitor-keyboard is mounted on slide rails.

  • Page 6: Safety Guidelines

    All manuals and user guides at all-guides.com Setup and Operating Guide Safety Guidelines Before you setup your monitor-keyboard drawer, it is important to follow certain basic safety precautions to prevent damage to the product and to ensure your own personal safety. Handling the Drawer Assembly The monitor-keyboard drawer is constructed of heavy gauge metal and can weight up to 30 lbs.
  • Page 7 All manuals and user guides at all-guides.com Setup and Operating Guide Care for the LCD The monitor is an active matrix LCD. Liquid crystal displays are made of glass which will break or crack if mishandled. Ventilation The ambient temperature within a densely filled rack cabinet may exceed that of the room temperature.

  • Page 8: Unpacking

    All manuals and user guides at all-guides.com Setup and Operating Guide Unpacking As you unpack your unit check the packing material to ensure that you have found all of the proper cables and accessories. Save all of the shipping material in case you need it for transporting the unit in the future.

  • Page 9: External Views

    All manuals and user guides at all-guides.com Setup and Operating Guide External Views .ront View The monitor-keyboard drawer includes a flip-up LCD. Unlock the flip-up LCD and use the handle to lift the LCD up. .acing the unit you’ll find these components: Keyboard Touchpad Slide rail...

  • Page 10: Side View—Osd Controls

    All manuals and user guides at all-guides.com Setup and Operating Guide Side View—OSD Controls On the left side of the LCD you’ll find four push buttons. You use them to adjust the display properties through an OSD (On-Screen Display) menu system (see page 16 for a description of the OSD).

  • Page 11: Top View—Audio Components

    All manuals and user guides at all-guides.com Setup and Operating Guide Top View—Audio Components Right speaker Left speaker Volume and Tone controls...

  • Page 12: Back View—Connectors

    All manuals and user guides at all-guides.com Setup and Operating Guide Back View—Connectors Audio input jack Power ON/OFF switch and AC Keyboard, video, mouse connectors power connector...

  • Page 13: System Requirements

    All manuals and user guides at all-guides.com Setup and Operating Guide System Requirements Your monitor-keyboard drawer connects to the video, keyboard and mouse ports of a computer system. Your computer system is required to have the following: A standard video card with an analog 15-pin video output connector.

  • Page 14: Rack Installation

    All manuals and user guides at all-guides.com Setup and Operating Guide Rack Installation Mounting Procedure The monitor-keyboard drawer is designed to be mounted in a 19" equipment rack or cabinet. The unit has mounting brackets that let you install it in racks ranging from 19” to 23” in depth.
  • Page 15 All manuals and user guides at all-guides.com Setup and Operating Guide Step 3. Carefully insert the unit into the rack enclosure. Align the front and rear mounting brackets with the screw holes along the rack posts. Step 4. Install the mounting screws. Tighten down all of the mounting bolts.
  • Page 16 All manuals and user guides at all-guides.com Setup and Operating Guide Step 6. Turn O.. your computer and then make all of the cable connections. The keyboard and mouse port connectors are color coded— purple colored connector for the keyboard and green colored connector for the mouse.
  • Page 17 All manuals and user guides at all-guides.com Setup and Operating Guide Step 7. Unlock the flip-up LCD. Turn the key counter-clowise to unlock the retractable drawer. Step 8. Power up your system and turn on the unit by pressing the AC power switch on the back of the unit to the ON position.

  • Page 18: Osd Controls

    All manuals and user guides at all-guides.com Setup and Operating Guide OSD Controls The LCD is driven by a conversion board that converts the analog video signal into a digital video format that is ac- cepted by the LCD monitor’s driver circuit. The conversion board includes an integrated RAM-based OSD (On-Screen Display) menu.

  • Page 19: Using The Osd

    All manuals and user guides at all-guides.com Setup and Operating Guide Using the OSD .ollow these steps to activate the on-screen display: Step 1. Power up the computer system and then turn on the LCD. Step 2. Press M to invoke the on-screen menu. Step 3.

  • Page 20: Osd Menu System

    All manuals and user guides at all-guides.com Setup and Operating Guide OSD Menu System The OSD menu system consists of a main menu and four sub menus. The following is a brief description of each of the menu items: Brightness Green Blue Color Temp...
  • Page 21 All manuals and user guides at all-guides.com Setup and Operating Guide H.POSITION: Adjusts the horizontal image position within the display area of the LCD. V.POSITION: Adjusts the vertical image position within the display area of the LCD. AUTO PHASE: Performs automatic adjustment of the ADC sample pixel clock.

  • Page 22: Troubleshooting Techniques

    All manuals and user guides at all-guides.com Setup and Operating Guide Troubleshooting Techniques LCD screen shows garbage or bad characters or vertical/horizontal color lines or bar: ü Detach the video connection to the LCD screen and attach to a good external CRT type monitor. If the external CRT monitor shows normal video then it could be compatibility issue.

  • Page 23: Technical Specifications

    All manuals and user guides at all-guides.com Setup and Operating Guide Technical Specifications Model 14”/15” Enclosure LCD Type Active Matrix LCD Color 262K / 16M LCD Size 14.1” / 15.1” Resolution 1024x768 Brightness 100/250 cd/m Response 40ms / 25ms Contrast 150:1 / 300:1 Environment Operating Temp.
