Hunza BLADE Installation Instructions

BLADE
Installation instructions

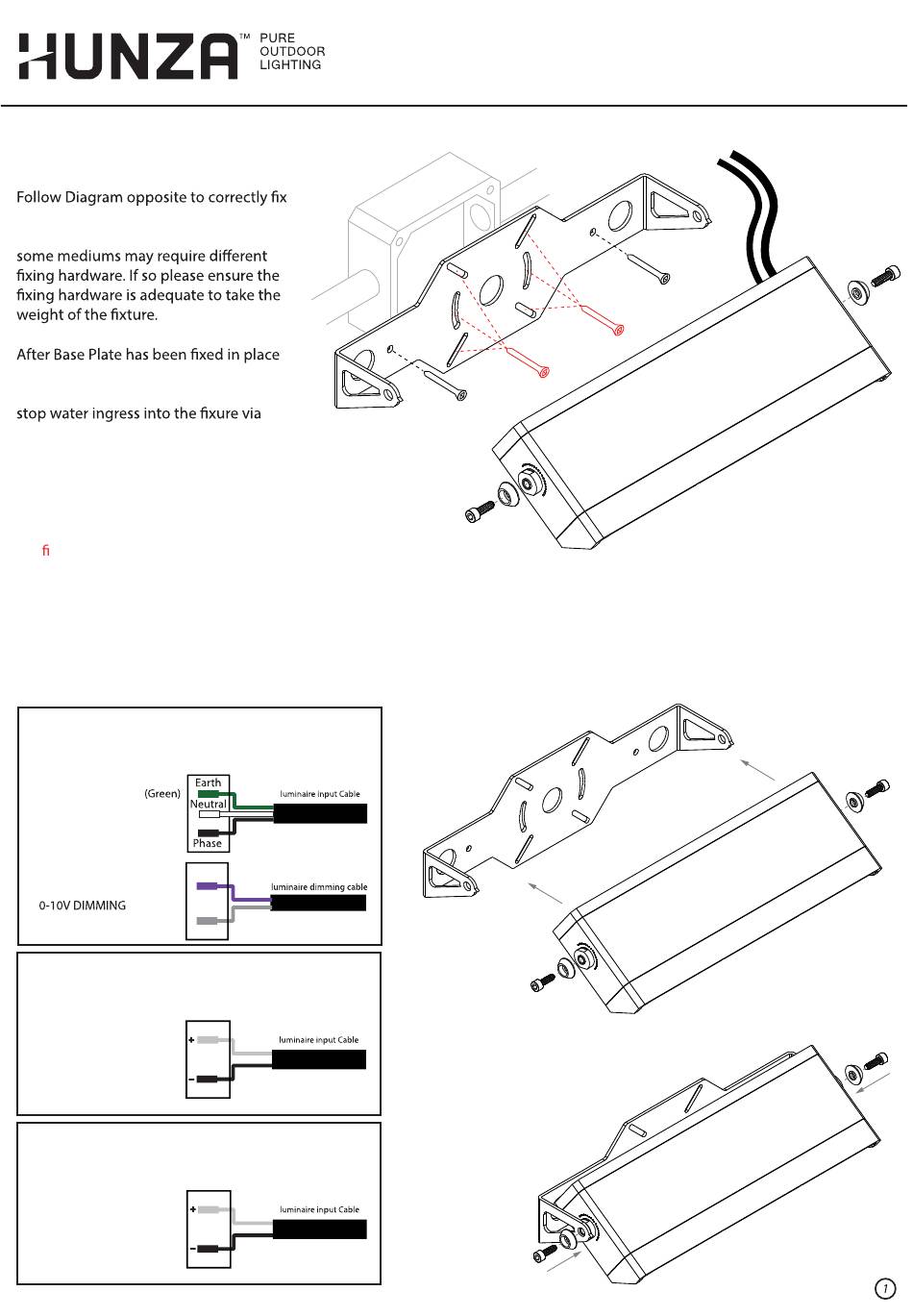

the Base Plate to the desired surface.
Fixing screws are provided however
make the input connections. All
connections should be water tight to
power cables.
See diagrams below
Warning: Do not connect secondary side (output) of a live
driver to the Fixture. This will cause a spike in voltage that
can damage the LED. When connecting or disconnecting
the tting always ensure the 120/240V power supply is
disconnected.
When using a photocell and/or timer we recommend using
devices with relay outputs as opposed to electronic. The
high frequency of electronic devices can lead to failure of
the LED driver.
120/240V (RETRO) CONNECTIONS
Make input connections according to diagram below.
INPUT: 100-277VAC
(white)
(Black)
(Purple)
(Grey)
24VDC INPUT CONNECTIONS
Make input connections according to diagram below.
(white)
24VDC CONSTANT
VOLTAGE
(Black)
NEGATIVE
REMOTE DRIVEN (SERIES) CONNECTIONS
Make input connections according to diagram below.
(white)
DRIVER OUTPUT:
CONSTANT
CURRENT 700mA
(Black)
Max, 37Vdc
100mm (4") junction box compatible
POSITIVE
POSITIVE
NEGATIVE
NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR
LOCAL ELECTRICAL AUTHORITY REGULATIONS, WITH WHICH
ALL INSTRUCTIONS HERE IN MUST COMPLY.
PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
