LG-Ericsson iPECS LIP-9010 Key Features Manual

Ericsson-LG Enterprise
iPECS LIP-9010 Handset Key Features Guide

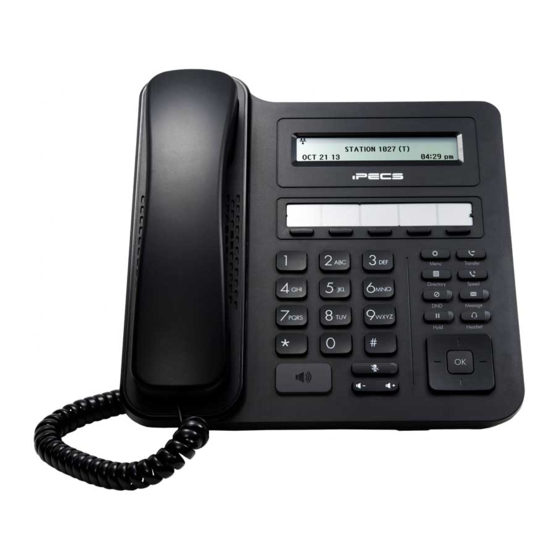

LIP-9010 Button Layout

10. Speaker
Phone Directory

Using the Phone Book Directory

Access the stored
telephone numbers in your system
Voicemail

Accessing your Voicemail

Listening to Voicemail (Options)

}
1.
2.
3. 4.
5. 6.
7. 8.
9.
Navigation
11. Volume
Press the Directory button followed by one of the following options:
Enter a minimum of 3 characters using the phone keypad (A = 2 + 1, B = 2 + 2 etc.)
Use the navigation key to select a number or a name and press OK
Press Send
Speed Dial (ALL):
Press the Speaker button
Dial the desired Speed Dial number or * to call the last dialled number
Press the Voicemail softkey (if programmed) or press the Message button
Select option 3 (Voicemail)
Enter Station Number followed by your Password
Once you have accessed your voice mail box the following options are available;
Main Menu:
Press 1: New Messages
Press 2: Saved Messages
Press 8: Set personal greeting & password
Press #: Disconnect
Press 0: Operator
Press 9: Repeat options
New Message Menu (Based on pressing 1 from Main Menu)
Press 1: Mew Messages (Press 1 to replay message)
Press 2: Skip to next message
Press 3: Delete current message
Press 4: Forward message to another user
Press 5: Call back the person who left the message
Press 6: Skip the current message
Button Guide
1.
2.
3.
4.
13. Flex keys
5.
6.
7.
8.
12. Call
log
9.
10.
11.
12.
13.
Menu: access the settings for your phone, such
as changing the font and display or changing the
Transfer: transfer the current active call or access
the Program menu while the phone is idle.
Directory: accesses the private, public and internal
phone books.
Speed: assign or use assigned speed dial numbers.
DND (Do-Not-Disturb): blocks incoming calls. You
can also activate Do-Not-Disturb while the phone is
ringing - this terminates the call and the caller will
get a busy tone.
Message: access your voicemail box.
Hold: place a call on hold – the caller will receive
on-hold music or comfort tones.
Headset: if a headset is plugged in this button allows
you to toggle between the headset and handset.
Mute: mute the call so that the caller cannot hear
your voice.
Speakerphone: toggle the speakerphone On and
Off during a call.
Volume control: adjust the Ring, Headset, Handset,
and Speaker volume.
Call Log: a list of calls received, dialed and missed.
Flex keys: A line, feature or quick dial can be
assigned to these 5 programmable buttons.
