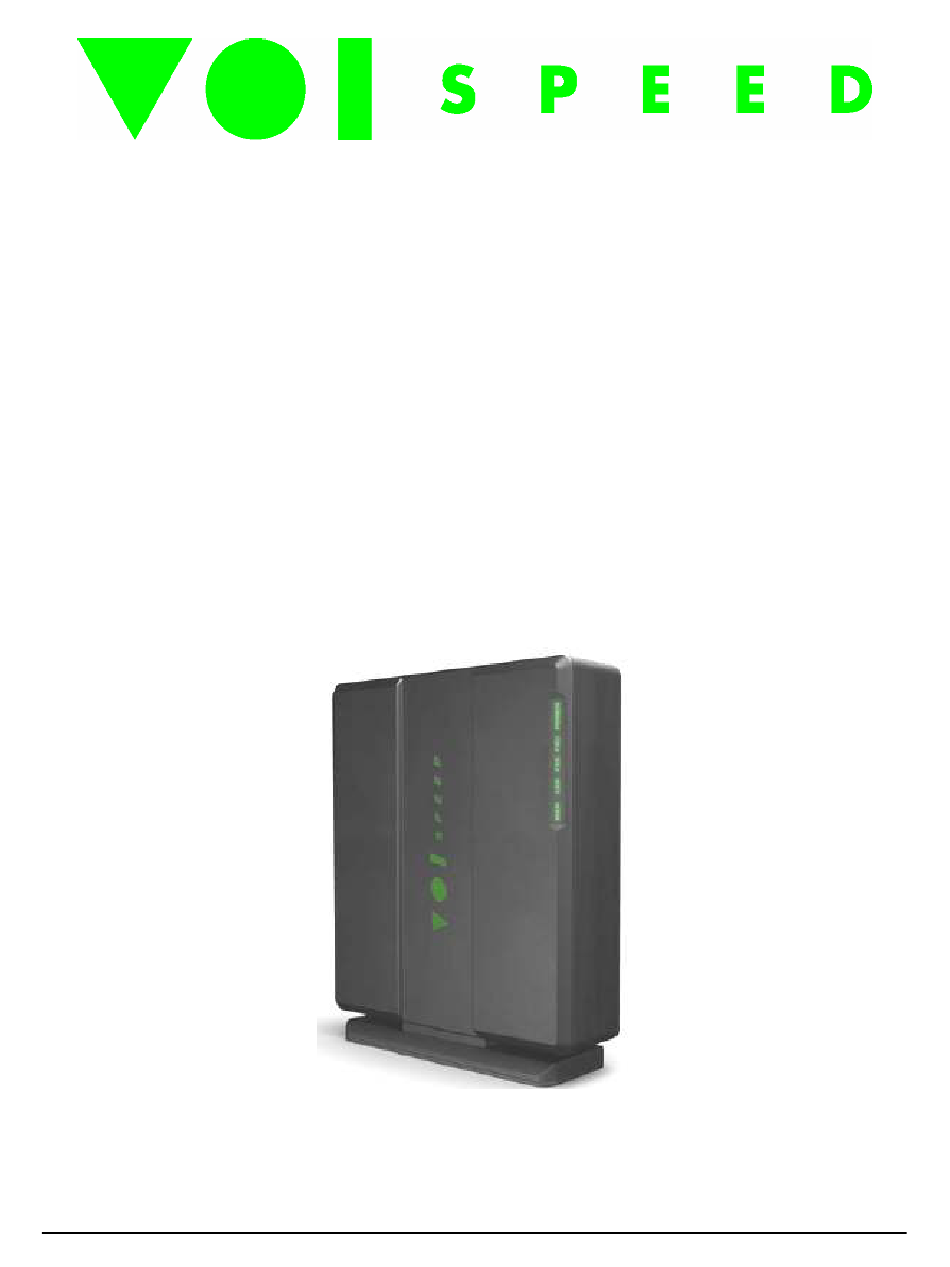

    NALOGUE DAPTER V-6016 SPEED V-6016 SPEED...
  • Page 2 User Manual © 2007 VOIspeed Ltd. – All rights reserved. Total or partial reproduction of this document is prohibited without prior written consent of the publisher. Such consent will only be granted in those instances when the source of the document is clearly stated.

  • Page 3: Table Of Contents

    6.1 - Current status ....................11 6.2 - Network Setting ....................12 6.3 - SIP Setting......................12 6.4 - Advanced settings.................... 14 6.4.1 Digital Map ....................14 6.4.2 DSP config ....................16 6.4.3 Account config ................... 18 V-6016 SPEED © VOI SPEED...
  • Page 4 6.4.4 Time config ....................18 System manage ..................19 6.5.1 Web update ....................19 6.5.2 FTP Update ....................19 6.5.3 Auto Update ....................20 6.5.4 Clear Config ....................20 6.5.5 Backup config..................... 20 6.5.6 Reboot ......................20 ANUAL © VOI SPEED...

  • Page 5: Introduction

    This manual provides general guidelines for a correct use of the product. In case you require further information on this product or to receive technical assistance please visit our website: www.voispeed.com. 3 - Security information Please read the security rules below that you should follow when using this device.

  • Page 6: Cleaning The Device

    power supply during storms. All maintenance work should be carried out by qualified personnel. 3.8 - Cleaning the device We suggest cleaning the equipment only using a slightly dump cloth. 3.9 - Product Disposal Our products are compliant with the European Directives 2002/95/CE, 2002/96/CE and 2003/108/CE regarding the limitation of use of lead, mercury, cadmium, chromium (VI) as well as some flame retardants and hazardous material within electric and electronic equipment and disposal.
  • Page 7 The Manufacturer. • Damages caused from any unintentional or deliberate human acts. • Damages caused from manumission or in conjunction with warranty labels being broken. V-6016 SPEED © VOI SPEED...

  • Page 8: General Information

    This warranty is only valid within the European Community. 4 - General Information The V-6016 is a stand-alone device that needs to be connected to the local area network. It is provided of two RJ11 ports to connect standard analogue telephone devices (telephones or faxes).

  • Page 9: List Of Components In The Package

    Before connecting the V-6016 adapter to the network, please make sure that both your network and VOIspeed server are working correctly. NB: before you can use any analogue devices connected to the V-6016 adapter you will need to create additional users at the server PBX.

  • Page 10: Basic Operations

    5 - Basic operations 5.1 - Manual configuration It is possible to send commands to the V-6016 adapter by entering a sequence of keys on the keypad of the device connected to the adapter. The list of commands is reported in...

  • Page 11: Current Status

    In order to access the web interface you will need to enter a username and password. As default the V-6016 offers two levels of access of the web interface. The highest level will allow a complete configuration of the device.

  • Page 12: Network Setting

    Alternative DNS IP address 6.3 - SIP Setting Two similar SIP setting sections enable the user to setup both lines of the V-6016 adapter. In the Basic Setting section you will need to enter the same parameters defined at the server PBX for the user connected to the relevant line.
  • Page 13 Phone Number Extension number for that line. Domain Realm Server PBX domain. When enabled, the V-6016 adapter will regularly Enable Register register at the PBX. Reported below are the Advanced SIP settings. We recommend not changing the default settings unless you are very familiar with the SIP protocol.

  • Page 14: Advanced Settings

    audio setting. Enables SIP signalling for message Enable PRACK acknowledgment. When enabled, it signals the server to send information packets on the same port where Enable Via rport messages are received. Useful when there is a NAT server between the PBX and the adapter. Call Service Setting configures specific services on the line.
  • Page 15 It determines the delay of time after which a call is started following the last key being pressed. The value (n) is expressed in seconds. NB: this value (Tn) must be placed at the end of the rule. V-6016 SPEED © VOI SPEED...

  • Page 16: Dsp Config

    Some examples: • 365 By dialling 365 the adapter will start a call to this number without waiting any delay. This means that it will not be possible to make any calls to numbers starting with 365. It is therefore recommended to add a delay when specifying any rules similar to this (in this case of 2 sec): 365T2.
  • Page 17 When choosing the G729 codec, here you can select the payload length. Below are the possible G729 Payload values: Length • 10ms • 20ms Signal Standard It determines the standard of analogue signalling. Possible values are: V-6016 SPEED © VOI SPEED...

  • Page 18: Account Config

    • United States • China It is the delay of time (between replacing and Hook Flash lifting the handset) that determines a ‘Flash’ Timer Min/Max event. This event places the active call on hold and allows the user to start a second call. Identification code for DTMF tones in compliance DTMF Payload with the RFC 2833 standard.

  • Page 19: System Manage

    • “Application update” to update the adapter’s internal firmware. • “Config file export” to export the adapter’s configuration file into a text file. • “Config file import” to upload a new configuration file. V-6016 SPEED © VOI SPEED...

  • Page 20: Auto Update

    6.5.3 Auto Update It is possible to setup the adapter so that it will regularly check for updates by connecting to an external FTP or TFTP server. In Update Mode you can choose whether to enable or disable this option. You can otherwise configure the adapter to check for updates on a regular basis (in this case you need to enter the delay in hours in Update Interval Time) or only when the system restarts.
