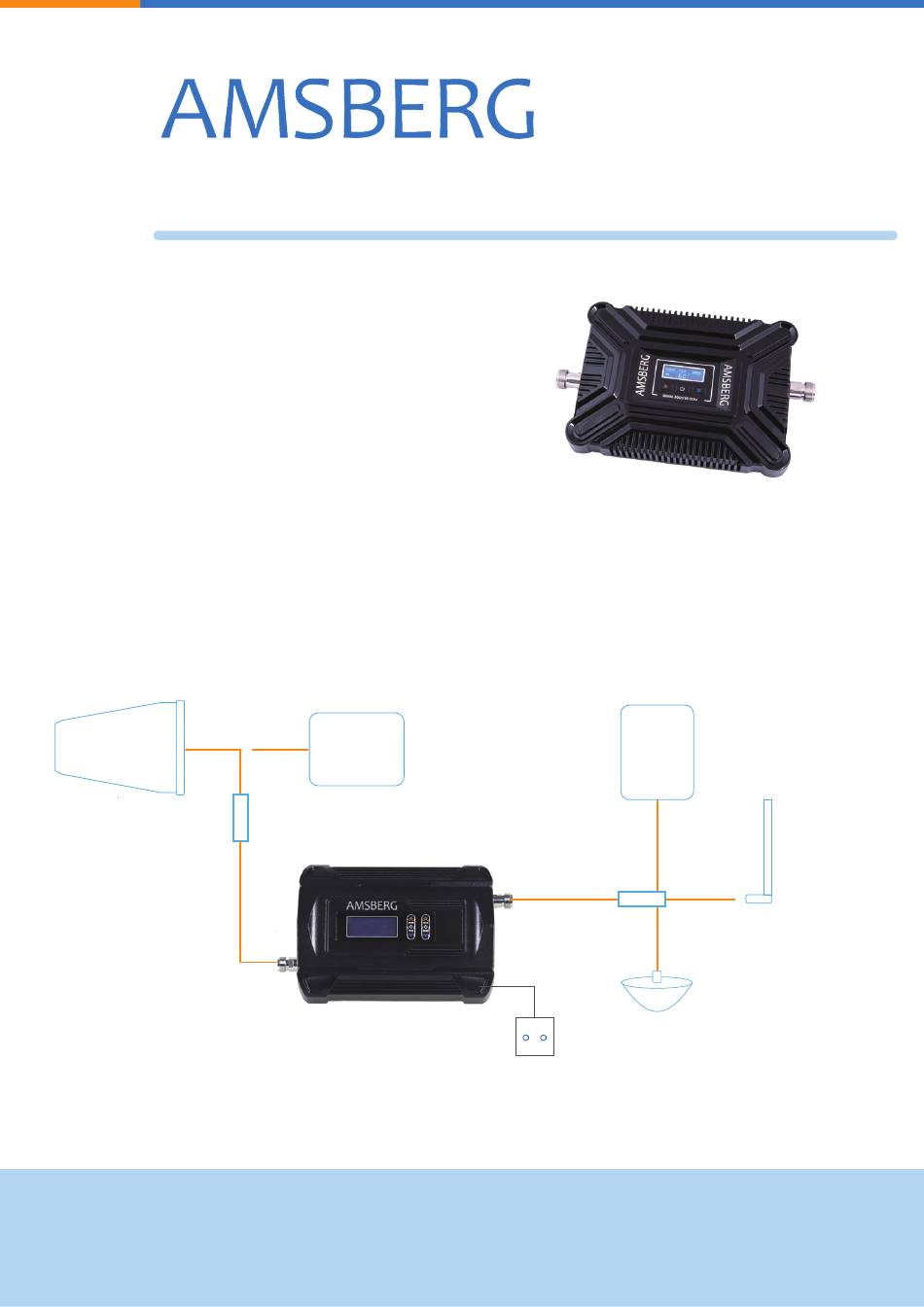

MOBILE SIGNAL BOOSTER
Instruction Manual
SKU: AG10(P) WR1800(P) WR2100(P)
Mobile phone repeater system is designed to take and amplify existing mobile phone signal in outdoor, and then
rebroadcast amplified mobile phone signals to indoor areas which have weak signal or no signal at all.
The mobile phone repeater works by placing an outdoor aerial on your roof. The outdoor antenna is high gain and can
receive even a weak signal and establishes a connection to the nearest mobile mast.
The outdoor aerial captures signal from your network provider's mast and passes it into your building through a cable.
The cable connects the mobile phone repeater, which amplifies and rebroadcasts a high signal within the building.
Logarithm Antenna
Surge Protector
Coaxial Cable
Remarks:
Recommended outdoor antennas are logarithm antenna and panel antenna. Recommended indoor antennas are panel antenna
ceiling antenna and whip antenna. You need to buy antennas, surge protector, splitter, coupler and cable separately.
www.amsberg-repeaters.com
Panel Antenna
Panel Antenna
Coaxial Cable
Splitter / Coupler
Wall Outlet
Whip Antenna
Ceiling Antenna
Advertisement
Table of Contents
Summary of Contents for Amsberg AG10P
-
Page 1: Instruction Manual
Splitter / Coupler Ceiling Antenna Wall Outlet Remarks: Recommended outdoor antennas are logarithm antenna and panel antenna. Recommended indoor antennas are panel antenna ceiling antenna and whip antenna. You need to buy antennas, surge protector, splitter, coupler and cable separately. www.amsberg-repeaters.com... - Page 2 Outdoor Antenna & Coaxial Cable Choose Location for Outdoor Antenna • The outdoor aerial should always install in outdoors. Even if you have a good attic or room at roof height, the antenna should still be placed outside for best results. •...
- Page 3 Signal Booster Unit Mobile Port BTS Port Connect to indoor antenna Connect to outdoor antenna Power Connect to power supply Screen & Indicator Power / Step Switch Show repeater status Turn on/off power RSSI indicator / Alarm Digitally control gain 1dB step Screen &...
- Page 4 Signal Booster Unit Select Location for Mobile Repeater Unit • Choose a dry, cool, ventilated area. Avoid places with humidity, like the kitchen or the bathroom. Avoid areas like closets. Avoid areas in direct sunlight, which can overheat the base unit. •...
- Page 5 Troubleshootings Q: My signal goes up and down and calls drop. If you're experiencing intermittent signal issues, that's usually caused by oscillation. In short, that means the signal from your outside antenna and your indoor antenna are "hitting" each other and causing interference. To fix this issue, move your two aerials farther apart from one another.
- Page 6 Troubleshootings Q: Outlines of signal bars are blinking. If you see a colorless outline of your signal bars while the signal bars are flashing, that means the repeater unit has no input signal. This could be caused by some different issues: •...
