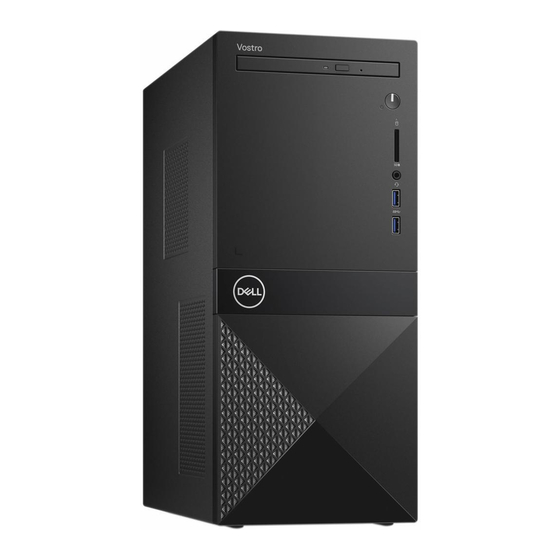

Dell Vostro 3671
Service Manual
Regulatory Model: D19M
Regulatory Type: D19M005

Advertisement

Table of Contents
loading

Related Manuals for Dell Vostro 3671

Summary of Contents for Dell Vostro 3671

  • Page 1 Dell Vostro 3671 Service Manual Regulatory Model: D19M Regulatory Type: D19M005...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019 -2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents 1 Working on your computer......................5 Safety instructions................................5 Turning off your computer — Windows 10........................5 Before working inside your computer..........................5 After working inside your computer............................6 2 Technology and components......................7 HDMI 1.4....................................7 USB features..................................7 3 Removing and installing components.................... 10 Recommended tools................................
  • Page 4 Removing the system board............................68 Installing the system board............................74 4 Troubleshooting......................... 79 Enhanced Pre-Boot System Assessment — ePSA diagnostics................... 79 Running the ePSA Diagnostics.............................79 Diagnostics................................... 79 Diagnostic error messages..............................80 System error messages..............................83 5 Getting help..........................84 Contacting Dell..................................84 Contents...

  • Page 5: Working On Your Computer

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 6: After Working Inside Your Computer

    CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell computers. 1. Connect any external devices, such as a port replicator or media base, and replace any cards, such as an ExpressCard.

  • Page 7: Technology And Components

    Technology and components This chapter details the technology and components available in the system. Topics: • HDMI 1.4 • USB features HDMI 1.4 This topic explains the HDMI 1.4 and its features along with the advantages. HDMI (High-Definition Multimedia Interface) is an industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any compatible digital audio/video source, such as a DVD player, or A/V receiver and a compatible digital audio and/or video monitor, such as a digital TV (DTV).
  • Page 8 Table 1. USB evolution Type Data Transfer Rate Category Introduction Year USB 2.0 480 Mbps High Speed 2000 USB 3.0/USB 3.1 Gen 1 5 Gbps Super Speed 2010 USB 3.1 Gen 2 10 Gbps Super Speed 2013 USB 3.0/USB 3.1 Gen 1 (SuperSpeed USB) For years, the USB 2.0 has been firmly entrenched as the de facto interface standard in the PC world with about 6 billion devices sold, and yet the need for more speed grows by ever faster computing hardware and ever greater bandwidth demands.
  • Page 9 480Mbps theoretical maximum throughput, making data transfer at around 320Mbps (40MB/s) — the actual real-world maximum. Similarly, USB 3.0/USB 3.1 Gen 1 connections will never achieve 4.8Gbps. We will likely see a real-world maximum rate of 400MB/s with overheads. At this speed, USB 3.0/USB 3.1 Gen 1 is a 10x improvement over USB 2.0. Applications USB 3.0/USB 3.1 Gen 1 opens up the laneways and provides more headroom for devices to deliver a better overall experience.

  • Page 10: Removing And Installing Components

    Removing and installing components Recommended tools The procedures in this document require the following tools: • Phillips #0 screwdriver • Phillips #1 screwdriver • Plastic scribe NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4 Screw list and images Table 2.

  • Page 11: System Board Layout

    System board layout 1. Power switch connector 2. SATA 2 Connector (white color) 3. SATA 1 Connector (black color) 4. Coin-cell battery Connector 5. SATA 3 Connector (black color) 6. SATA 0 Connector (Blue color) 7. HDD_ODD_PowerCable Connector (SATA_PWR) 8. HDD_ODD_PowerCable Connector (SATA_PWR) 9.

  • Page 12: Cover

    19. CPU Fan Connector (FAN_CPU) 20. Memory Connectors (DIMM1/DIMM2) Cover Removing the cover 1. Follow the procedure in Before working inside your computer. 2. To remove the cover: a) Remove the two (6-32x6.35) screws that secure the cover to the computer [1] and pull the cover away from the system [2]. b) Lift the cover.

  • Page 13: Installing The Cover

    Installing the cover 1. Place the cover on the computer and slide the cover forward until the latches snap-in [1]. Removing and installing components...
  • Page 14 2. Tighten the two (6-32x6.35) screws to secure the cover to the computer [2]. Removing and installing components...

  • Page 15: Front Bezel

    3. Follow the procedure in After working inside your computer. Front Bezel Removing the front bezel 1. Follow the procedure in Before working inside your computer. 2. Remove the Cover. 3. To remove the bezel: a) Lift the three latches to release the bezel from the chassis [1]. b) Lift the chassis, rotate and pull the front bezel away from the computer to release the tabs [2].
  • Page 16 c) Lift the chassis and remove the front bezel from the chassis Removing and installing components...

  • Page 17: Installing The Front Bezel

    Installing the front bezel 1. Position the bezel to align the tab holders on the chassis [1]. Removing and installing components...
  • Page 18 2. Rotate the bezel until the tabs clicks into place [2]. Removing and installing components...

  • Page 19: Hard Drive

    3. Install the Cover. 4. Follow the procedure in After working inside your computer. Hard drive Removing 3.5 inches hard drive assembly - optional 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover Front bezel 3.
  • Page 20 b) Remove the four (6-32x3.6) screws that secure the hard drive assembly to the base and front of the chassis. Removing and installing components...
  • Page 21 c) Slide and lift the HDD away from the chassis Removing and installing components...

  • Page 22: Installing 3.5 Inches Hard Drive Assembly - Optional

    Installing 3.5 inches hard drive assembly - optional 1. Insert the hard drive assembly into the slot on the computer until it clicks into place. Removing and installing components...
  • Page 23 2. Install the four (6-32x3.6) screws that secure the hard drive assembly to the base and front of the chassis. Removing and installing components...
  • Page 24 3. Connect the hard drive cable and the power cable to the connectors on the hard drive. Removing and installing components...

  • Page 25: Removing The 2.5 Inches Hard Drive Assembly - Optional

    4. Install the: Front bezel Cover 5. Follow the procedure in After working inside your computer. Removing the 2.5 inches hard drive assembly - optional 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover Front bezel 3.
  • Page 26 b) Remove the two (M3x3.5) screws that secure the hard drive assembly to the front of the chassis. Removing and installing components...
  • Page 27 c) Slide and lift the HDD away from the chassis Removing and installing components...

  • Page 28: Installing 2.5 Inches Hard Drive Assembly - Optional

    Installing 2.5 inches hard drive assembly - optional 1. Place the hard drive assembly into the chassis. Removing and installing components...
  • Page 29 2. Install the two (M3x3.5) screws that secure the hard drive assembly to the base and front of the chassis. Removing and installing components...
  • Page 30 3. Connect the SATA cable and the power cable to the connectors on the hard drive. Removing and installing components...

  • Page 31: Removing The M.2 Pcie Solid State Drive - Optional

    4. Install the: Front bezel Cover 5. Follow the procedure in After working inside your computer. Removing the M.2 PCIe Solid State Drive - optional 1. Follow the procedure in Before working inside your computer. 2. Remove the Cover. 3. To remove the Solid State Drive (SSD): a) Remove the one (M2x3.5) screw that secures the SSD to the system board [1] b) Slide the SSD from the connector on the system board [2].

  • Page 32: Installing The M.2 Pcie Ssd - Optional

    Installing the M.2 PCIe SSD - optional 1. Insert the SSD into the connector on the system board [1] 2. Replace the one (M2x3.5) screw that secures the SSD to the system board [2] Removing and installing components...

  • Page 33: Optical Drive

    3. Install the Cover. 4. Follow the procedure in After working inside your computer. Optical drive Removing optical drive assembly 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover 3. To remove the slim optical drive: a) Disconnect the data cable and power cable from the connectors on the optical drive assembly [1].
  • Page 34 c) Slide the optical drive assembly out of the computer. Removing and installing components...

  • Page 35: Installing Optical Drive Assembly

    Installing optical drive assembly 1. Place the optical drive into the optical drive slot. Removing and installing components...
  • Page 36 2. Tighten the two (M2x2) screws to secure the optical drive assembly to the computer [1]. 3. Route the data cable and power cable under the drive cage. 4. Connect the data cable and power cable to the connectors on the optical drive assembly [2]. Removing and installing components...

  • Page 37: Wlan Card

    5. Install the: Cover 6. Follow the procedure in After working inside your computer. WLAN card Removing WLAN card 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover 3. To remove the WLAN card: a) Loosen one (M2x3.5) screw to release the plastic tab that secures the WLAN card to the computer [1]. b) Remove the plastic tab to access the WLAN cables [2].

  • Page 38: Installing Wlan Card

    Installing WLAN Card 1. Insert the WLAN card to the connector on the system board [1]. 2. Connect the WLAN cables to the connectors on the WLAN card [2]. 3. Place the plastic tab on the WLAN card [3] and tighten one (M2x3.5) screw to secure the WLAN card to the system board [4]. Removing and installing components...

  • Page 39: Memory Modules

    4. Install the: Cover 5. Follow the procedure in After working inside your computer. Memory modules Removing memory module 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover 3. To remove the memory module: a) Push the memory module retention tabs on both sides of the memory module. b) Lift the memory module from the memory module connector on the system board.

  • Page 40: Installing The Memory Module

    Installing the memory module 1. Align the notch on the memory module with the tab on the memory module connector. 2. Press the memory module until the memory module retention tabs click into place. 3. Install the: Cover 4. Follow the procedure in After working inside your computer.
  • Page 41 b) Push the release tab [1] and lift the PCIe expansion card out of the computer [2]. Removing and installing components...

  • Page 42: Installing The Pcie Expansion Card

    Installing the PCIe expansion card 1. Pull the release latch backward to open. 2. Insert the PCIe expansion card to the connector on the system board. Removing and installing components...
  • Page 43 3. Secure the PCIe expansion card by pushing the card retention latch until it clicks into place. 4. Close the PCIe bracket [1]. 5. Replace the one (6-32x6.35) screw to fix the PCIe bracket [2]. Removing and installing components...

  • Page 44: Optional Card

    6. Install the: Cover 7. Follow the procedure in After working inside your computer. Optional card Removing the optional card 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover 3. To remove the optional card: a) Remove the one (6-32x6.35) screw to remove the PCIe bracket [1, 2].
  • Page 45 b) Lift the optional card out of the computer. Removing and installing components...

  • Page 46: Installing The Optional Card

    Installing the optional card 1. Insert the optional card to the connector on the system board. Removing and installing components...
  • Page 47 2. Close the PCIe bracket [1]. 3. Replace the one (6-32x6.35) screw to fix the PCIe bracket [2]. Removing and installing components...

  • Page 48: Power Supply Unit

    4. Install the: Cover 5. Follow the procedure in After working inside your computer. Power supply unit Removing power supply unit 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover Cooling shroud 3. Removing the Power supply unit (PSU): a) Disconnect the PSU cables from the connectors on the system board.
  • Page 49 b) Unroute the PSU cables from the retention clips [1, 2, 3]. Removing and installing components...
  • Page 50 c) Unroute the PSU cable from the metal clip [1], press the tab of the 8-pin power cables and disconnect it from the system board [2], and then remove 4 (6-32x6.35) screws to release the PSU [3]. Removing and installing components...
  • Page 51 d) Press the metal release tab, slide the PSU toward the back and lift it out of the computer. Removing and installing components...

  • Page 52: Installing Power Supply Unit

    Installing power supply unit 1. Insert the power supply unit (PSU) into the PSU slot and slide it toward the back of the computer until it clicks into place. Removing and installing components...
  • Page 53 2. Tighten the four (6-32x6.35) screws to secure the PSU to the computer [1], route the PSU cable from the metal clip [2] and insert the 8-pin power cables [3]. Removing and installing components...
  • Page 54 3. Route the PSU cables through the retention tabs [1, 2, 3]. Removing and installing components...
  • Page 55 4. Connect the PSU cables to the connectors on the system board. Removing and installing components...

  • Page 56: Cooling Shroud

    5. Install the: Cooling shroud Cover 6. Follow the procedure in After working inside your computer. Cooling shroud Removing the cooling shroud 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover 3. To remove the cooling shroud: a) Pry and release the tabs that secure the cooling shroud to the process fan [1, 2, 3].
  • Page 57 b) Lift the cooling shroud away from the computer. Removing and installing components...

  • Page 58: Installing The Cooling Shroud

    Installing the cooling shroud 1. Align the tabs on the cooling shroud with the securing slots on the computer. NOTE: Make sure the cooling shroud is placed such that the 'REAR' mark on the cooling shroud is towards the rear side of the system.
  • Page 59 2. Lower the cooling shroud into the chassis and press down on the shroud until it snaps into place [1, 2, 3]. Removing and installing components...

  • Page 60: Heat Sink Assembly

    3. Install the: Cover 4. Follow the procedure in After working inside your computer. Heat sink assembly Removing the heat sink assembly 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover Cooling shroud 3. To remove the heat sink assembly: a) Disconnect the fan cable from the connector on the system board.
  • Page 61 b) Loosen the 4 M3 screws in reverse order marked on the system board NOTE: Remove the screws that secure the heat sink to the system board in the order of the callouts shown [1, 2, 3, 4]. c) Lift the heat sink assembly away from the computer. Removing and installing components...

  • Page 62: Installing The Heat Sink Assembly

    Installing the heat sink assembly 1. Align the heat sink assembly with screw holders on the system board. 2. Tighten the four M3 screws to secure the heat sink assembly to the computer and system board. NOTE: Tighten the screws on the system board in the order of the callout numbers [1, 2, 3, 4]. Removing and installing components...
  • Page 63 3. Connect the fan cable to the connector on the system board. Removing and installing components...

  • Page 64: Coin-Cell Battery

    4. Install the: Cooling shroud Cover 5. Follow the procedure in After working inside your computer. Coin-cell battery Removing the coin cell battery 1. Follow the procedure in Before working inside your computer. 2. Remove the Cover. 3. To remove the coin cell battery: a) Press the side of the battery, that allows the battery to pop-up from the socket [1].

  • Page 65: Installing The Coin Cell Battery

    Installing the coin cell battery 1. Place the coin cell battery in its slot on the system board [1]. 2. Press the battery until it snaps back into place [2]. Removing and installing components...

  • Page 66: Processor

    3. Install the Cover. 4. Follow the procedure in After working inside your computer. Processor Removing the processor 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover Cooling shroud Heat sink assembly 3. To remove the processor: a) Press the release lever down and then move it outward to release it from the retention hook [1].

  • Page 67: Installing The Processor

    Installing the processor 1. Insert the processor in the processor socket. Ensure the processor is properly seated [1]. NOTE: Align pin 1 on the cpu with pin 1 on the motherboard CAUTION: Do not use force to seat the processor. When the processor is positioned correctly, it engages easily into the socket.

  • Page 68: System Board

    4. Install the: Heat sink assembly Cooling shroud Cover 5. Follow the procedure in After working inside your computer. System board Removing the system board 1. Follow the procedure in Before working inside your computer. 2. Remove the: Cover Front bezel Hard drive WLAN Memory module...
  • Page 69 Heat sink assembly Processor 3. To remove I/O panel cover: a) Disconnect the cable from the system board [1] b) Remove the one (6-32x6.35) screw that secures the I/O panel cover to the computer [2]. c) Slide the I/O panel cover [3]. 4.
  • Page 70 5. To remove the system board: a) Remove the eight (6-32x6.35) screws and one (6-32x4.8) screw for M2.SSD that secure the system board to the computer [1, 2]. Removing and installing components...
  • Page 71 Removing and installing components...
  • Page 72 b) Tilt the system board at 45–degrees, and then lift the system board out of the computer. Removing and installing components...
  • Page 73 Removing and installing components...

  • Page 74: Installing The System Board

    Installing the system board 1. Align the system board to the port connectors on the rear of the chassis and place the system board in the chassis. Removing and installing components...
  • Page 75 2. Tighten the eight (6-32x6.35) screws and one (6-32x4.8) screw for M2.SSD that secures the system board to the chassis. Removing and installing components...
  • Page 76 3. Connect the hard drive, optical drive, power supply unit cable, route the cables and speaker cables [1, 2, 3, 4, 5] to the system board. Removing and installing components...
  • Page 77 4. Place the I/O port bracket [1] and tighten the screw (6-32x6.35) [2] and connect the cable to the system board [3]. Removing and installing components...
  • Page 78 5. Install the: Processor Heat sink assembly Cooling shroud Expansion card Memory module WLAN Front bezel Cover 6. Follow the procedure in After working inside your computer. Removing and installing components...

  • Page 79: Troubleshooting

    Invoke diagnostics boot by either of the methods that are suggested below: 1. Power on the computer. 2. As the computer boots, press the F12 key when the Dell logo is displayed. 3. In the boot menu screen, use Up/Down arrow key to select the Diagnostics option and then press Enter.

  • Page 80: Diagnostic Error Messages

    One or more memory modules may be faulty or improperly seated. Reinstall the memory modules or, if necessary, replace them. DISK C: FAILED INITIALIZATION The hard drive failed initialization. Run the hard drive tests in Dell Diagnostics. DRIVE NOT READY The operation requires a hard drive in the bay before it can continue.
  • Page 81 Shut down the computer, remove the hard drive, and boot the computer from an optical drive. Then, shut down the computer, reinstall the hard drive, and restart the computer. If the problem persists, try another drive. Run the Hard Disk Drive tests in Dell Diagnostics. HARD-DISK DRIVE FAILURE The hard drive does not respond to commands from the computer.
  • Page 82 The operating system cannot find a specific track on the hard drive. SHUTDOWN FAILURE A chip on the system board may be malfunctioning. Run the System Set tests in Dell Diagnostics. If the message reappears, Contact Dell. TIME-OF-DAY CLOCK LOST POWER System configuration settings are corrupted. Connect your computer to an electrical outlet to charge the battery.

  • Page 83: System Error Messages

    [nnnn]. For help in consecutive times for the same error. resolving this problem, please note this checkpoint and contact Dell Technical Support CMOS checksum error RTC is reset, BIOS Setup default has been loaded. CPU fan failure CPU fan has failed.

  • Page 84: Getting Help

    Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: 1.
