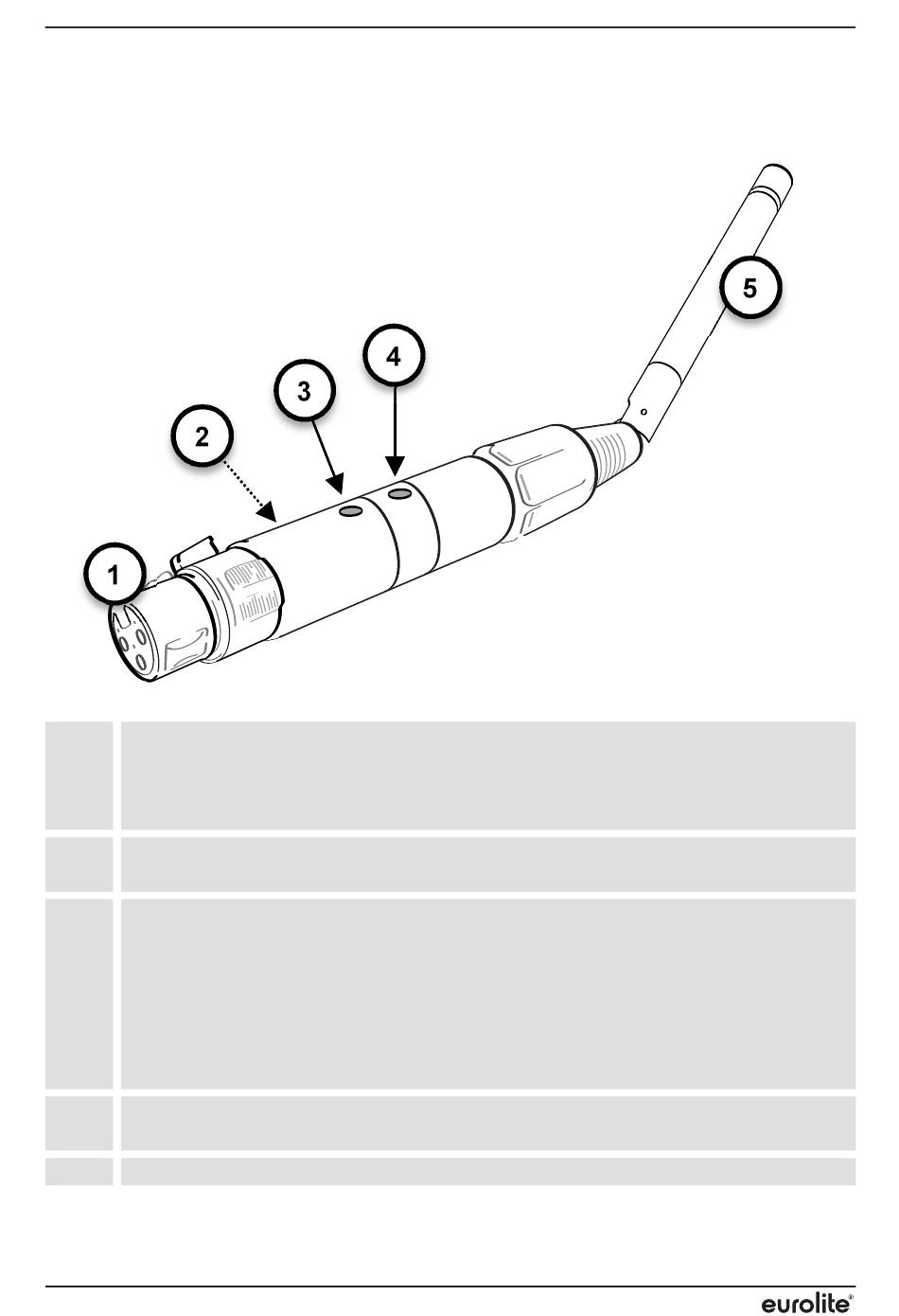

OPERATING ELEMENTS & CONNECTIONS
2
1
1 DMX512 connector
• Transmitter: 3-pin XLR mounting plug
• Receiver: 3-pin XLR mounting jack
• Phantom-powered receiver: 5-pin XLR mounting jack
2 Power input
Plug in the mains cable of the supplied power unit here.
3 Status indicator
• Lights permanently red at the transmitter when a DMX signal is
being transmitted.
• Flashes green at the receiver when a DMX signal is being
received.
• Shortly flashes red, green and blue after connecting the power
supply.
4 Recessed button
To change the transmission channel and pair the devices.
5 Antenna
