Installation Instructions for 81426
Hydraulic Lift Cart
500 lb. Capacity
Specifications
Capacity
500 lb.
9-1/4" to 28-1/2"
Lift Range
27-3/4" x 17-3/4"
Table Size
Important Safety Information
Assembly Precautions
1. Wear ANSI-approved safety goggles and heavy-duty gloves during assembly and use.
2. Keep assembly area clean and well lit.
3. Assemble only according to these instructions. Improper assembly can create hazards.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of drugs or medication.
Use Precautions
1. Do not exceed 500 lb. max weight capacity. Be aware of dynamic loading! Sudden load movement may briefly create
excess load causing product failure.
2. Use only on flat, level and hard surface capable of supporting the Lift Table and any item(s) placed on table. Evenly
distribute load on table to avoid tipping.
3. Use as intended only. Do not use Lift Table to lift or transport people.
4. Follow all hydraulic bleeding instructions specified in this manual.
5. This product is not a toy. Do not allow children to play with or near this item.
6. Use as intended only.
7. Do not adjust Safety Valve.
8. Keep clear of load while lifting and lowering.
9. Lower load slowly.
10. Do not use for aircraft purposes.
11. Inspect before every use; do not use if parts are loose or damaged.
12. Maintain product labels and nameplates. These carry important safety information.
Assembly Instructions
Read the entire IMPORTANT SAFETY INFORMATION section at the
beginning of this document including all text subheadings therein
before setup or use of this product.
1. With assistance, grip the Base (9) of the Hydraulic Lift Table and
lift it from the box. Do not just grip the Table. Doing so will leave the
unit's frame in the packaging
2. Alternative: set the packaging sideways, grip the Base, and slide
the Lift Table out of the box
3. Turn the Lift Table on its side.
.
1-800-345-4545 jegs.com

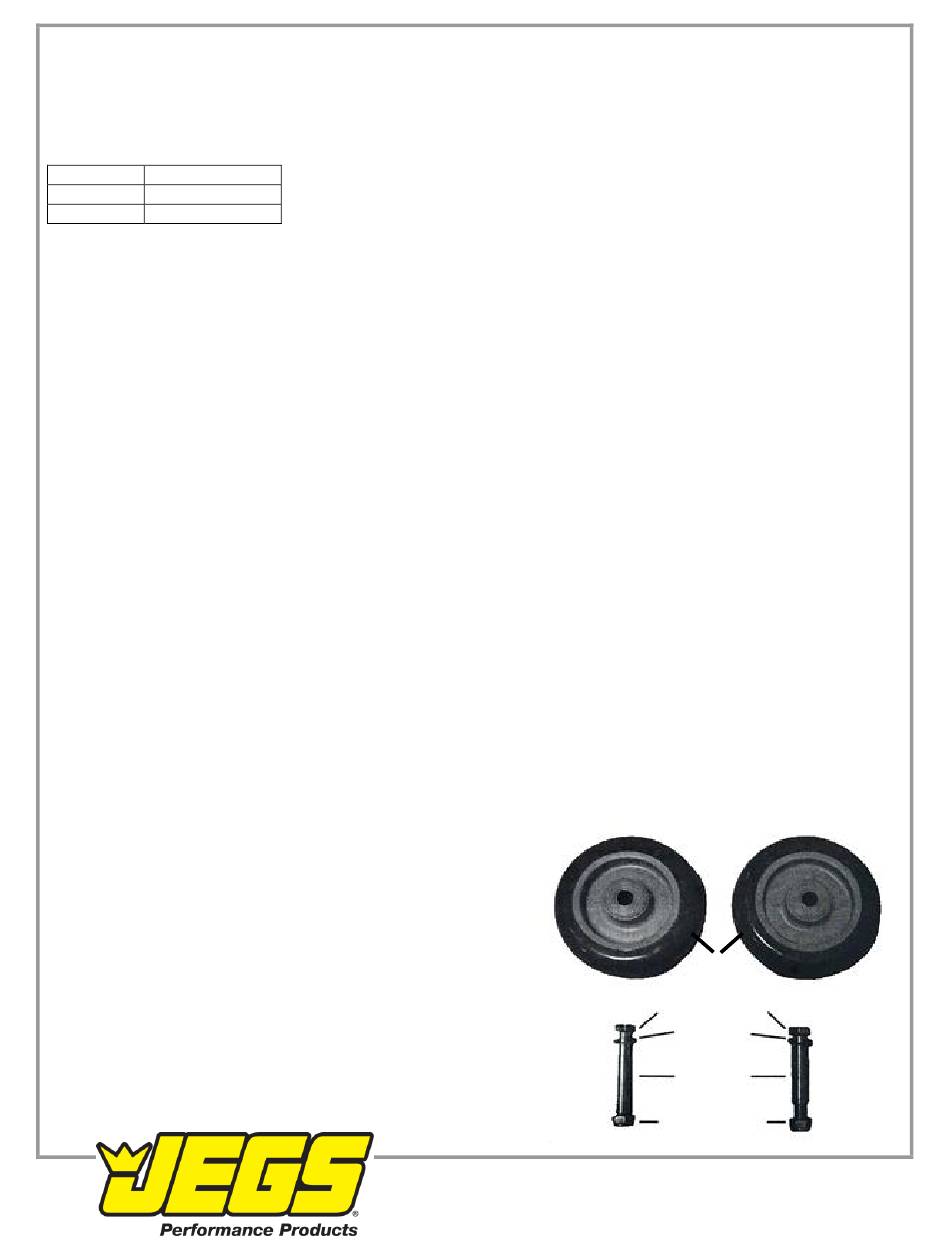

(12)
Wheels
Lock Nuts (11)
Washers (29)
(13)
Bushings
Bolts (14)
Figure A
Advertisement
Related Manuals for Jegs 81426
Summary of Contents for Jegs 81426
- Page 1 Installation Instructions for 81426 Hydraulic Lift Cart 500 lb. Capacity Specifications Capacity 500 lb. 9-1/4” to 28-1/2” Lift Range 27-3/4” x 17-3/4” Table Size Important Safety Information Assembly Precautions 1. Wear ANSI-approved safety goggles and heavy-duty gloves during assembly and use.
- Page 2 14. Test the Lift Table to make sure it functions properly before using it to lift a load. Lock Nut Figure B Connecting Rod (22) Handle (31) Bolt (35) Wrench Pump Lever Wrench (23) Figure C Bolt (20) Base (9) Figure D 1-800-345-4545 jegs.com...
- Page 3 Operating Diagram Control Lever Handle Lift Table Pump Lever Safety Bar Locking Caster Base 1-800-345-4545 jegs.com...
- Page 4 3. Carefully remove the rubber Fluid Plug (4a). 4. After the Fluid Plug is removed, swing the two Safety Bars back against their stops. 5. Squeeze the Control Lever to lower the Lift Table. This should purge the air out of the hydraulic system. 1-800-345-4545 jegs.com...
- Page 5 Hex Bolt M8 x 60 34 Roll Pin 35 Bolt M8 x 25 36 Jacket Retaining Ring 16 37 Spring Pin 8 x 40 38 Hex Bolt M10 x 30 Cotter Pin 39 Safety Bar Bushing Hex Nut M10 1-800-345-4545 jegs.com...
- Page 6 Main Assembly Diagram 1-800-345-4545 jegs.com...
- Page 7 40a Steel Ball 6.35 18a Screw M8 x 20 41a Steel Ball 5 19a Nut M8 42a Ball Seat 20a Cotter Pin 2.5 x 24 43a Spring 21a Pin 44a O-Ring 22a Release Valve Link 45a Adjusting Bolt 23a Washer 8 1-800-345-4545 jegs.com...
- Page 8 Assembly Diagram A - Ram 1-800-345-4545 jegs.com...
