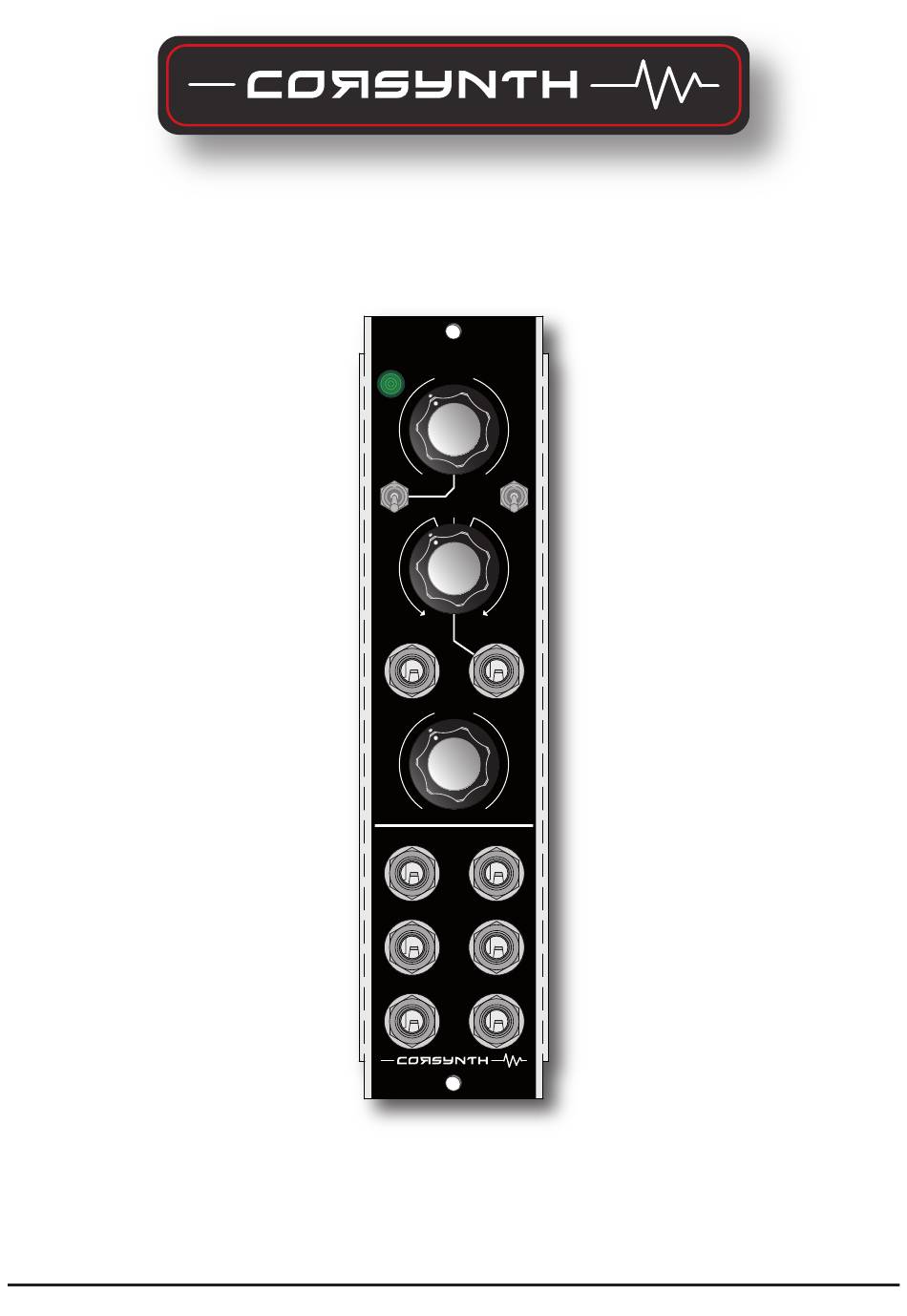

- Page 1 C105 VC NoISE / Lo-FI MKII C105 VC NOISE / LO-FI MKII SAMPLE FREQ HIGH NOISE SF MOD 2 LO-FI SF MOD 1 SF MOD 2 HP VCF CLOCK IN CLOCK OUT VCF CV HPF OUT LO-FI IN USER MANUAL...
- Page 2 - Internal white noise generator. LO-FI IN - Voltage controlled clock with two ranges : * Low : 0,2Hz to 125Hz * High : 125Hz to 44KHz - Clock input - Clock Output - 12db VC High Pass lter. HTTP://WWW.CORSYNTH.COM...
- Page 3 C105 VC NoIse / LO-FI MKII CORSYNTH C105 VC NOISE / LO-FI MKII Front Panel Description C105 VC NOISE / LO-FI MKII SAMPLE FREQ Clock frequency LED Sample frequency HIGH NOISE Sample frequency Sample input range switch selector switch SF MOD 2...
-
Page 4: Control Description
C105 VC NoIse / LO-FI MKII CORSYNTH CONTROL DESCRIPTION SAMPLE FREQ SAMPLE FREQ This control sets the clock frequency for the internal sample and hold circuit. The internal clock has two frequency ranges that can be selected using the range switch. -
Page 5: Clock Out
C105 VC NoIse / LO-FI MKII CORSYNTH SF MOD 1 SF MOD 1 Sample frequency modulation input 1. The input allow positive and negative signals which together with the value set by the SAMPLE FREQ potentiometer, the SF MOD 2... - Page 6 C105 VC NoIse / LO-FI MKII CORSYNTH HPF OUT HPF OUT High pass lter out. The lter’s input signal is the output of the sample and hold circuit. LO-FI IN LO-FI IN Input signal to be sampled. If nothing is patched to this input, the internal white noise generator is connected to it.
- Page 7 C105 VC NoIse / LO-FI MKII CORSYNTH HTTP://WWW.CORSYNTH.COM...
-
Page 8: Technical Data
Module Format : 5U, MU format ( Synthesizers.com, Moog ) Module Width : 1 MU ( Moog unit ) Module Depth : 52 mm ( 2,05 inches ) Power : +15V@45mA , -15V@44mA Power connectors : Synthesizers.com , MOTM ( 4 pin ) HTTP://WWW.CORSYNTH.COM... - Page 9 C105 VC NoIse / LO-FI MKII CORSYNTH MODULAR LEVEL MODULAR SYNTHS HTTP://WWW.CORSYNTH.COM...
