INSTALLATION AND SERVICE MANUAL

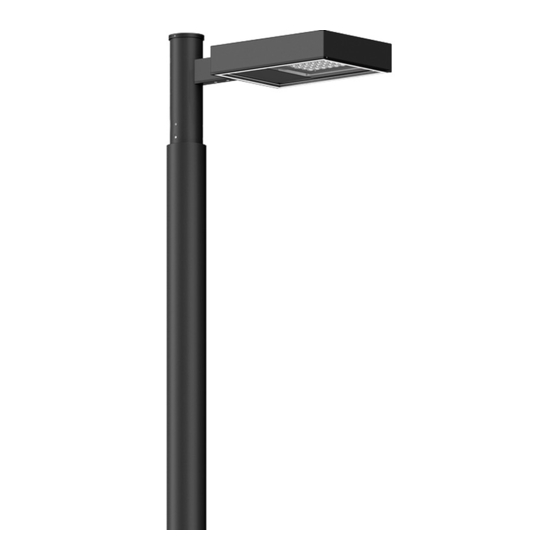

For Installation of Mustang street and area lighting luminaires.
Model. MS-90281-90282, MS-90291-90292
Product drawing (dimensions)
MS-90281-MS-90282
Weight : 13.5Kg.
Windage Area :0.17m².
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504
sales.cz@ligman.com
|
www.ligman.com
1
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M MS-90281/19/12/17/REV.3
MS-90291-MS-90292
Weight : 27.5Kg.
Windage Area :0.20m².
2
L
1/3
IP54 IK07 CLASS I
2,4,5
TOOL
N
Push
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
3
Advertisement
Related Manuals for LIGMAN MS-90282
Summary of Contents for LIGMAN MS-90282
- Page 1 TOOL Push ■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz. The control gear for other voltages and frequencies is available upon request, please consult us for more details. ■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
- Page 2 Torque:2.0Nm. Torque:10.6Nm. MAIN CABLE Torque:4.3Nm. POWER SUPPLY Torque:0.25Nm. M MS-90281/19/12/17/REV.3...
