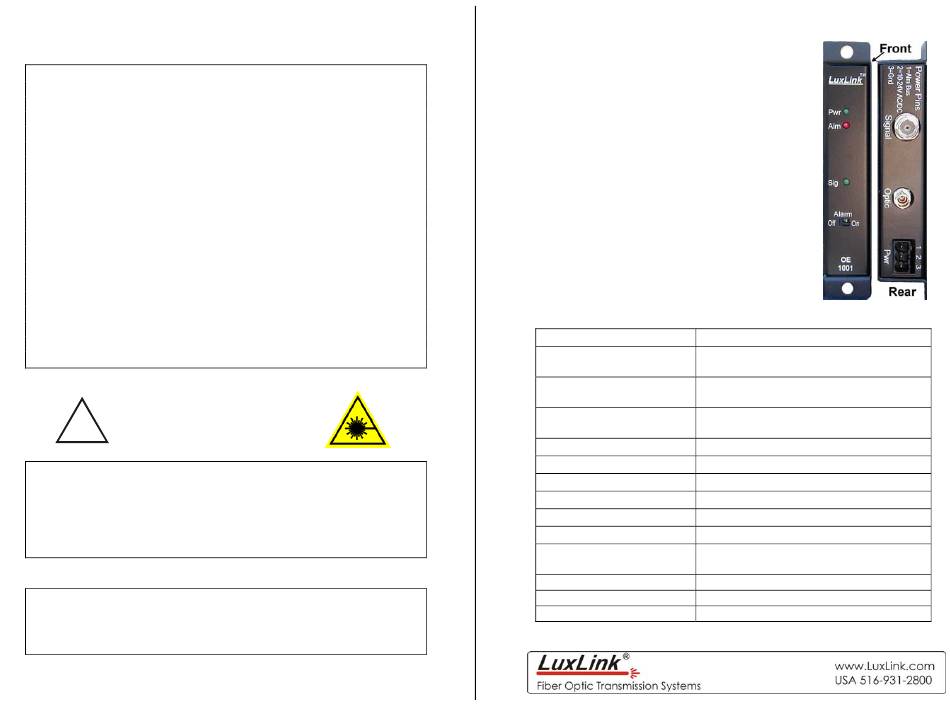

OPERATING INSTRUCTIONS

®
LuxLink
Optical to Electrical Converter
Model OE-1001
®
The LuxLink OE-1001 is an amplified analog
optical to electrical converter that is utilized to
view optical signals present in a fiber optic cable.
It is useful for research and development appli-
cations as well as for routine troubleshooting.
Technical Specifications
Bandwidth 50 KHz to 1.5 GHz (-3dB)
Rise time < 1 nsec for -3, -7 models
< 2 nsec for -1 models
Optical Input Power Max 0 dBm (1000uW) @850nm
-3 dBm (500uW) @1310/1550 nm
Optical Noise Level -20 dBm (10uW) rms @ 850nm
(typical) -23 dBm (5uW) rms @ 1310/1550nm
Dynamic Range 20 dB usable
Optical Connectors ST (-1, -3) FCPC (-7)
Electrical Output Level 1V peak to peak at max optical input
Output Impedance 50 Ohms
Operating Wavelength 660,850, 1310 or 1550nm
Indicators Power, Signal
Electrical Signal BNC
Connector
Temperature Range -35º to +75ºC
Power Requirements 11-24 VAC/DC @250ma
Physical Size (mm) 5.0"(127)L x 1.0" (25.4)W x 3.0"(7)D
All specifications are subject to change without prior notice.
