Summary of Contents for Schiller Grounds Care LITTLE WONDER monster Truckloader 8143-06-01

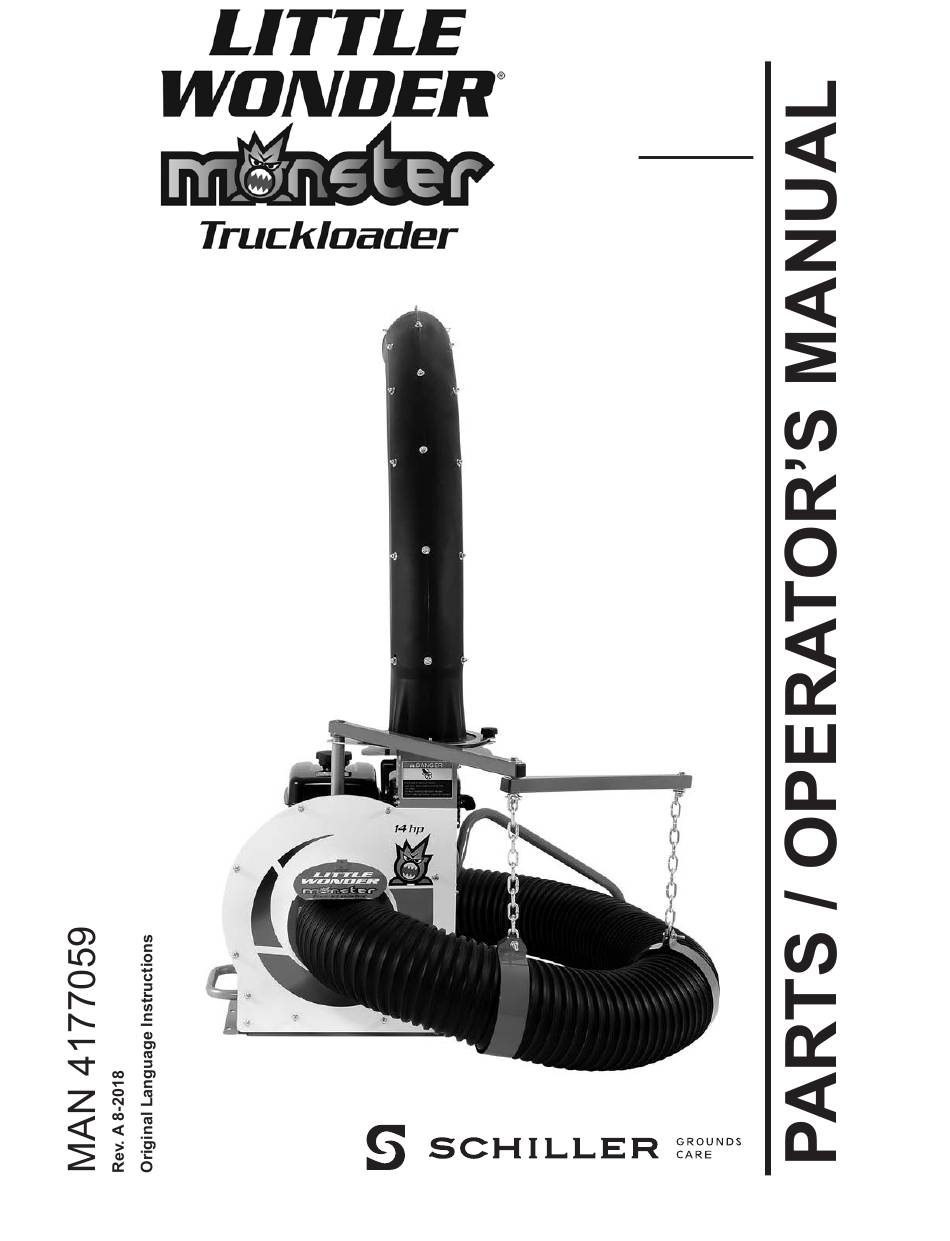

- Page 1 MODEL: 8143-06-59 14 HP Kohler Skid Mount...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
TRUCKLOADER IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder TruckLoader. This professional truckloader was designed to the highest standards to ensure many hours of uninterrupted service. This machine comes with an Operators / Parts Manual. -
Page 4: Safety
SAFETY TRUCKLOADER NOTICE !!! This symbol means: ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Little Wonder strongly warns against, rejects and disclaims any modifications, add-on accessories or Signal word definitions product alterations that are not designed, developed,... - Page 5 SAFETY TRUCKLOADER PREPARING FOR SAFE OPERATION Operator preparation and training Read the Operation & Safety Manual If an operator or mechanic cannot read English, it is the owner's responsibility to explain this material to them. If any portion of this Site preparation and circumstances material is unclear, contact your factory representative for clarification.
- Page 6 SAFETY TRUCKLOADER OPERATION SAFETY Interrupting operation Before leaving the operator's position: In general - Move throttle to the SLOW position. Use extra care when loading or unloading the - Shut off the engine by moving the switch to the truckloader onto a trailer or truck. OFF position.
- Page 7 SAFETY TRUCKLOADER MAINTENANCE SAFETY Rotating Impeller WARNING In general Don't attempt to remove materials from intake or discharge when unit is running Maintain machine according to manufacturer's or impeller is rotating. schedule and instructions for maximum safety Fan coasts after the engine is and best results.
- Page 8 SAFETY TRUCKLOADER ENGINE Don't run engine if there is an accumulation of debris around the muffler and cooling fins. Don’t run engine while electrical system causes spark outside the cylinder. Don't touch hot mufflers, cylinders or cooling fins as contact may cause serious burns. EQUIPMENT IS SHIPPED WITHOUT OIL! Refer to engine manufacturers instruction manual for instructions on filling the oil.
-
Page 9: Labels
LABELS TRUCKLOADER 4165513 4165515 THROWN OBJECT HAZARD: -Keep bystanders at least 15m away. ROTATING BLADES: -Direct discharge into a suitable CUT / AMPUTATION HAZARD receptacle. -Keep hand out of blower housing. -Stop engine and remove spark plug wire before cleaning or servicing. 4165512 HOT SURFACE: BURN HAZARD... - Page 10 LABELS TRUCKLOADER Rotating Fan: CUT / AMPUTATION HAZARD -Keep hands and and other body parts out of blower housing. Thrown Object Hazard: Before Servicing: -Keep bystanders away. -Stop engine. -Direct discharge into a -Remove key (if applicable). suitable receptacle. -Remove spark plug wire(s). -Read, understand and Wear Personal Protective obey Operator Manual.
-
Page 11: Set-Up Instructions
SET UP INSTRUCTIONS TRUCKLOADER SET-UP LITTLE WONDER TRUCKLOADER DEBRIS RECEPTACLE 5. Assemble the boom assembly in the receiver tube on top of the fan housing. Connect the hose to the inlet flange. Insert the adaptor, turn to lock and secure in The Truckloader is intended to be used DEBRIS RECEPTACLE place with the locking knobs. - Page 12 SET UP INSTRUCTIONS TRUCKLOADER Skid Mount Application: Trailer mount or permanent truck mount: To use the truckloader as a skid mount, supply a suitable surface for the unit to sit on and secure with 3/8” fasteners. If the surface is a wood deck of 2”...
- Page 13 SET UP INSTRUCTIONS TRUCKLOADER INSTALL DISCHARGE CHUTE TO POWER UNIT 1. Slide the flange clamp plate over the discharge chute deflector down to the flange. 2. Orient the discharge chute with liner so its flange is facing the top of the Shredding truckloader housing, and slide the flange clamp plate over the four housing flange studs.
-
Page 14: Set-Up Instructions
SET UP INSTRUCTIONS TRUCKLOADER INSTALL HOSE AND BOOM ARM TO 6. Get boom arm assembly and attach chains to hose bands with bolts and nuts. HOUSING (SEE FIGURE 1 FOR ASSY) 7. Place boom arm pivot shaft into housing tube. 1. -
Page 15: Controls
CONTROLS TRUCKLOADER SWITCH (A) Move to the “OFF” position to stop the engine. Move to the “ON” position before starting engine. THROTTLE (B) Controls engine speed and the amount of air being blown. CHOKE (C) Move to the “CHOKE” position to apply the choke. -
Page 16: Operation
OPERATION TRUCKLOADER INTENDED USE This unit is intended for vacuuming leaves, clippings and other similar sized organic material from the ground into a truck or trailer. Large sized or long stringy material will tend to clog. Vacuuming sand, rocks, and hard litter will shorten the life of this machine and may damage the machine or parts of it. - Page 17 OPERATION TRUCKLOADER OPERATING Removing Clogs ( continued) This machine has been designed for two methods of CAUTION SHOULD BE USED WHEN CLEARING vacuuming debris: DEBRIS FROM INSIDE THE HOUSING. GLOVES With the handle of the Intake Nozzle in the SHOULD BE WORN AS SHARP EDGES ON THE operator’s hands, move the nozzle back and forth IMPELLER OR IN THE DEBRIS MAY BE PRESENT.
-
Page 18: Maintenance / Storage
MAINTENANCE / STORAGE TRUCKLOADER DAILY MAINTENANCE HOUSING LINER REPLACEMENT Inspect the intake hose connector to make sure it Before replacing liner stop engine. is securely fastened to the intake cover assembly Put engine switch in OFF position. Inspect the hose, chute, chute liner, and housing Remove spark plug wire so fan movement liner for wear. -
Page 19: Maintenance / Storage
MAINTENANCE / STORAGE TRUCKLOADER STORAGE To prevent possible explosion or ignition of vaporized fuel, do not store equipment with fuel in tank or carburetor in an enclosure or enclosed area with an open flame (for example, a furnace or water heater pilot light.) Before the equipment is put into storage for any period exceeding 30 days, the following steps... -
Page 20: Specifications
SPECIFICATIONS TRUCKLOADER Model 8143-06-01 Engine 14HP Kohler CH440 ® Displacement 429 (24.7) (cu. in) Starter Pull Start Fuel Capacity 1.85 Gal. Oil Capacity 1.4 qt (1.3 Liters) Vacuum Hose 8”dia.x 10’ Discharge 7” Mounting Requirements • 2” square Class III or Class IV (Swing Away, Receiver Hitch) •... - Page 21 PARTS TRUCKLOADER...
- Page 22 PARTS TRUCKLOADER ITEM PART NO. DESCRIPTION QTY. Engine Base MP020400.31 Housing MP020401.31 Housing Cover MP020402.10 Flap MP020403.17 Impeller MP020404 Hose Adapter MP020405.17 Retainer, Liner MP020406.31 Shield-Heat MP020407.31 Hose Band MP020408.17 Nozzle MP020409.17 One Piece Tube Handle MP020410.17 Boom Mast MP020411.17 Boom Arm MP020412.17 Stand-Off, Heat Shield...
-
Page 24: Warranty
IC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE LITTLE WONDER ® SCHILLER GROUNDS CARE, INC. 1028 STREET ROAD, P.O. BOX 38 SOUTHAMPTON, PA 18966 PHONE 877-596-6337 • FAX 215-357-8045 www.littlewonder.com ©2012 Schiller Grounds Care, Inc. All Rights Reserved.
