Viatek UOF3-MC01-AS20KM User Manual

Fast Media Converter
single mode single fiber SC 20km
A: Transmitter 1310/1550nm B:Receiver 1550/1310nm
It is fast ethernet fiber optic transmission equipment which can converter between two
different network cable and optical fiber transmission medium. Support 100Mbps network
bandwidth. This product can be used in pair and also can be used with other equipment. It is
widely used in surveillance, home network fiber, etc.

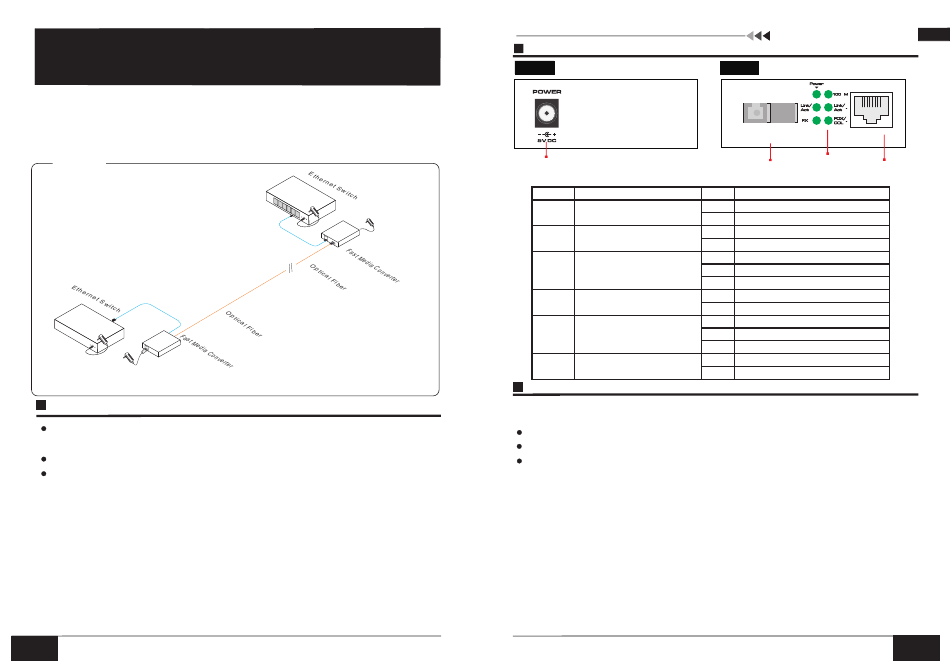

Application

Feature

Provide 100Mbps 1 fiber optic port and 1 Ethernet port which can converter between
10/100BASE-TX and 100BASE-FX;
Compatibility with IEEE 802.3u 100BASE-TX/FX;
Support 10/100Mbps full/half duplex automatic adaptation, support
automatic MDI/MDIX.
1

Board Diagram

Rightside
Power Input
LED Indicator Instruction：
LED Function
PWR Power
FX Fiber Port Signal Detection
Link/Act Fiber Port Connection Status
100M Ethernet Port Rate
Link/Act Ethernet Port Connection Status
FDX/COL Ethernet Port Full Duplex

Installation

Please check the following items before installation. If any missing, please contact the
dealer.
Fast Media Converter
Power Adapter
User Manual

Installation Steps

1) Please turn off the power related to the device before installation;
2) Please check if the network cables being taken up by other device;
3) Please connect LAN port of Converter and NVR or network device like computer with
network cable;
4) Use a optical fibers with single-mode one fiber connect with fiber port of two
Converters;
5) Please check if the installation is correct and power the system;
6) Please check if the network is working.
Fast Media Converter
Leftside
Power&Fiber
Copper Port
Fiber Port
LED Indicator
Status Instruction
On Power on
Off Power off
On Fiber signal receive well
Off No fiber signal input
On Fiber port connect well
Flicker Connect well, with data transmission
Off Fiber port without connect
On 1000M
Off 100M
On Ethernet port connect well
Flicker Connect well, with data transmission
Off Ethernet port without connect
On Full Duplex
Off Half Duplex
1pc
1pc
1pc
2
