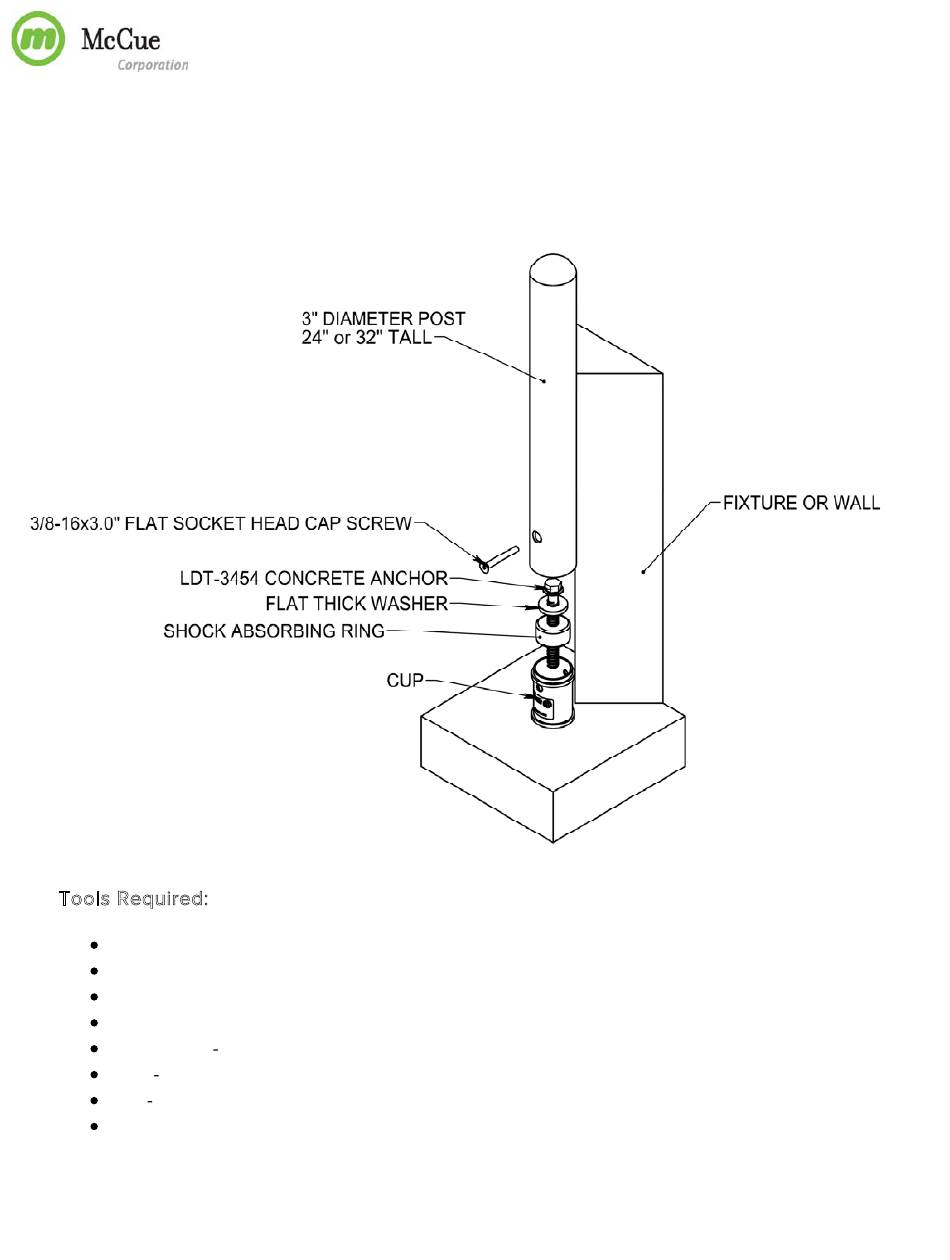

Installation Instructions
Tools Required:
Hammer drill with 5/8" diameter carbide bit
Tape measure
Pencil or marker
Impact driver with 15/16" socket head
7/32" hex L key
LDT 3454 anchor (included)
3/8 16x3.0" flat socket head cap screw included
Broom to dust pan
Questions? Call McCue Customer Services at 800.800.8503
Patent Pending
Rev.201111209
1 of 6
Advertisement
Table of Contents
Summary of Contents for McCue CartStop FlexCore Post 3
-
Page 1: Installation Instructions
Pencil or marker Impact driver with 15/16" socket head 7/32" hex L key LDT 3454 anchor (included) 3/8 16x3.0" flat socket head cap screw included Broom to dust pan Questions? Call McCue Customer Services at 800.800.8503 1 of 6 Patent Pending Rev.201111209... - Page 2 Trace a circle around the inside of the cup onto floor. Using a hammer drill, drill a hole that is 5/8" diameter and a minimum of 3-1/2" deep. Remove any dust and debris from and around the hole. Questions? Call McCue Customer Services at 800.800.8503 2 of 6 Patent Pending...
- Page 3 Tighten the anchor using an impact driver with a 15/16" socket. Important: grasp the cup with your hands and tighten the anchor until the cup feels solid and cannot be moved by hand. Questions? Call McCue Customer Services at 800.800.8503 3 of 6 Patent Pending...
- Page 4 The post has two holes in it. Rotate the post so that the bigger hole in the post lines up with the front hole of the cup. The bigger hole in the post accommodates the head of the screw. Questions? Call McCue Customer Services at 800.800.8503 4 of 6 Patent Pending Rev.201111209...
- Page 5 Use a 7/32" hex L key to turn the screw clockwise and secure the post to the cup. Fully tighten the screw until the head of the screw is flush with the outside of post. Questions? Call McCue Customer Services at 800.800.8503 5 of 6 Patent Pending Rev.201111209...
- Page 6 Step 5: Installation is Complete Questions? Call McCue Customer Services at 800.800.8503 6 of 6 Patent Pending Rev.201111209...
