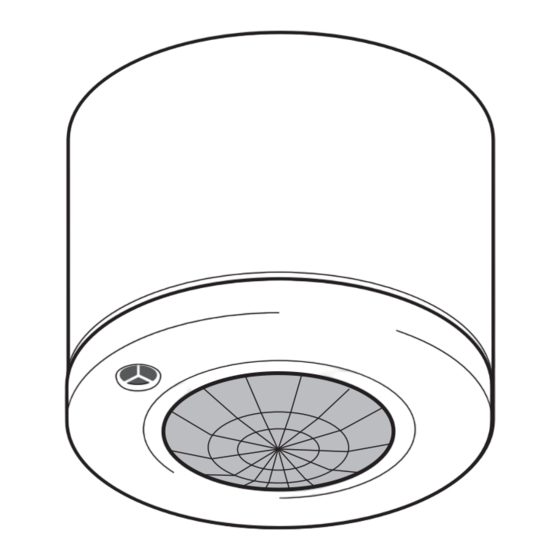

Silver Series LightSpot with photocell
MS1201PF / MS1201PSM
MS1221PF / MS1221PSM
MS1201PF
MS1221PF
Installation and Commissioning
HP2000, HP10 or HP18 for MS1201PF/SM
HP2000 or HP10 for MS1221PF/SM
Please note that only the HP2000 offers the full range of programming options
User override available via HC5 or HC6 Hand-held Controllers
by Honeywell
MS1201PSM
MS1221PSM
Instructions
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4231G
Advertisement
Related Manuals for Honeywell Silver Series
Summary of Contents for Honeywell Silver Series
- Page 1 Honeywell Silver Series LightSpot with photocell MS1201PF / MS1201PSM MS1221PF / MS1221PSM MS1201PF MS1221PF MS1201PSM MS1221PSM Installation and Commissioning Instructions Note: Infrared Programmer required for commissioning HP2000, HP10 or HP18 for MS1201PF/SM HP2000 or HP10 for MS1221PF/SM Please note that only the HP2000 offers the full range of programming options...
- Page 2 Silver Series LightSpot with photocell The Silver Series LightSpot is a high performance presence detector with photocell. In all operating modes, the photocell can hold lights off as a vacant area becomes occupied, and if the light level falls too low during the period of occupancy, the lights switch on.
- Page 3 HP10 Parameter Options for MS1201P / MS1221P MOVEMENT DETECTOR PHOTOCELL 24 Hr Cycle Please note that additional MODE AUTOMATIC POWER UP = ACTIVE OPERATION parameters are available PHOTOCELL via the HP2000 USED ENABLED * Operates on R2 if Twin-Output Unit, R1 on Single-Output Unit. OFF DELAY OFF DELAY If controlling water with Single-...
- Page 4 Setting the Photocell (Photocell only affects the ‘Live Out’ output) If the lights are not already on, switch them on manually by pressing ‘Utilities/User Remote/Luminaire+/OK’ [HP2000], or ‘Up’ [HP10] or ‘On’ [HP18]. Fluorescent lights do not reach full output until up to 15 minutes after being switched on, so ensure that the lights are fully warmed up before continuing.
