Summary of Contents for Slam Specialties MC.2

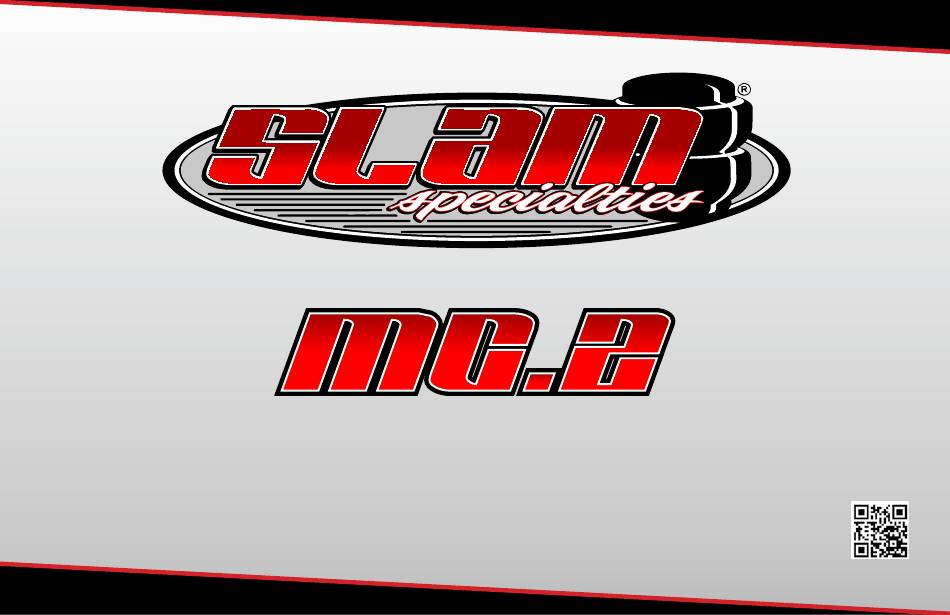

- Page 1 M A N U A L C O N T R O L L E R i n s t a l l a t i o n i n s t r u c t i o n s Ver.
- Page 2 Microprocessors and solid state drivers offer a fast reliable response, while communicating with each other over a pair of wires making the unit easy to install and flexible to move. The MC.2 manual controller handheld is LED back-lit, and can be customized to your personal preference.
- Page 3 Properly connect your MC.2 by using the supplied wire harness. Connect the RED wire to a +12v ignition source by using the supplied wire connec- tors. Connect the YELLOW wire direct to a +12v battery source by using the supplied wire connectors. DO NOT REMOVE THE INSTALLED 10A FUSE!! Use the supplied ring terminal to ground the BLACK wire to your vehicle chassis.
- Page 4 Once the Molex connector has been removed follow the wire colors in fig. 3 to connect to the corresponding installed valves using the supplied bullet connectors. If you do not want to cut the connectors off, an optional MC.2 har- ness is sold separately (contact 559-348-9038). Valve Wiring fig.
- Page 5 When your MC.2 is powered for the first time you will need to set the valve placement and handheld wire orientation. The MC.2 will default to our factory valve orientation (fig.4) matching the wiring layout in (fig.3). You can select any of the five preset valve orientations that fits your build best using fig.5 (note: re-routing of airlines may be needed).
- Page 6 Setting the wire orientation will allow you to use the MC.2 handheld controller with the wire coming from the bottom or the top of the controller. Once you set your orientation it will be saved, but can be changed if needed. After setting your valve position option the handheld will have a steady RED led, blinking RED led, and steady BLUE led.
- Page 7 The back panel of your MC.2 handheld is removable giving you access to disconnect and remove the cable from your handheld. This is necessary if you are removing the handheld for maintenance or for replacement of the cable. Start by locating the slots on the side of the back panel and lift the center with your fingernails or a non-abrasive tool.
- Page 8 fig.9 With the back panel removed you can remove the cable from the handheld. This is done by sliding the cable/connector up toward the center of the handheld. This will unlock the connector from the bezel as well as undo the spring loaded connec- tion.
- Page 9 For more information, FAQ, and trouble shooting visit us online at http://www.slamspecialties.com/W/diagrams...
- Page 10 Notes:...
- Page 11 To get your Slam Gear contact us by phone at 559.348.9038 or by email at info@slamspecialties.com...
- Page 12 Like us on Facebook @slam_specialties SLAM SPECIALTIES 5845 E. Terrace Ave. Fresno, CA 93727 PH: 559.348.9038 FX: 559.348.9063 Email: info@slamspecialties.com Web: www.slamspecialties.com...
