Summary of Contents for RND lab 355-00009

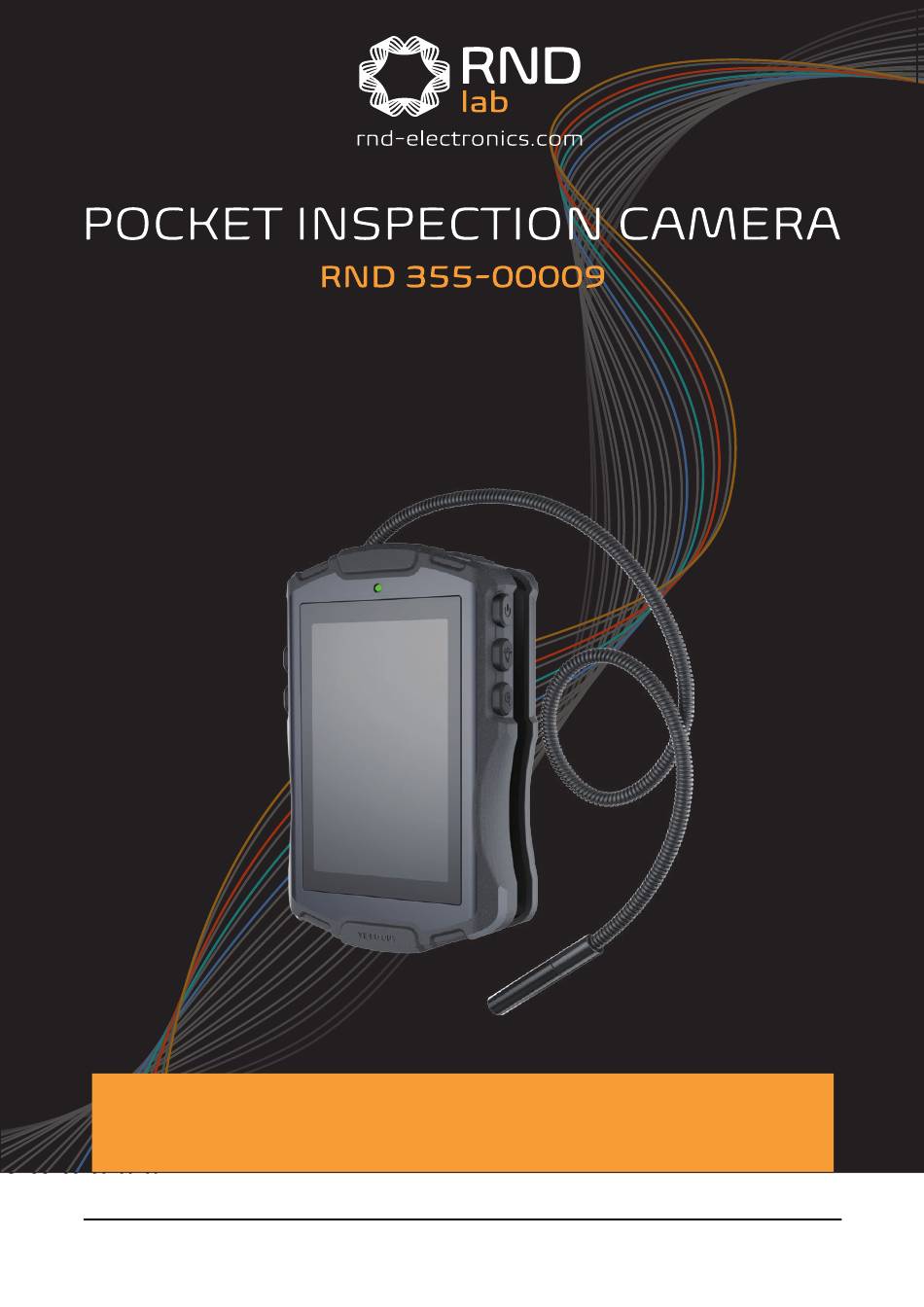

- Page 1 USER MANUAL Prior to use this product, please read this manual carefully to avoid any damage caused by error operation or improper use. Distrelec Group AG, Grabenstrasse 6, 8606 Nänikon, Switzerland, T +41 44 944 99 11, info@distrelec.com, distrelec.com...
- Page 2 Introduction Thank you for purchasing this product. Before use, please read carefully the instructions for use. This product is a kind of device used as a tool, which is suitable for the detection of pipelines, narrow spaces, installation of equipment or fixtures, vehicle maintenance, etc., providing real-time video viewing and output functions.
- Page 3 Structure Mini waterproof Power indicator camera ON/OFF key Screen brightness LED light brightness adjustment key adjustment key Flip/mirroring key Zoom key Color LED screen VIDEO output interface Installation and Use 1. Open the battery compartment rear cover, install 4 AA batteries and press the battery cover back (Figure 1);...
- Page 4 2. Accessories Installation (1) First place the single hook or mirror into the hole on the lens as indicated by the arrow, and then push the attachment fixture to secure it (as shown below). (2) First, insert the magnet into the attachment fixture, with the pointed end placed into the hole on the lens as indicated by the arrow, and then tighten the attachment...
- Page 5 4. When the camera’s ambient light is inadequate, the LED light can be turned on to adjust the brightness. As the brightness is adjusted to the maximum point, press the brightness adjustment key again to restore. LED brightness adjustment key 5.
- Page 6 6. The zoom key allows you to zoom in the image; press once to zoom in by 1.5 times, press again to zoom in by 2.0 times, and press once again to restore. Zoom in by Zoom in by 1.5 times 2.0 times Zoom key 7.
- Page 7 Technical Parameters Items Specs Camera Diameter Image Sensor 1/9”, CMOS Effective Pixel 640*480 pixels Horizontal View Angle 45±5° 770mm Tube Lenght IP67(excluding the joint part) IP Grade Power Supply AA x 4 Display Dimensions 4.3” TFT LCD inch Image Zoom Ratios X1.5, X2 Video Formats NTSC and PAL...
- Page 8 -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
