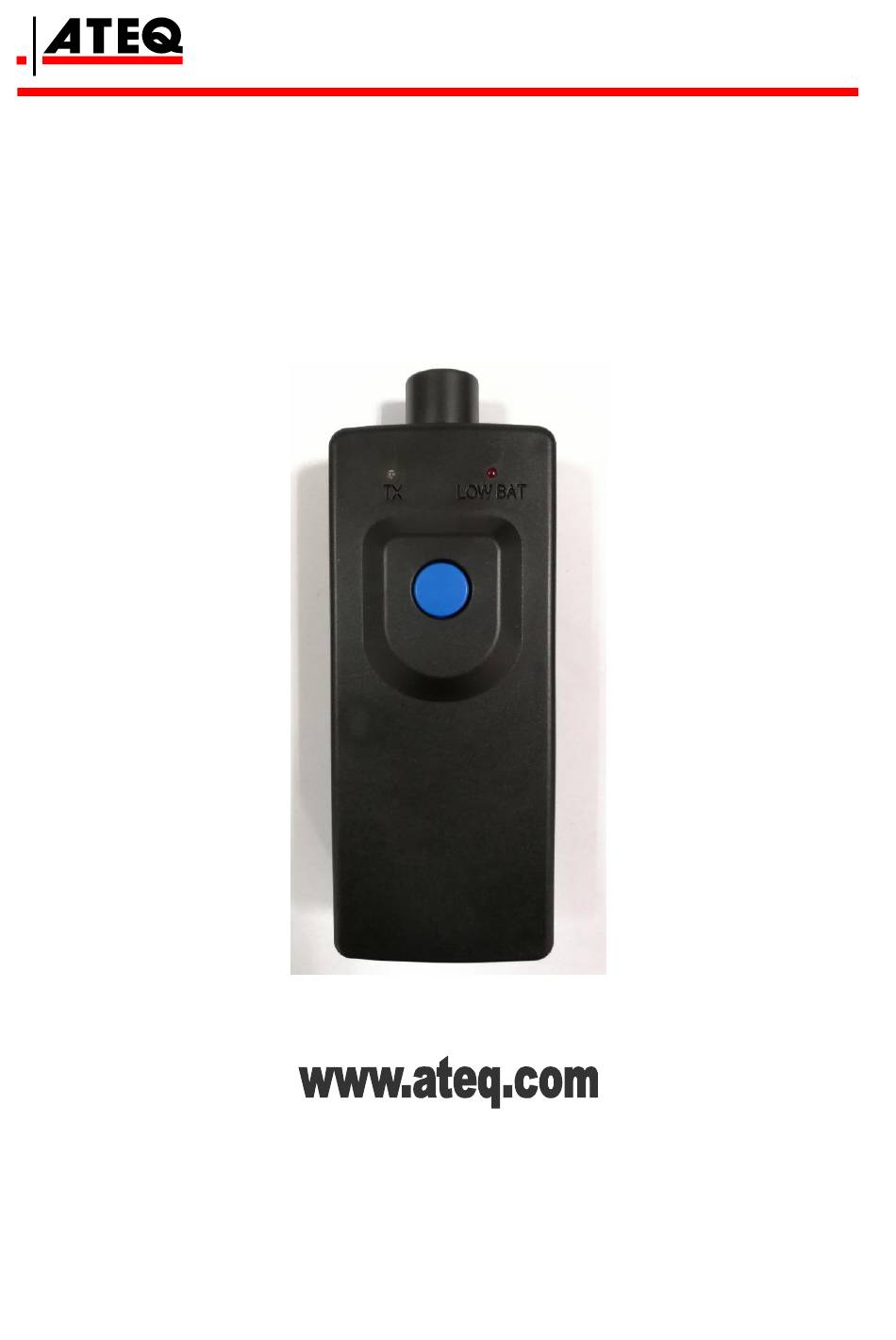

- Page 1 USER GUIDE VT05S Version V1.00 Reference: C6800017a...
-
Page 2: Revision Of The Ateq Vt05S Manual
VT05S TPMS ACTIVATION TOOL user guide VT05S TPMS ACTIVATION TOOL MANUAL Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Edition/ Date Reference... -
Page 3: Table Of Contents
VT05S TPMS ACTIVATION TOOL user guide CONTENTS REVISION OF THE ATEQ VT05S MANUAL ..............1 CONTENTS ........................2 User guide VT05S TPMS TOOL ......................3 1. SPECIFICATIONS ..........................3 2. IMPORTANT SAFETY INSTRUCTIONS .....................4 3. CAUTION .............................5 4. FUNCTION ............................6 5. OPERATING INSTRUCTIONS ......................7 6. -
Page 4: User Guide
Emission Frequency: 0.125 MHz Low Battery Indication: Weight: Approx. 0.2 lbs. (100 grs) Temperature: Operating: 14° F to 122° F (-10° C to +50° C). Storage: -40°F to 140° F (-40° C to +60° C). User manual VT05S Page 3/11 C6800017a... -
Page 5: Important Safety Instructions
Do not use on live electrical circuits. Must read instructions before use. Wear safety goggles. (User and bystanders). Risk of entanglement. Read the Warranty, Safety and Recycling information at the end of this user guide. User manual VT05S Page 4/11 C6800017a... -
Page 6: Caution
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat generating sources. Do not operate the tool with the battery cover removed. User manual VT05S Page 5/11 C6800017a... -
Page 7: Function

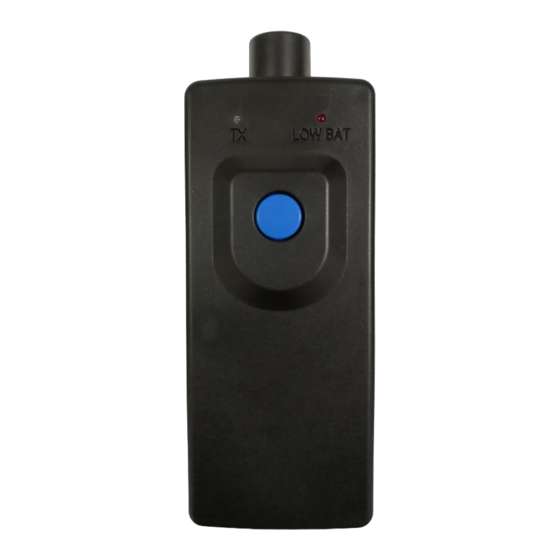

VT05S TPMS ACTIVATION TOOL user guide 4. FUNCTION Antenna Low battery indicator Emission indicator Activation switch Front view Battery hatch Rear view User manual VT05S Page 6/11 C6800017a... -
Page 8: Operating Instructions
Continue to hold the button down until successful signal transfer to the vehicle’s ECU, diagnostic station or until the vehicle’s horn “beeps”. 1 Start FL FR 2 The same procedure should be followed on all wheel sensors, in a clockwise rotation. 4 End RL RR 3 User manual VT05S Page 7/11 C6800017a... -
Page 9: Miscellaneous
The power button can be pressed and held for a second to display battery status. Battery replacement When battery is low (red indicator is blinking), change 9V PP3 battery on the back of your TPMS TOOL. User manual VT05S Page 8/11 C6800017a... - Page 10 2) The sensor, module or ECU itself may be damaged or defective. 3) The sensor may be the type that periodically triggers on its own and is not designed to respond to a triggering frequency. 4) Your TPMS TOOL is damaged or defective. User manual VT05S Page 9/11 C6800017a...
- Page 11 (1) to repair or replace the hardware, or (2) to refund the price paid, provided that the hardware is returned to the point of purchase or such other place as ATEQ may direct with a copy of the sales receipt or dated itemized receipt.
- Page 12 VT05S TPMS ACTIVATION TOOL user guide No ATEQ dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty. Warranty Periods Please note that in the European Union, any warranty period less than two years shall be increased to two years.
- Page 13 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
