ARDETEM TAI60 User Handbook Manual

Ac transmitter, measurement of alternating voltage and current for balanced networks, true rms values
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

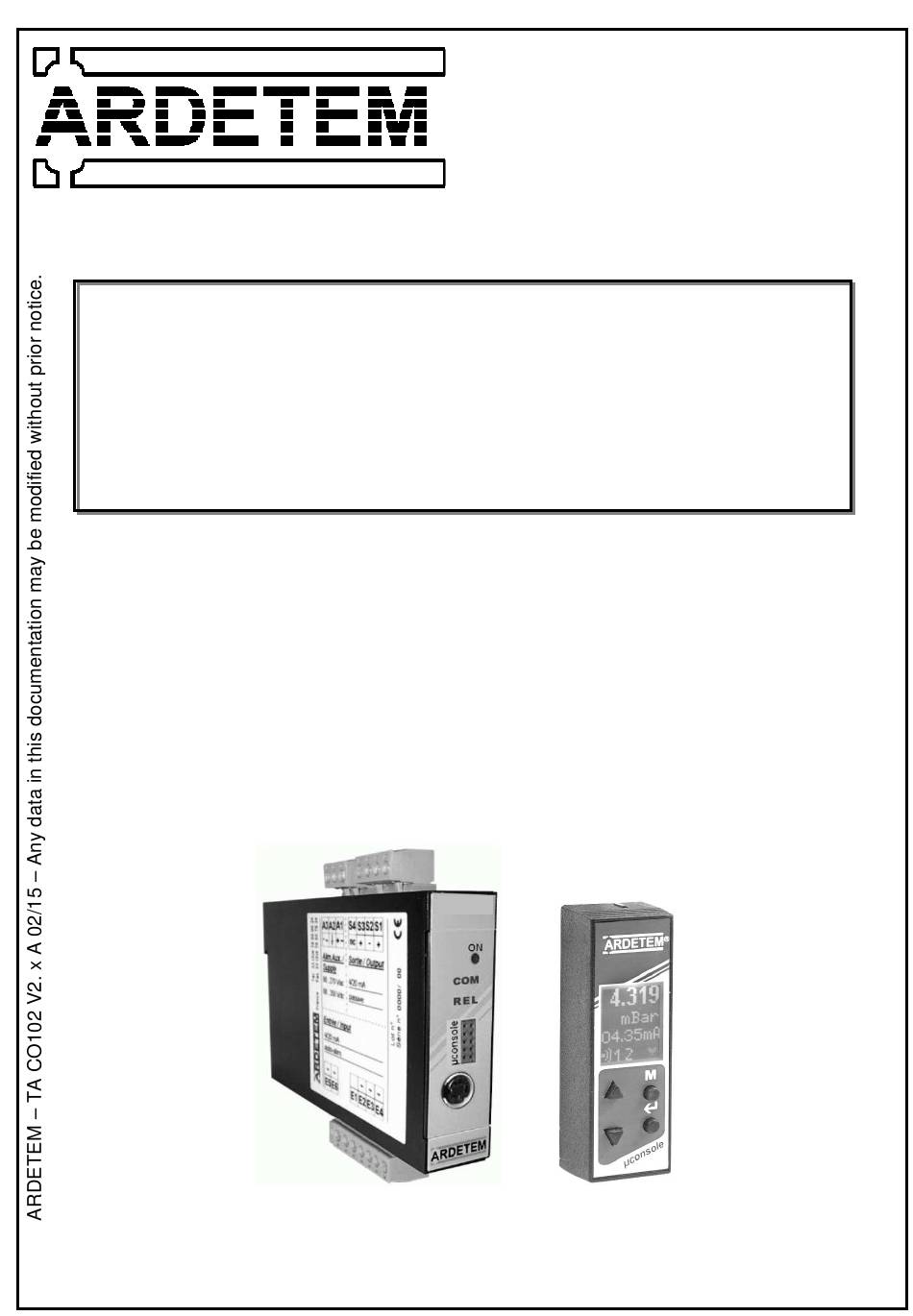

Measurement of alternating voltage and
For balanced networks
®
www.ardetem.com
TAI60
User handbook
AC transmitter
current
True RMS values
ARDETEM
Route de Brindas
Parc d'Activités d'Arbora
69510 SOUCIEU EN JARREST
France
tel :
fax :
International
tel :
fax :
e-mail : info@ardetem.com
04 72 31 31 30
04 72 31 31 31
33 4 72 31 31 30
33 4 72 31 31 31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAI60 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARDETEM TAI60

  • Page 1 04 72 31 31 31 International tel : 33 4 72 31 31 30 fax : 33 4 72 31 31 31 www.ardetem.com e-mail : info@ardetem.com TAI60 User handbook AC transmitter Measurement of alternating voltage and current For balanced networks...

  • Page 2: Table Of Contents

    Summary 1. RECEIPT OF THE INSTRUMENT & START UP 2. ORGANISATION OF THE FRONT FACE 3. LIST OF THE MEASURED PARAMETERS 4. USE OF THE « CUT OFF » 5. LIST OF THE ERRORS PROGRAMMING 1. INTRODUCTION TO THE µCONSOLE 2.

  • Page 3: Use

    Page 2...

  • Page 4: Receipt Of The Instrument & Start Up

    1. RECEIPT OF THE INSTRUMENT & START UP  Check that the configuration of the instrument (as indicated on the case bottom label) corresponds to your order.  Mount the instrument on a DIN rail.  Connect the power supply (see the wiring diagrams). The tension LED lights up. ...

  • Page 5: List Of The Measured Parameters

    3. List of the measured parameters N° Measured parameter (mesh voltage U13) (single voltage UL1) (line current IL1) (Frequency) SINGLE: Single phase 4W BAL: 3-phase balanced with neutral 3W BAL: 3-phase balanced without neutral Page 4...

  • Page 6: Use Of The « Cut Off

    6. USE OF THE « CUT OFF » The « cut off » is a programming option of the instrument which allows setting the display to 0 separately for low U and I values (see the chapter « programming of the »).

  • Page 7: Programming

    Page 6...

  • Page 8: Introduction To The Μconsole

    2. INFORMATION RELATING TO THE INSTRUMENT- FEATURES The instrument will display its features on the setting on tension (if the µconsole is connected) or after the key menu (M) is pressed. Type of the instrument: TAI60 Programme version Options: 2 relay outputs 3.

  • Page 9: Configuration Of The Measures (Menu « Inputs »)

    The navigation keys allow selecting the menus: PROGRAM  Modification of the language, entering in mode programming. INPUTS  Configuration of the measure inputs. RS-485  Configuration of the digital data link RS485 (if option present)  OUTPUTS Configuration of the instrument outputs (relay, analog). Validate to enter the chosen menu.
  • Page 10 5.4. Entering of the Cut Off « CUTOFF » CUT U / CUT I 05 . 0 Programming of the voltage and current cut offs (value below which the instrument will enforce the measure to 0). To be entered in % of the caliber value (1 or 5A, 100 or 330V).

  • Page 11: Configuration Of A Relay Output (Menu « Outputs »)

    6. CONFIGURATION OF THE RELAY OUTPUTS (MENU « OUTPUTS ») Each output is configured as alarm setpoint. 6.1. Configuration in mode setpoint « ALARM » 2 modes can be combined with 2 types of safeties: MODE SINGLE WITH 1 SETPOINT , LOW SAFETY: Contact closed Contact open Value of the parameter...
  • Page 12 Choice of the operating mode « CTRL » 1S LOW 1 setpoint, low safety 1S HIG 1 setpoint, high safety 2S LOW 2 setpoints, low safety (mode window) 2S HIG 2 setpoints, high safety (mode window) Entering of the threshold(s) « THRES1 » « THRES2 » 0005 .

  • Page 13: Configuration Of An Analog Output

    7. CONFIGURATION OF AN ANALOG OUTPUT (MENU « OUTPUTS ») 7.1. Operating mode of an analog output – general case: To configure a current output, it is necessary to define: - the type of output: 4-20mA , 0-20mA, 0 5mA , 0 10mA - the n°...

  • Page 14: Technical Features

    Page 13...

  • Page 15: General Features

    1. GENERAL FEATURES Housing Self-extinguishing case of black UL94VO ABS. Format (H x L x D) 75 x 22.5 x 120 mm without µConsole 80 x 26.5 x 130 mm with µConsole Mounting on DIN rail Protection Housing IP30 (with the terminals mounted). Connectings By plug-off screw terminals (wire section: 2.5 mm Indicators...

  • Page 16: Possible Outputs

    3. POSSIBLE OUTPUTS The instrument includes in standard: 2 setpoint relay outputs (S5-S6 and S7-S8).  The relay outputs are programmed as alarm setpoint – option R . Type of contact : potential free contac, galvanic partition 2.5KV Rated load : 5A –...

  • Page 17: Dimensions

    4. DIMENSIONS 13.5 DIN rail 22.5 26.5 102.5 75.5 Page 16...
  • Page 18 Page 17...

  • Page 19: Wiring

    Wiring 1. WIRING RECOMMENDATIONS The input network ( U ) may carry significant disturbances, and they may disturb the complete processing chain. In order to avoid this the disturbance immunity can be improved efficiently by respecting a few simple rules: ...

  • Page 20: Wiring Of A Single Phase Network: « Single

    Wiring 3. WIRING OF A SINGLE PHASE NETWORK : « SINGLE » without VT with VT without CT with CT Umax = 330V Imax = 5A 4. WIRING OF A 3-PHASE BALANCED NETWORK WITHOUT NEUTRAL : « 3W BAL » without VT with VT without CT...

  • Page 21: Wiring Of The Relay Outputs

    Wiring 6. WIRING OF THE RELAY OUTPUTS Pot. free contact 5A/250V Pot. free contact 5A/250V 7. WIRING OF THE ANALOG OUTPUTS Current outputs < 600  (20 mA) < 600  (20 mA) Page 20...
