Summary of Contents for Interspace Industries Countdown2

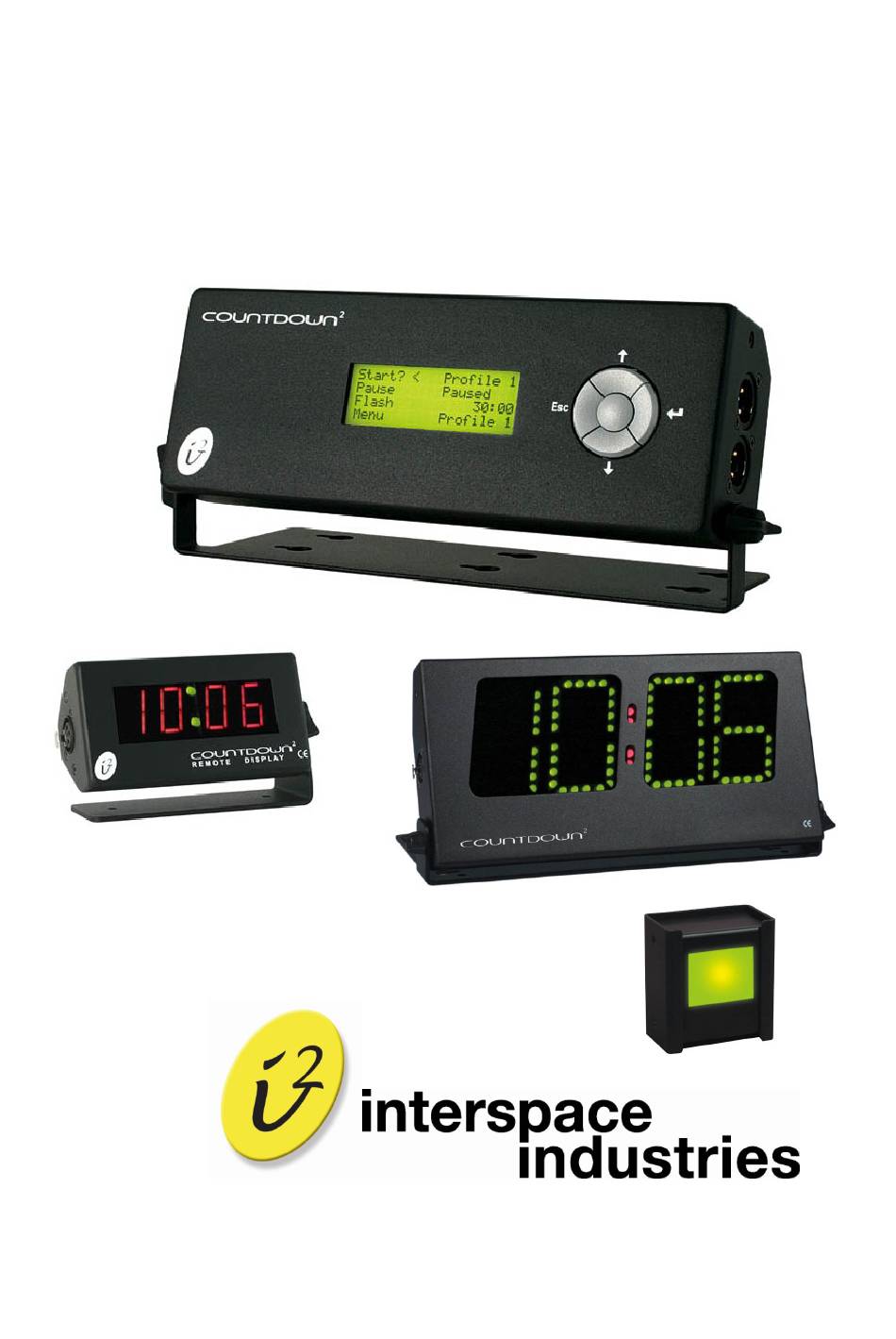

- Page 1 Countdown User Manual Cueing and Presentation Control Specialists...
-
Page 2: Table Of Contents
Contents Introduction Safety Instructions Setting Up Menu Diagram General Features Operating Instructions Programming a Timer Profile Running a Timer Profile Declaration of Conformity Environmental Technical Support Contact... -
Page 3: Introduction
Intelligent lamp option can also be used to only show the colour change. Professional Presenter Timekeeping We hope that CountDown exceeds your expectations and welcome any feedback that you have about this or any of our products. Thank you. The Interspace Industries Team www.interspaceind.com... -
Page 4: Safety Instructions
Power Supply Lead. To unplug the device always pull by the plug itself, not the power supply lead. The power source outlet should always be near the Countdown2 main unit and easily accessible. Ensure the power supply lead cannot be walked on or damaged by items placed on or against it. -
Page 5: Setting Up
Setting Up Figure 1 Connections Diagram All connections can be made using standard 3-pin XLR (mic) cables. CountDown can be set up and operated over a combined total distance of at least 100 metres (300ft). Note: A combination of displays and optional intelligent lamps can be added to the system using standard mic cable splitters (3-pin XLR type), thereby providing for multiple displays... -
Page 6: Menu Diagram
CountDown Operation and Programming Diagram Main Menu To Start or Restart Start To Pause or Unpause Pause To Turn Flash On or Off Flash Profile ‘X’ (1-8) Select Profile Menu Select Clock ... - Page 7 CountDown KeyPad (Up Cursor) CountDown uses a 4-key keypad for simple navigation through the menu system. (Forward Cursor and Select) (Shortcut to Main Menu) (Down Cursor) Profile Program Menu To Select Select Profile 1-8, ...
-
Page 8: General Features
General Features Count Up or Down. The system can be programmed to run timer profiles that count up or down. Colour Changes. The system can be programmed to change the colour of the remote displays at predetermined times during a timer profile. This provides a means of emphasising elapsed or remaining times. -
Page 9: Programming A Timer Profile
Note: Additional remote displays can be added to the system using standard mic cable splitters but the sum of the total distance between all displays and the main unit should not exceed 100m (300’). Apply power to the main unit using the universal IEC power connector input on the side of the main unit. -
Page 10: Declaration Of Conformity
key to confirm. This will resume the timer. The remote displays will illuminate again and resume displaying the time and colour DECLARATION OF CONFORMITY We (Interspace Industries, Unit 1a, 126 Great North Road, Hatfield, Hertfordshire, AL9 5JN, UK) declare under our sole responsibility that the products: CountDown Big Display... -
Page 11: Environmental
EC WEEE and RoHS directives. Please return all end-of-life items to your supplier, or your local Interspace Industries representative directly, for appropriate disposal. Packaging Materials: Cardboard box: Grade 150 K/T ‘B’... - Page 12 Unit 1A 126 Great North Road Hatfield, Hertfordshire AL9 5JN United Kingdom Tel: +44 (0) 1462 600101 Email: moreinfo@interspaceind.com www.interspaceind.com...
