Summary of Contents for diodor DIO-FL200W-WM

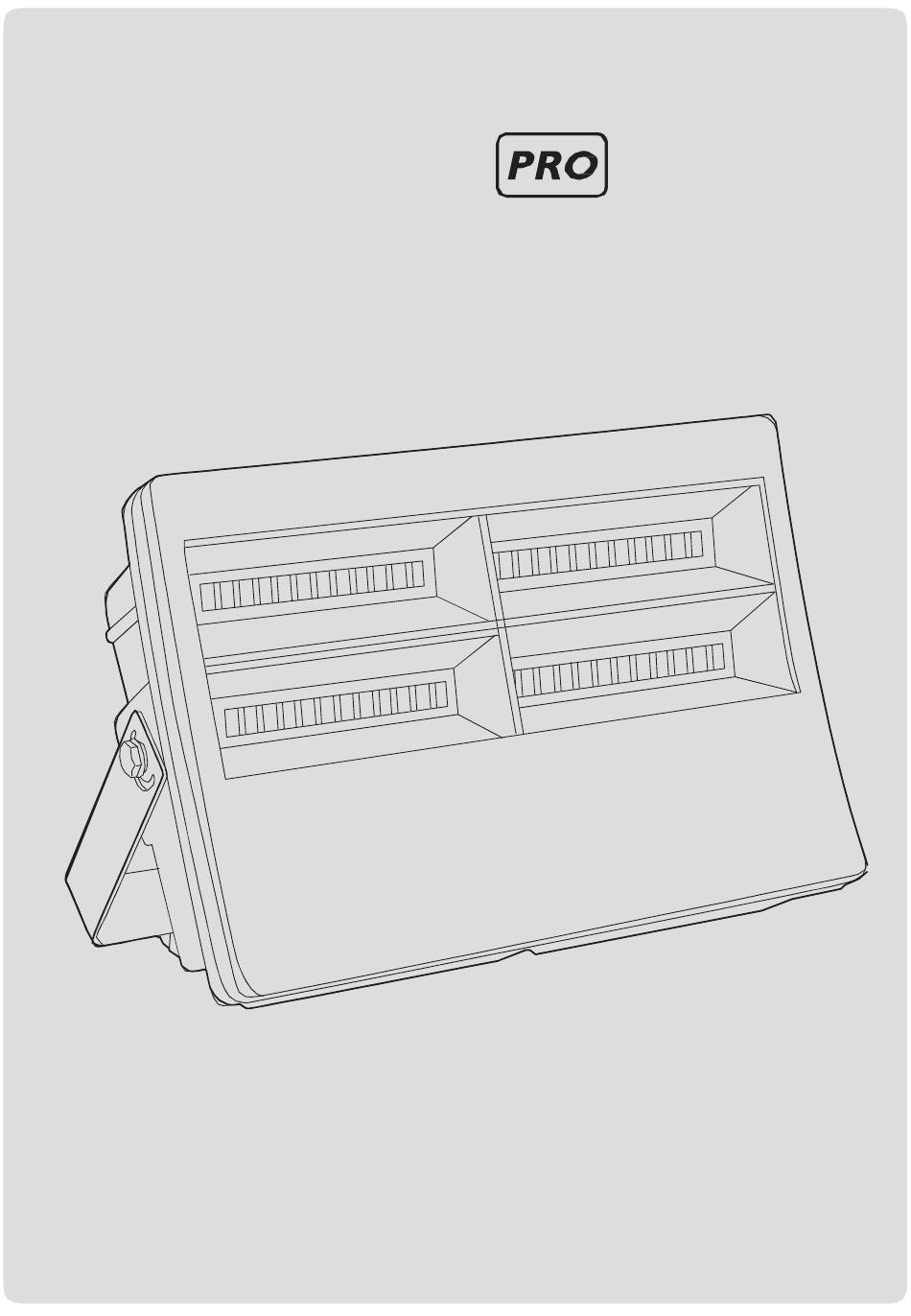

- Page 1 DIODOR LED POWERHOUSE Diodor Pro 120W / 200W LED Floodlights Models: DIO-FL120W-WM & DIO-FL200W-WM Installation & operating instructions...
- Page 2 Diodor LED Powerhouse – INSTALLATION AND OPERATING INSTRUCTIONS The DIODOR LED Powerhouse floodlight a high-powered, professional LED floodlight which is suitable for use outdoors in a range of commercial applications including lighting perimeters, car parks, garden areas and outside warehouse facilities.
- Page 3 2: Clamping the pipe bracket to the U bracket around a pipe or pole, and then attaching the Powerhouse. 3.1. OPTION 1: ATTACHING THE Diodor LED Powerhouse VIA THE U BRACKET If attaching the Powerhouse direct to a wall using the U bracket: •...
- Page 4 4.1 CONNECTING TO POWER SUPPLY IMPORTANT: Diodor LED Powerhouse has two dual channel drivers which control the 4 LED arrays within the Mightylite Pro. The four BROWN (Live) wires in the Powerhouse terminal, each operate as the Live for each of the LED arrays, enabling the arrays to be wired to be switched on and off independently of each other (See Section 4.2 Wiring Options).
- Page 5 NEUTR NEUTR Note: A separate switch is used to control each of the four LED arrays within one or more Powerhouse units. Diagram shows 2 units wired together so that both can operate at 25%, 50%, 75% or 100% light level dependent upon switching. 5.
-
Page 6: Technical Specification
6. TECHNICAL SPECIFICATION DIO-FL120W-WM Ref: DIO-FL200W-WM DIODOR Powerhouse120W Floodlight Description: DIODOR Powerhouse 200W Floodlight Fascia: Matt black polycarbonate Matt black polycarbonate Backplate: Matt black aluminium Matt black aluminium Lens: Frosted Frosted Wattage: 120W 200W Lumens generated: 12000 17000 Voltage: 80 -280V...
