Halkey-Roberts Pro 1F V95000 Service Instructions

Halkey-Roberts Pro 1F® V95000
Service Instructions

DISASSEMBLY

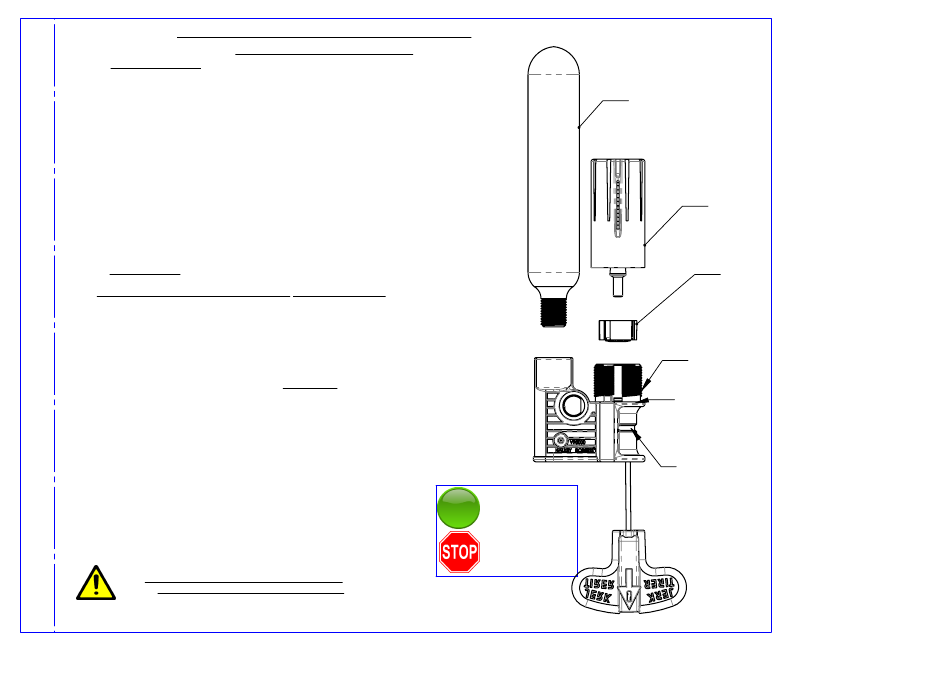

(see figure)
Step 1: Unpack or open the life vest so that the manual/automatic inflator
is visible.
Step 2: Remove gas CO2 cylinder by rotating cylinder couterclockwise then
pull out. Discard cylinder.
Step 3: Remove cap by turning counter-clockwise.
Step 4: Remove bobbin from cap or housing unit. Discard bobbin
(yellow). Check the housing to be sure it is clear and dry.
Note: The bobbin (yellow) body may remain in the housing or in the cap
assembly when you remove the cap. The bobbin body must be removed prior
to Rearming.

REARMING

Note: Rearming must follow the sequence below.
Step 5: A new bobbin must be used. New bobbin must have been
purchased
within three ( 3 ) years. If bobbin purchase date is unknown, check date on
bobbin, replace if over three (3) years.
Step 6: IMPORTANT!
Bobbin (yellow) must be installed into the HOUSING (**see figure), white
side up, aligning the slots on the bobbin with the ridges inside the threaded
housing. The bobbin will slide in easily if installed correctly.
Step 7: Install cap by screwing clockwise until it meets the housing
shoulder.
Note: No gap between the cap and the housing shoulder.
Step 8: Check the new cylinder to be sure it has not been punctured.
IMPORTANT!
Install the bobbin and cap before installing a new cylinder.
Step 9: Install new cylinder by engaging the cylinder threads with the
inflator threads. Turn cylinder clockwise till a firm seal is achieved.
WARNING: PFD WILL ONLY INFLATE IF
CYLINDER IS TURNED TO FULL STOP.
Step 10: Check to be sure service indicator is

SERVICE INDICATOR

GREEN.
C02 CYLINDER
STEP 2.
If green, unit is
operable.
If red, stop and
service unit.
CAP
STEP 3.
BOBBIN
STEP 4.
HOUSING
STEP 6.
HOUSING
SHOULDER
STEP 7.
SERVICE
INDICATOR
STEP 10.
