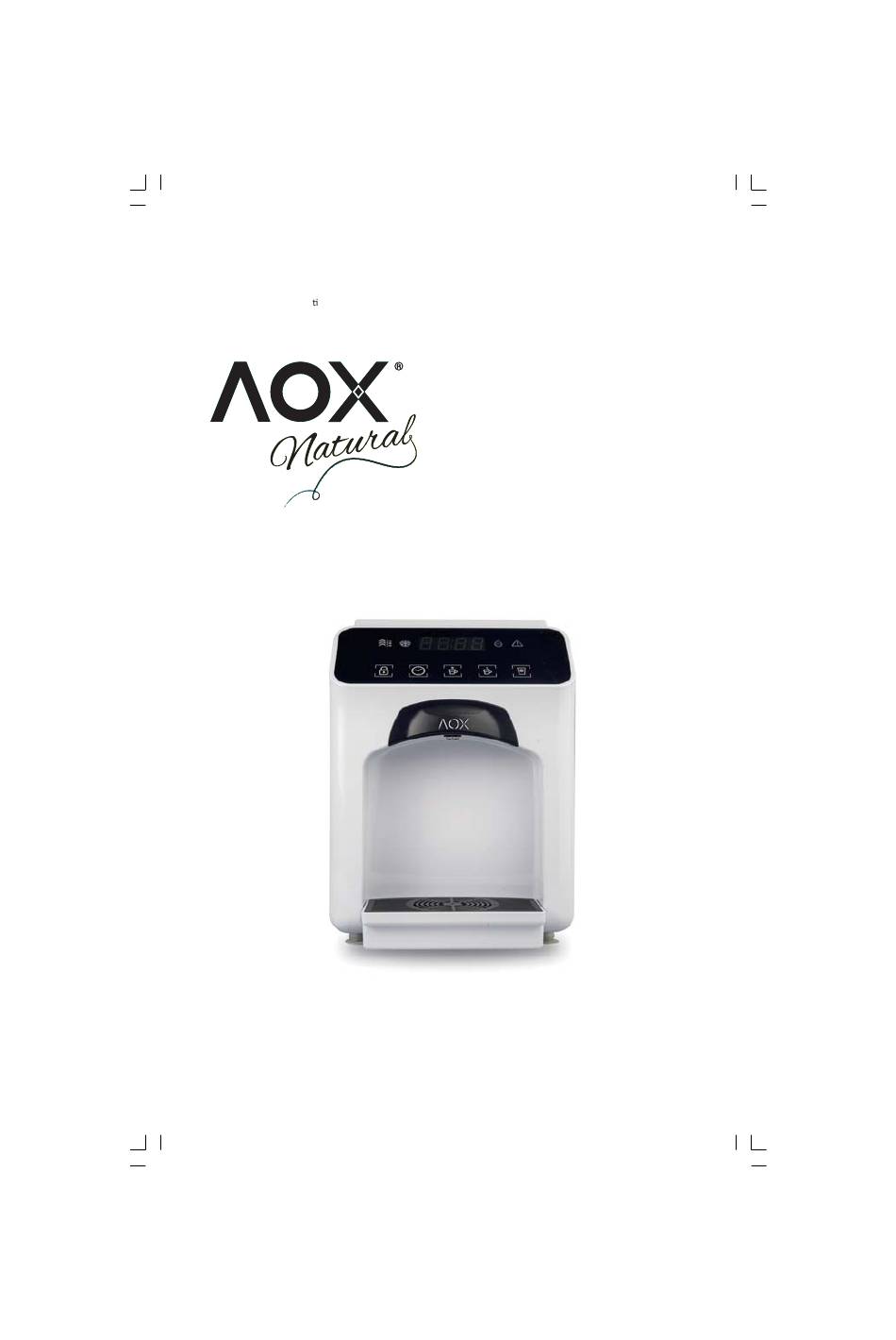

- Page 1 User Guide Please read this instruc on manual before using your water dispenser COUNTERTOP WATER DISPENSER AOX-3T...
-
Page 2: For Your Safety
• This appliance is only for use with purified water. Do not pour milk, so drinks or any other liquid into the appliance. AOX is not liable for any damages due to misuse or altera on • The float in the water tank indicates the water level. Do not use the appliance if the float is removed to avoid burning out the heater. -
Page 3: Structure & Parts
STRUCTURE & PARTS Timer Cold Tank Indicator Ioniser Indicator Child Lock Refill Indicator Errror Indicator Cold Water Button Timer Set-up Warm Water Hot Water Button Water Outlet Drip Tray Button Power Switch Ventilation Panel Power Cord Top Cover Cold Tank Power Vent Hole Stability Anchor Switch... -
Page 4: Button Operation
BUTTON OPERATION F4 F3 SWITCH 1 Child Lock To unlock the dispenser, press bu on for one second un l light turns OFF. You must unlock the dispenser before dispensing HOT or WARM water from the dispenser. The Child Lock will automa cally reset 3 seconds a er you stop dispensing Hot or Extra Hot water SWITCH 2 Timer Setup Press bu on... -
Page 5: Operating The Dispenser
OPERATING THE DISPENSER 1.Remove the dispenser from the carton and place on a flat surface. Use the stability anchors if required. 2.Connect the unit to a suitable power supply (220-240V, 10A) and turn on the red power switch at the rear of the dispenser. Icons on display monitor will flash when the unit enters its “normal” mode mer, cooling system &... - Page 6 TECHNICAL SPECIFICATION AOX-3T Model Suitable Water Source AOX kits Hea ng Capacity Voltage 220 - 240 V 18 LPH (> 25°C ambient) Rated Frequency Cooling capacity 50 Hz 0.7 LPH (≤ 15°C) Rated Power 2200W Water temperature Hot: 83 - 87°C Warm: 68-72°C...
- Page 7 Circuit Diagram Data Label MODEL: AOX-3T SERIAL NO: HW YYMMXXXX POWER VOLTAGE: 220 V ~ 240 V DISTRIBUTED BY: AOX FREQUENCY: 50-60 Hz NET WEIGHT: 4 kg RATED COOLING CURRENT: 0.55 A TOTAL RATED POWER : 2300 W CLIMATIC CLASS: N HEATING POWER: 2235 W DIMENSIONS: 260W ×...
-
Page 8: Warranty
WARRANTY AOX provide 12-month warranty, star ng from date of purchase of the dispenser. Parts will be charged separately a er warranty period has expired. Please keep the invoice as proof of purchase. For repair service, please contact AOX Customer Services Please note that the warranty does not cover the following condi ons: Any damage caused by failure to follow the instruc ons.
