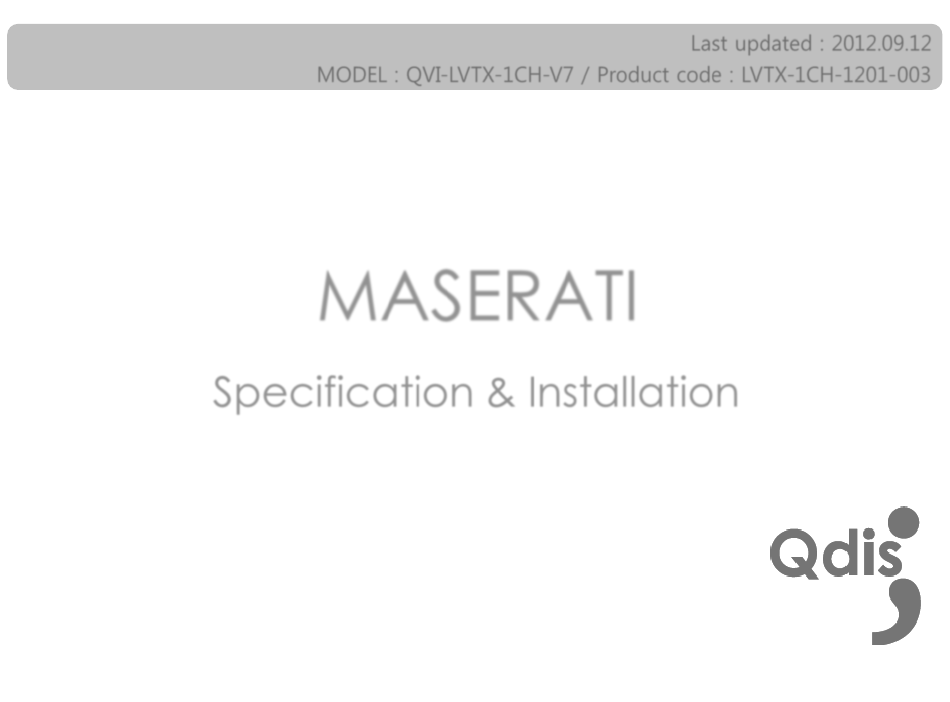

- Page 1 Last updated : 2012.09.12 MODEL : QVI-LVTX-1CH-V7 / Product code : LVTX-1CH-1201-003 MASERATI Specification & Installation Your best partner for better driving...
-
Page 2: Table Of Contents
2.2 Remote control 2.3.1 OSD (on screen display) 2.3.2 OSD (on screen display) 2.4 Factory mode 2.5 Parking Guide line setting 2.6 DVD, DTV model selection 3. Installation 3.1 Installation diagram 3.2 Cautions on installation 3.3 Installation 4. Troubleshooting www.qdis.co.kr... - Page 3 - Input video skip function : able to select whether to use the respective input video sources or not via DIP switch. - Able to change input modes via the remote control. - Able to switch modes via the Toggle switch. - Able to switch modes via Original button of the car through CAN. www.qdis.co.kr...
-
Page 4: Features 4
- Improved Display Screen (convenience-oriented Interfaces for users) - Add a safe function (show the main screen while driving) - Able to switch videos and select DTV channel via the original buttons - Compatible cars Maserati Gran Turismo 2008~ www.qdis.co.kr... - Page 5 (Analog RGB) DISPLAY Car Installation A/V 1 OEM LCD VIDEO MUX A/V 2 VIDEO CIRCUIT A/V 3 CVBS (Rear camera) Car Screen Input POWER A/V OUT (CAR MAIN BOARD) CIRCUIT HEADREST MONITOR Power Input Dip S/W (+8VDC ~ +16VDC) www.qdis.co.kr...
- Page 6 REMOTE CONTROL * 1ea (HIRCAB0002) (REMOTE0001) MODE cable * 1ea (HARETC0001) RGB cable * 1ea SUB BOARD* 1ea (HNAVIC0004) LCD cable * 1ea (HLVDSC0022) POWER cable (24P) * 1ea (HPOWER0011) REAR CAMERA POWER cable * 1ea A/V cable * 1ea (HAVCAB0002) (HARETC0002) www.qdis.co.kr...
- Page 7 1.6 Original buttons in car After Connecting original can wire in car with offered can wire, user can use original button Channel UP Mode switching Press long : Switching mode DTV Channel DOWN Press short : go to original mode directly www.qdis.co.kr...
-
Page 8: Dip Switch
OFF : OEM Rear Camera ※ Please make sure to disconnect the power cable of the interface and reconnect the power cable again to apply the dip switch setting whenever changing DIP switch. Otherwise, DIP switch setting will not be applied. www.qdis.co.kr... -
Page 9: Remote Control
(If you press this button 2 seconds long, you can reset all the data about user environment.) *FACTORY MODE (Interface setting for installer) : Operated by pressing ▲ → ▼ → ▲ →MENU button or press ◀ more than 5seconds long on the remote control. www.qdis.co.kr... -
Page 10: Osd (On Screen Display)
* BLUE : Adjusting blue * USER IMAGE * USER COLOR * TRANS : Adjusting : Selecting one among : Selecting a color option transparency of OSD 4 color options. among set color options * H_POSITION, V_POSITION : Positioning OSD menu www.qdis.co.kr... -
Page 11: Osd (On Screen Display)
(English, Chinese only) * SATURATION * TRANS : Adjusting transparency of * HUE * SHARPNESS * H-POSITION : moving in horizontal direction * USER IMAGE : Selecting one among 4 color * V-POSITION options. : moving in vertical direction www.qdis.co.kr... -
Page 12: Factory Mode
* NAVI MODEL : Do not use watch video while driving) or not * JOG SUTTLE : Do not use * AVOUT SELECT : DEFAULT, AV1, * FACTORY RESET : To reset all the AV2, AV3 value in factory mode www.qdis.co.kr... -
Page 13: Parking Guide Line Setting
* SAFE ENABLE : In case of Connecting “Safe” wire from the power cable to the hand break, ENABLE – OEM Picture displays in Drive gear position DISABLE – No display locked in any gear position www.qdis.co.kr... -
Page 14: Dvd, Dtv Model Selection
Unless you do this process after saving the data, you can NOT control DVD/DTV via touch screen. DVD TYPE : NEC/SANYO, DV-108, SANYO-1, SANYO-2, USER DTV TYPE : PIONEER/PANASONIC, USER, CMMB ※ If you enter data in ”IR MEMORY” section in FACTORY mode, “DVD TYPE”/ “DTV TYPE” will automatically be saved to “USER”. www.qdis.co.kr... -
Page 15: Installation Diagram
CAN HIGH(Black+Pink) in the car AUX-ON (N.C) OPT2 (N.C) ※ Connecting CAN LOW(Green) in MODE : Toggle S/W interface with CAN LOW(White+Pink) in the car CAN-L CAN-H IR-AV3 (DTV) PB12 (N.C) GPIO-ZO : MMI IR-AV2 (DVD) IR-AV1 (NAVI) PARKING (SAFE) www.qdis.co.kr... -
Page 16: Cautions On Installation
Kindly check all parts are in the box, when receiving the product, if anything missing, inform to the supplier or manufacturer. According to our sales policy, any problems caused by user’s mistake, careless can not be guaranteed. It may not work on a camera with 12V www.qdis.co.kr... -
Page 17: Installation
3.3 Installation Connecting with monitor ① Offered LVDS cable Behind of the Monitor ③ ② Offered LCD out cable Command Original LVDS cable 1.Connect offered LVDS cable into “LVDS IN” in Sub-board and “LVDS OUT” in interface 2. After Separating original LVDS cable from the monitor, connect into OEM LVDS INPUT”... - Page 18 3.3 Installation Connecting with CAN wire Original CAN-Low Original CAN-High Offered CAN-High Power cable Control box Offered CAN-Low 1. Connecting CAN HIGH(Brown+Green) in interface with CAN HIGH(Black+Pink) in the car 2. Connecting CAN LOW(Green) in interface with CAN LOW(White+Pink) in the car...
-
Page 19: Troubleshooting
CAN : In case of detecting Rear Cam thru CAN signal. (CAN must be wired) Q. After moving gear to “P” or “D” from “Reverse”, I can’t get navigation, but half PDC Image in the screen. A. Once, you starts driving, the screen displays navigation right away, this is not an system error. www.qdis.co.kr...
