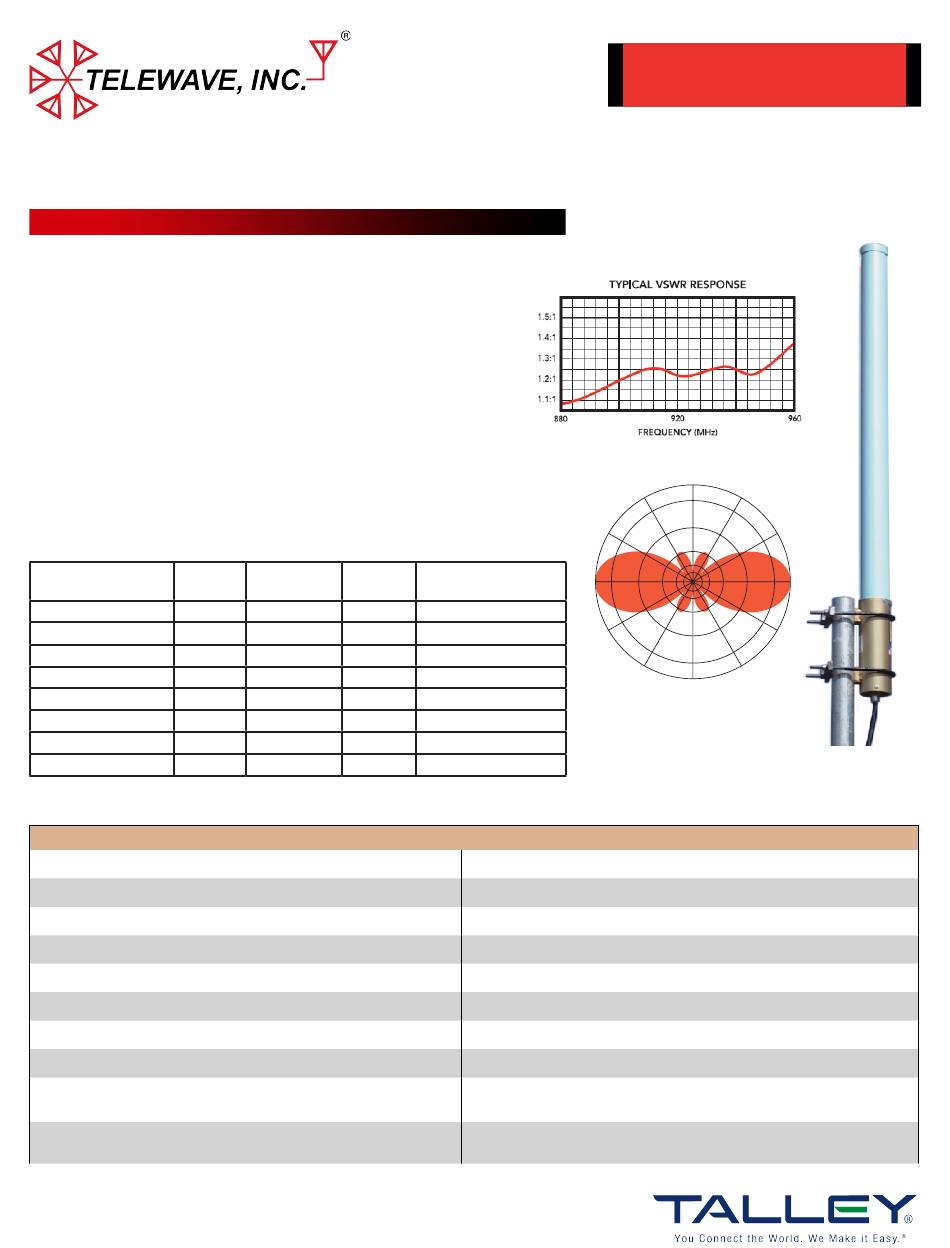

TELEWAVE ANT900F2 Series Manual

ANT900F2
FIBERGLASS COLLINEAR ANTENNA 2.5 dBd
The Telewave Collinear line of antennas are rugged omnidirectional antennas
suited for most environments, see the exact model specifications below.
These antennas are constructed with brass and copper elements that are
soldered together; producing both a DC path to ground and preventing
internally produced intermodulation products. Telewave's PIM-Rated
antennas are carefully built using specially treated materials and a
meticulous assembly process to achieve a -150 dBc PIM rating or better.
The "Cool Blue" fiberglass radome provides maximum protection from
corrosive gases, ultraviolet radiation, icing, acid rain, and wind-blown abrasives.
Intrusion and water protection is equivalent to an IP24 rating.
When ordering, specify all TX and RX frequencies that will be used on the
antenna. Telewave's support can assist with any special mounting needs.
Part Number Connector Jumper
ANT900F2
N-F
ANT900F2-I N-F
ANT900F2-DIN DIN-F
ANT900F2-IDIN
DIN-F
ANT900F2-PIM DIN-F
ANT900F2-IPIM DIN-F
ANT900F2-PIM-PIP
DIN-F
ANT900F2-IPIM-PIP DIN-F

SPECIFICATIONS

Frequency (continuous)
Gain
Power rating (Type.)
Impedance
Input VSWR
Pattern
Vertical beamwidth
Coastal / Salt Air Suitable
Temperature range
* Specifications applicable only to PIM-Rated
Models
Questions? Visit www.Talleycom.com or contact Talley at 800.949.7079 or Sales@Talleycom.com today.
SERIES
Clamp Kit Mounting
(Included)
24" RG213 M-M ANTC485 Clamps Bottom (Normal)
24" RG213 M-M ANTC485 Clamps Top (Inverted)
None ANTC485 Clamps Bottom (Normal)
None ANTC485 Clamps Top (Inverted)
None ANTC485 Clamps Bottom (Normal)
None ANTC485 Clamps Top (Inverted)
None ANTC485 Clamps Bottom (Normal)
None ANTC485 Clamps Top (Inverted)
880 - 960 MHz
2.5 dBd
500 watts
50 ohms
1.5:1 or less
Omnidirectional
38°
No
-58 to +140 °F
-50 to +60 °C
** Specifications applicable only to PIP-
Rated Models

PIM/PIP Models Available

Part:ANT900F2-PIM,
Part:ANT900F2-PIM-PIP, PIM + PIP
60
30
0
-30
-60
Vertical Plane
Gain = 2.5 dBd
Antenna Patttern available on website
Passive intermodulation rating*
PIP rating**
Tower weight (antenna + clamps) 8 lbs.
Wind rating / with 0.5" ice
Maximum exposed area
Lateral thrust at 100 MPH
Shipping weight
Full antenna dimensions (L x D) in (cm)
Base pipe dimensions (L x D) in (cm)
Radome dimensions (L x D) in (cm)
Shipping dimensions (L X W X H) in (cm)
880 - 960 MHz
PIM - Only
90
60
-3
30
-10
-20
0
-30
-60
-90
(Mast not included)
-150 dBc or better
25 KW
225 / 175 MPH
0.9 ft.²
35 lbs.
10 lbs.
38 x 2.75 (96.52 x 7)
11.5 x 2.75 (29.21 x 7)
26.5 x 2.5 (67.31 x 6.35)
44 x 7 x 5
(111.76 x 17.78 x 12.7)
