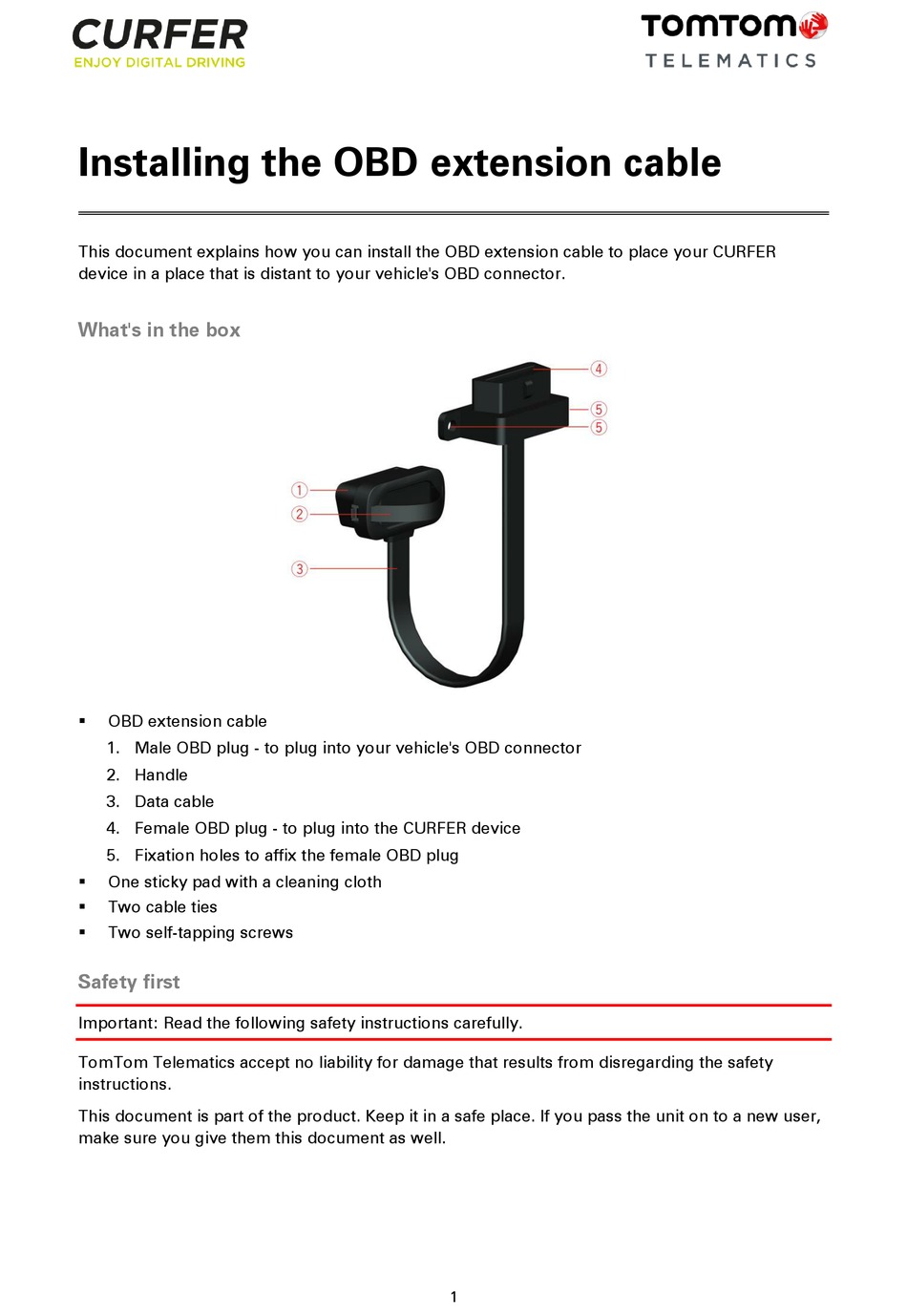

Installing the OBD extension cable
This document explains how you can install the OBD extension cable to place your CURFER
device in a place that is distant to your vehicle's OBD connector.
What's in the box
OBD extension cable
1. Male OBD plug - to plug into your vehicle's OBD connector
2. Handle
3. Data cable
4. Female OBD plug - to plug into the CURFER device
5. Fixation holes to affix the female OBD plug
One sticky pad with a cleaning cloth
Two cable ties
Two self-tapping screws
Safety first
Important: Read the following safety instructions carefully.
TomTom Telematics accept no liability for damage that results from disregarding the safety
instructions.
This document is part of the product. Keep it in a safe place. If you pass the unit on to a new user,
make sure you give them this document as well.
1
