Movi M10 Installation Instructions

MōVI M10 Top Mount Upgrade
INSTALLATION INSTRUCTIONS
Thank you for your purchase of the new Top Mount Upgrade Kit for the MōVI M10. This
modi cation allows the M10 to operate without constraints in the SkyView top mounted
position on your ALTA, TERO, or any stable vertical mount like a tripod.
Please give yourself about an hour and a clear work space to work in. We recommend you
install our Toad in the Hole kit while performing this upgrade which will allow you to get
the most out of your Top Mount Upgrade.

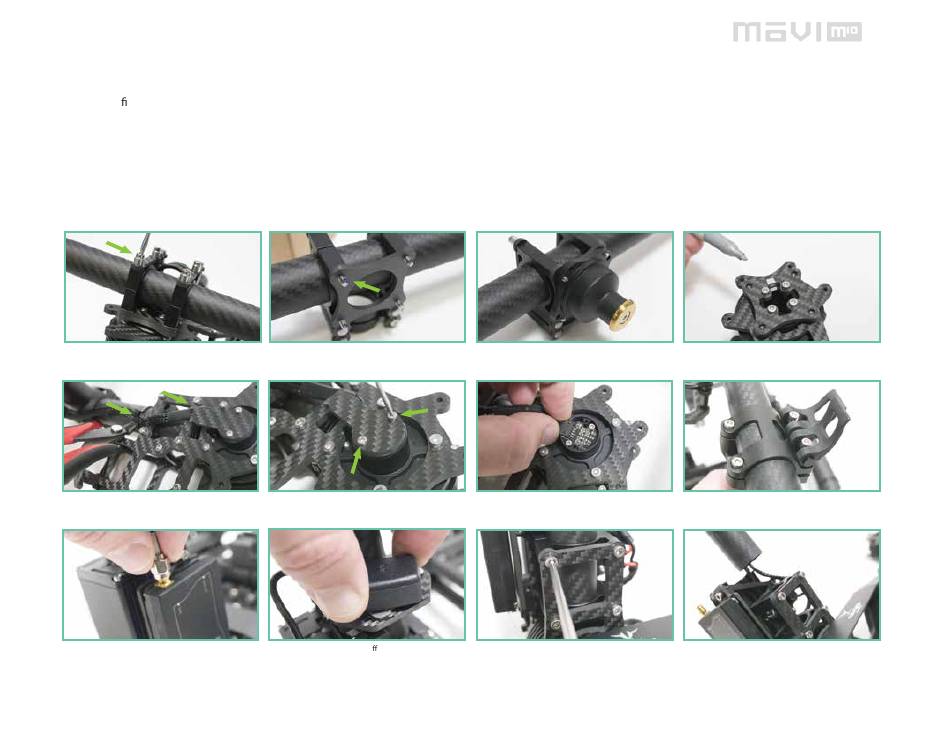

PART 1 : DISASSEMBLY AND PREPPING THE UNIT.

01. Loosen the 4 bolts holding the handle bar on to the
pan assembly of your MoVI M10.
03. Lay unit on it's side, cut and remove zip ties from
pan motor assembly.
07. Unscrew the GPS SMA connector.
(optional) Loctite screws and Install Toad in the Hole Male.
04. Remove these screws, the carbon plate, and metal
plate underneath.
08. Twist the GPS module o of the carbon plate and
clean any tape from GPS, set aside.
05. Unplug the motor, careful not to pull from the wire
but the connector.
09. Loosen the 4 screws holding the vertical tube approx
2-5 turns until the tube is just loose enough to turn.
Tools needed:
Wire cutter / diagonal side cutter.
1.5mm hex wrench, straight or ball tip.
2.0mm hex wrench, straight tip (not ball end.)
2.5mm hex wrench, straight or ball tip.
Needle nose plier, or similar (optional.)
Adhesive remover (optional.)
Toad in the Hole Kit (optional.)
02. Mark motor to show front of unit with marker.
06. Loosen pan adjustment levers, or unscrew pan clamp
and remove pan assembly from unit and set aside.
10. Remove the tube and set it aside.
