re:3D Gigabot Installation Instructions Manual

Side panel installation
Hide thumbs Also See for Gigabot:

Advertisement

Quick Links

Download this manual See also: Manual

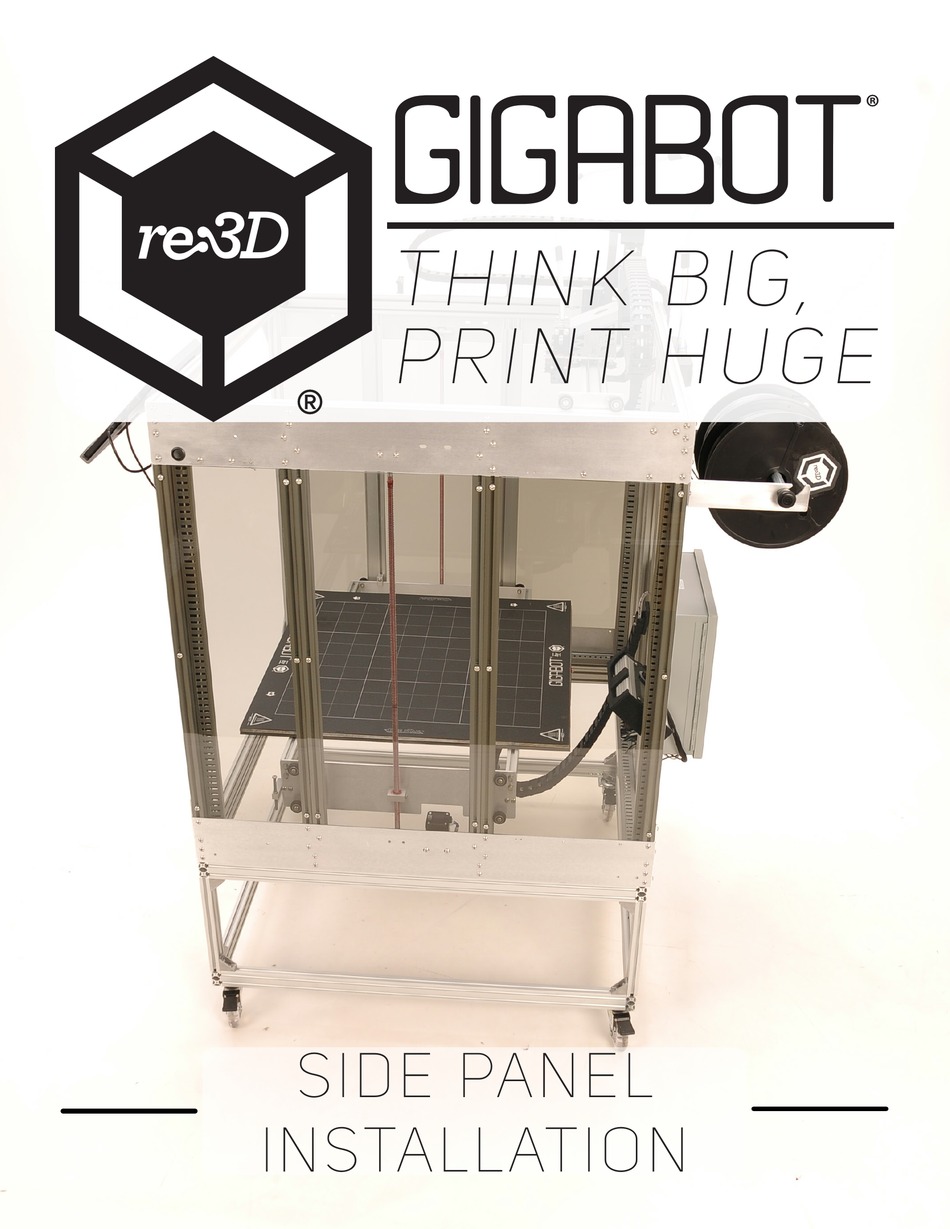

think big,
print huge
side panel
installation

Advertisement

loading

Related Manuals for re:3D Gigabot

Summary of Contents for re:3D Gigabot

  • Page 1 think big, print huge side panel installation...
  • Page 4 THANK YOU FOR PURCHASING THE SIDE PANEL RETROFIT KIT FROM re:3D Inc.®! This upgrade will let you install side panels for your Gigabot®. You will find that this is especially helpful in restricting access to the Z-axis Acme screws, the bed, and other moving parts during operation.
  • Page 5 WATER AND MOISTURE : Do not use Gigabot near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

  • Page 6: Table Of Contents

    table of contents OVERVIEW LEGEND BEFORE YOU BUILD BUILD GUIDE BILL OF MATERIALS - PARTIAL SIDE PANELS BILL OF MATERIALS - FULL SIDE PANELS TOOLS YOU’LL NEED A : INSTALLATION...

  • Page 7: Overview

    Full side panels - 26 9/16” x 12” Full side panels - 26 9/16” x 8 3/4” *Full Gigabot® rendering is for illustrative purposes only and may not reflect the final construction of your Gigabot® re:3D Inc.® Side Panel Installation...

  • Page 8: Legend

    LEGEND LOCATE place remove fasten/screw align insert Objects of importance are highlighted in yellow Side Panel Installation re:3D Inc.®...

  • Page 9: Before You Build

    BEFORE YOU BUILD it’s hip to be square! When assembling the Gigabot®, it is essential to work on a flat surface and to carefully square perpendicular parts as much as possible. This is especially important while assembling the side plates, Z-axis uprights and...
  • Page 10 T-nuts are an essential part of assembling the Gigabot®. These are inserted into the aluminum extrusion in order to fasten parts to the frame. Post assembly T-nuts are also used. These hold their positions well without sliding around, and are useful when installing retrofits.

  • Page 11: Build Guide

    BUILD GUIDE BILL OF MATERIALS - PARTIAL SIDE PANELS Post assembly T-nuts M5x8mm BHCS 26 9/16” x 12” side panels re:3D Inc.® Side Panel Installation...

  • Page 12: Bill Of Materials - Full Side Panels

    BILL OF MATERIALS - FULL SIDE PANELS Post assembly T-nuts M5x8mm BHCS 26 9/16” x 8 3/4” side panels 26 9/16” x 12” side panels 26 9/16” x 12 1/4” side panels TOOLS YOU’LL NEED • 3MM ALLEN KEy Side Panel Installation re:3D Inc.®...

  • Page 13: A : Installation

    A : INSTALLATION...
  • Page 14 WARNING PLEASE be sure that you have turned off and unplugged your Gigabot before attempting any modifications! WARNING There may be sharp edges on panels after cutting process. Observe accordingly and wear protective gloves as needed. Without removing protective film on panels,...
  • Page 15 Use each panel to approximate the location of each T-nut Insert T-nuts inside rail 6 T-nuts for each panel Remove film from panel re:3D Inc.® Side Panel Installation...
  • Page 16 Place panel in corresponding location Fasten 1 or 2 x M5x8mm BHCS to loosely hold panel Align the rest of the T-nuts to the panel holes Side Panel Installation re:3D Inc.®...
  • Page 17 Please look over your completed kit and make sure everything has been assembled correctly. If you have further questions, please refer to the video instructions (search “re3D Tech” on YouTube and find “Side Panel Installation” video) or contact us through the channels listed in the conclusion. re:3D Inc.® Side Panel Installation...
  • Page 18 Acquire beverage of your choice Actuate pull tab Consume Side Panel Installation re:3D Inc.®...
  • Page 19 We are confident that you will find this upgrade very helpful in your every day use of the Gigabot®, but please do not hesitate to contact us for any further issues or questions. Feedback on assembly instructions, support, and other aspects of your experience are welcome.
  • Page 20 REFERENCES & DOCUMENTS GIGABOT® PARTS KIT http://wiki.re3d.org/images/1/13/Parts_Kit_Box_ Opening_Guide_v1.pdf OPENING GUIDE : SIDE PANEL http://wiki.re3d.org INSTALLATION MANUAL PDF : re:3D Inc.® YouTube https://www.youtube.com/user/GigaBot3D CHANNEL :...
  • Page 21 NOTES...
  • Page 22 Inc.® | re3d.org | support@re3d.org...
