Summary of Contents for ILVE VM615

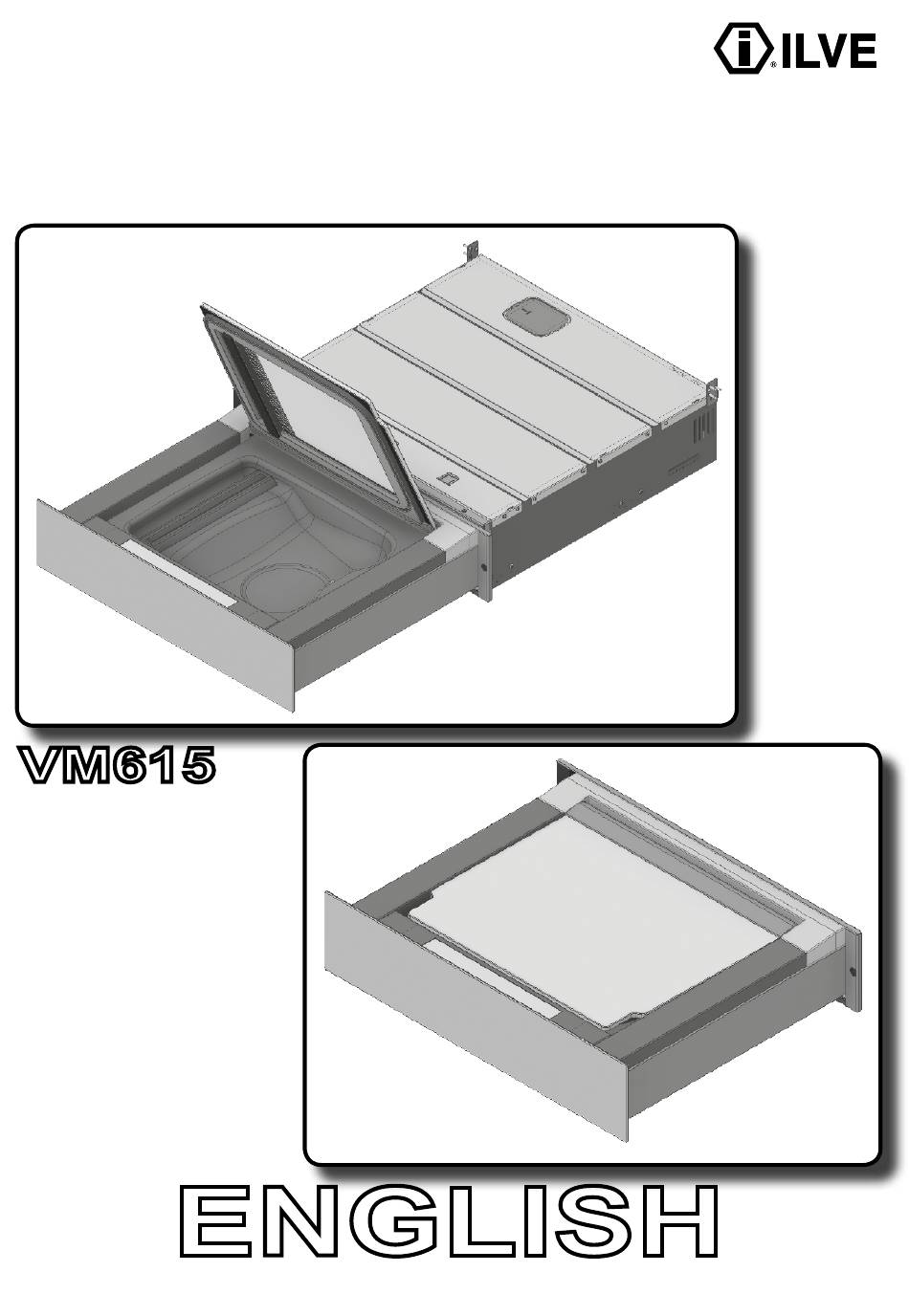

- Page 1 Instructions for use and installation BUILT-IN VACUUM DRAWER VM615 ENGLISH 42/2018 cod. EI33960040000EN...
-
Page 3: Table Of Contents
Built-in vacuum drawer VM615 INDEX Safety precautions and warnings _______________________________________________ 4 Intended use _______________________________________________________________ 4 Children __________________________________________________________________ 4 Technical safety ____________________________________________________________ 5 Correct use ________________________________________________________________ 6 Cleaning and maintenance ____________________________________________________ 7 Recommendations for protecting the environment _________________________________ 8 Description of the appliance ___________________________________________________ 9... -
Page 4: Safety Precautions And Warnings
Safety precautions and warnings Built-in vacuum drawer VM615 Safety precautions and warnings • This product complies with current safety regulations. Improper use can in any case cause personal injury and/or damage to property. • This manual is an integral part of the product and supplies all indications... -
Page 5: Technical Safety
Safety precautions and warnings Built-in vacuum drawer VM615 understand what dangers may arise from incorrect use of the appliance. • Supervise children who may be in the immediate vicinity of the tray. Do not allow children to play with it. -
Page 6: Correct Use
Safety precautions and warnings Built-in vacuum drawer VM615 • When removing the plug or if the cord is not provided with a plug, make sure the appliance is connected to the electrical mains by a qualified electrician. • If anomalies are noticed of the appliance (e.g. the electric power supply cable is damaged of the control panel does not work) do not use the machine and inform your authorised support centre immediately. -
Page 7: Cleaning And Maintenance
Safety precautions and warnings Built-in vacuum drawer VM615 • Any damage to the lid could cause an implosion. Do not place any objects on the lid and avoid striking its surface with any object. In case of accidental impact with the lid, carefully inspect it for damage. If in doubt, contact the authorised technical support centre. -
Page 8: Recommendations For Protecting The Environment
Recommendations for protecting the environment Built-in vacuum drawer VM615 Recommendations for protecting the environment 1) Packaging: The packaging material is 100% re-cyclable and is marked with the re-cycling symbol. Follow local Standards regarding disposal. The packaging material (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children as they are a potential source of danger. -
Page 9: Description Of The Appliance
Description of the packaging machine Built-in vacuum drawer VM615 Description of the packaging machine 1) Recessed box 2) Lid 3) Sealing bar 4) Control panel 5) Vacuum chamber tray 42/2018 cod. EI33960040000EN... -
Page 10: Control Panel
Control panel Built-in vacuum drawer VM615 Control panel NR DESCRIPTION Bag vacuum level segments indicator Key for the selection and setting of the bag vacuum level Chef Sous Vide cycle indicator Chef Sous Vide cycle selection key Sealing intensity segment indicator... -
Page 11: Before Using The Vacuum Drawer
Before using the vacuum drawer Built-in vacuum drawer VM615 Before using the vacuum drawer Preliminary cleaning of the vacuum chamber and the lid • Before using the machine, the vacuum chamber and lid must be cleaned using a damp cloth and drinking water. -
Page 12: Creating Vacuum In Bags
Creating vacuum in bags Built-in vacuum drawer VM615 Creating vacuum in bags Step Description Image Choose the bag according to the use (preservation or cook- ing), suitable to the sizes of the product: a solid product must not occupy more than 2/3 of the actual volume of the bag;... - Page 13 Creating vacuum in bags Built-in vacuum drawer VM615 Step Description Image If the sealing bar is provided with Clips (B) stop the bag under the Clips. Close the lid of the device. Press 2” to switch on the packaging machine.
- Page 14 Creating vacuum in bags Built-in vacuum drawer VM615 Step Description Image Medium vacuum. To be used for: • The preservation of raw or cooked products sensitive to pressure as: - fish fillets, - chicken meat with bone, - rabbit meat with bone,...
- Page 15 Creating vacuum in bags Built-in vacuum drawer VM615 Step Description Image Level 3. To be used for aluminium bags or for very thick bags for vacuum.. Press to start the program. Press the lid lightly to start the vacuum The cycle ends with sealing of the bag and the air re-entering the tray Open the lid and remove the bag.
-
Page 16: Creating Vacuum In Containers
Creating vacuum in containers Built-in vacuum drawer VM615 Creating vacuum in containers Containers in tray Step Description Image Choose a container suitable to the vac- uum, that can enter the tray and that, once inserted, remains at approximately 1 cm from the closed lid of the packaging machine. - Page 17 Creating vacuum in containers Built-in vacuum drawer VM615 Step Description Image Close the lid of the device. Press 2” to switch on the packaging machine. Press , to selectthe container vacuum programs. Press repeatedly select the desired vacuum level: Level 1.
- Page 18 Creating vacuum in containers Built-in vacuum drawer VM615 Step Description Image Press to start the program.. Press the lid lightly to start the vacuum. The cycle ends with re-entry of the air into the tray. Open the lid and remove the container.
-
Page 19: External Containers
Creating vacuum in containers Built-in vacuum drawer VM615 External containers Step Description Image Choose a container suitable for the vacuum. Insert the product into the con- tainer and close it. Introduce sufficiently cold foods; products cooled to 3°C (refrigera- tor temperature) provide the best preservation results. - Page 20 Creating vacuum in containers Built-in vacuum drawer VM615 Step Description Image Press 2” to switch on the packaging machine. Press , to select the container vacuum programs. Press repeatedly to se- lect the desired vacuum level: Level 1. To be used for: •...
-
Page 21: Chef Sous Vide Cycle
Chef sous vide cycle Built-in vacuum drawer VM615 It is possible to interrupt the cycle at any time: Press The air re-enters the tray. The container remains with the internal vacuum created. “Chef sous vide” cycle To be used for: •... - Page 22 Chef sous vide cycle Built-in vacuum drawer VM615 Step Description Image Position the bag, centred on the sealing bar (A) so that the open flap protrudes by ap- proximately 2 cm with respect to the bar itself. 2 cm If the sealing bar is provided with Clips (B) stop the bag under the Clips.
- Page 23 Chef sous vide cycle Built-in vacuum drawer VM615 Step Description Image Press to set the desired sealing level. The higher the level of sealing chosen, the longer the sealing time. For the preservation of food and for vacuum cooking, the use of level 2 or 3 is recommended.
-
Page 24: After Use
After use / Cleaning and maintenance / Drying cycle Built-in vacuum drawer VM615 After use • Switch off the machine by pressing for 2”. • Clean and dry the packaging machine and the accessories used. • When the tray is completely dry, close the lid. -
Page 25: Pump Oil Drying Cycle
Drying cycle Built-in vacuum drawer VM615 Pump oil drying cycle The heart of the machine is the vacuum pump. Sometimes products are packaged at inappropriate temperatures, i.e. at much more than 3°C, which can cause significant levels of humidity to be sucked in together with the air. Humidity in water va- pour form accumulates inside the pump and turns into water once the pump has cooled. -
Page 26: Troubleshooting
Troubleshooting Built-in vacuum drawer VM615 Troubleshooting Most of the problems that occur during daily use of the packaging machine can be eliminated person- ally. The following table serves as a support. Request the intervention of Technical Assistance if it is not possible to solve the problem personally. - Page 27 Troubleshooting Built-in vacuum drawer VM615 Problem Cause Solution T h e s e a l i n g b a r i s • The protection device of the • In the bottom right of the packaging raised but sealing is sealing bar is activated.
- Page 28 Troubleshooting Built-in vacuum drawer VM615 Problem Cause Solution • The pump has absorbed • Start the DRYING CYCLE. Flashes humidity and impurities. • Take more care to cool products to 3°C and/or respect the liquid part quantities inserted into the bag or container.
- Page 29 Troubleshooting Built-in vacuum drawer VM615 Problem Cause Solution • The vacuum is not activated. • When the cycle has been started, During a cycle The lid has not been closed. gently press the lid to activate the vacuum. • The vacuum is not activated.
-
Page 30: Installation
Installation Built-in vacuum drawer VM615 Installation Safety instructions This manual is an integral part of the product and supplies all indications necessary for correct in- stallation and maintenance of the machine. It is mandatory for the user and installer to read this manual carefully and always make reference to it. -
Page 31: Plate Data
Installation Built-in vacuum drawer VM615 Plate data On packaging: Serial number Product code Product code MODEL MODEL Model Model On the packaging machine: mounted on the recessed box and under the front of the pack- aging machine. Model Voltage Product... -
Page 32: Packing List
Installation Built-in vacuum drawer VM615 Packing list • No. 1 packaging machine (Fig. 1). • No. 2 rear mounting brackets + no. 4 chipboard screws 4.5×16 mm (Fig. 2). • No. 2 chipboard screws 4.5×16 mm for front mounting of the packaging machine to the unit (Fig. 3). -
Page 33: Built-In Measurements
Installation Built-in vacuum drawer VM615 Built-in measurements Column-integrated Recess height 150 mm Under work top assembly ≥ 5 5 6 ≥140 ≥ 5 5 5 5 0 ≥140 Ventilation opening Recessed measurement including plug for the electrical power supply. Electrical power cord,... -
Page 34: Unpacking
Installation Built-in vacuum drawer VM615 Unpacking • Open the packaging. • Extract the filler volumes. • Remove the packaging machine. • Remove the accessories. • Check the integrity of the accesso- ries and of the packaging machine. In the case of missing or damaged parts, suspend assembly and con- tact the dealer. -
Page 35: Assembly And Installation
Installation Built-in vacuum drawer VM615 Assembly and installation Step Description Image Remove the upper lid (A). Remove the oil filter plug (B) (Fig. 1). Fig. 1 Screw the filter (C) on the pump. 42/2018 cod. EI33960040000EN... - Page 36 Installation Built-in vacuum drawer VM615 Step Description Image Install the upper lid (Fig. 2). Fig. 2 Insert the plug (D) into the socket on the back of the recessed box. Install the rear retain- ing brackets (E). 42/2018 cod. EI33960040000EN...
- Page 37 Installation Built-in vacuum drawer VM615 Step Description Image Lift the packaging ma- chine and insert it into the unit, resting it on the floor of the unit. Using the chipboard screws 4.5×16mm, secure the rear retain- ing brackets (G) to the side walls of the unit..
- Page 38 Installation Built-in vacuum drawer VM615 Step Description Image Remove the safety bands. Attach the front of the packaging machine to the unit with the chipboard screws (H) 4.5×16mm.. Ensure central alignment of the packaging machine. 42/2018 cod. EI33960040000EN...
-
Page 39: Front Panel Adjustment
Installation Built-in vacuum drawer VM615 Front panel adjustment • Remove the packaging machine by lightly pressing the front part. • In the lower part of the front panel there are 2 adjustment screws on the right and 2 on the left (Fig. -
Page 40: Technical Data
Useful notes Built-in vacuum drawer VM615 Technical data Recessed box sizes Width: 553 mm; Height: 135/140 mm; Depth: 550 mm Weight Kg 32 Power supply voltage 220-240 V Frequency 50/60 Hz Power 240 W Current consumption Installation Recessed Vacuum chamber volume 6.4 l...
