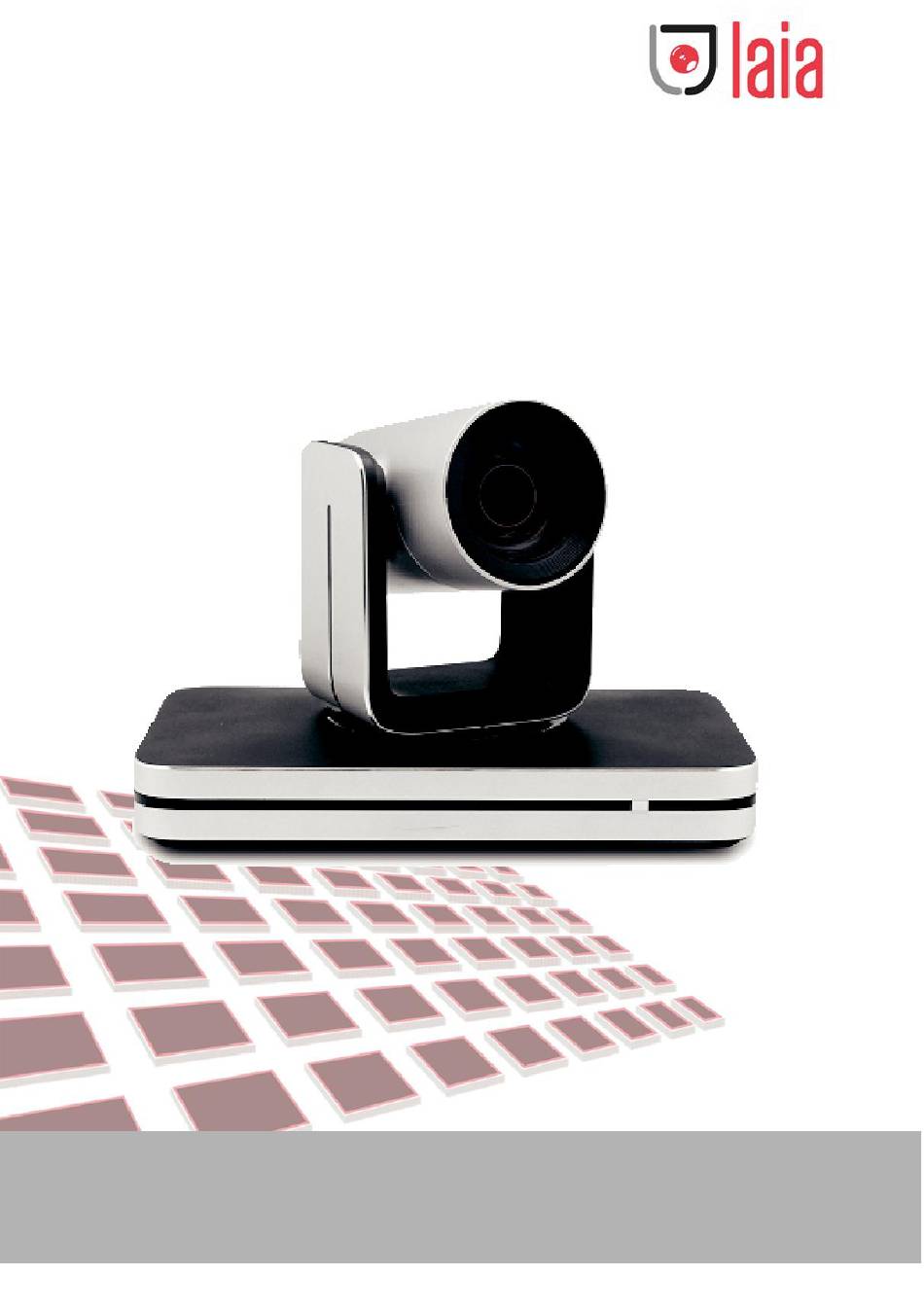

  • Page 1 TP 200 WIN User Guide...
  • Page 2 Attention Please read the user manual careful and follow the installations carefully when using this equipment. Keep this manual for reference. Before connecting the power plug of this device to the external power, please confirm the power voltage value. The voltage is DC19V . Please use the camera in suitable temperature and humidity.

  • Page 3: Table Of Contents

    Content 1 PACKING LIST 2 PRODUCT INTRODUCTION RODUCT PPEARANCE INTERFACES EATURES 3 CONNECTION INSTRUCTIONS. 4 USE THE REMOTE CONTROL 5 THE MENU AIN MENU OMMUNICATION MENU PTZ M MENU MAGE Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 4: Packing List

    Packing List When unpacking, please check and confirm all attachments that should be provided. HD Video Conference Terminal x 1 Power Adapter x 1 Remote Control x 1 Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 5: Product Introduction

    The red and green lights are always on during power-on self-test. The green light is on during normal operation. Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 6: Features

    Full color/Electronic flip ≥50db S/N Ratio 355°(max. speed:80°/s) Tilt -30° to +30°(max. speed: 60°/s) Preset position 9 preset positions by IR remote controller Video input 2 x USB 3.0，1 x USB 2.0 Copyright © 2019 Laia www.laiatech.com All rights reserved...
  • Page 7 Feature Description Video Output 1*HDMI 1*Mini-DP Network Wire:1000M port,(10/100/1000M Adaptive) interface Control method Remote control,USB internal control Power DC-IN 19V 3.42A Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 8: Connection Instructions

    1 . If the preset number 1 is not set, the camera will return to the HOME position, that is, the lens will return horizontally and vertically to the front, and the zoom will be minimized. Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 9: Use The Remote Control

    8. Reset: Press RESET and then press 1- 9 for eliminate preset position. 9. Zoom 10. Pan-tilt Reset 11. Pan-tilt: HOME for return middle position 12. L/R Direction SET 13. IR Transmit 14. Close the MENU Copyright © 2019 Laia www.laiatech.com All rights reserved...
  • Page 10 Copyright © 2019 Laia www.laiatech.com All rights reserved...
  • Page 11 Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 12: The Menu

    DZOOM: Digital zoom: ON / OFF FOCUS MODE: AUTO / MANUAL REMOTE SPEED: set the speed of the PTZ Movement REMOTE ACC: Set the movement acceleration of the PTZ PTZ FLIP: set image flip: ON / OFF Copyright © 2019 Laia www.laiatech.com All rights reserved...

  • Page 13: Image Menu

    ACUTANCE: set the acuity of image: 1-15 GAMA: set the gamma of image: 1-4 HUE: show the current hue MIRROR: mirror: ON / OFF FLICK: flick of image: OFF / 50 Hz / 60 Hz. Copyright © 2019 Laia www.laiatech.com All rights reserved...
