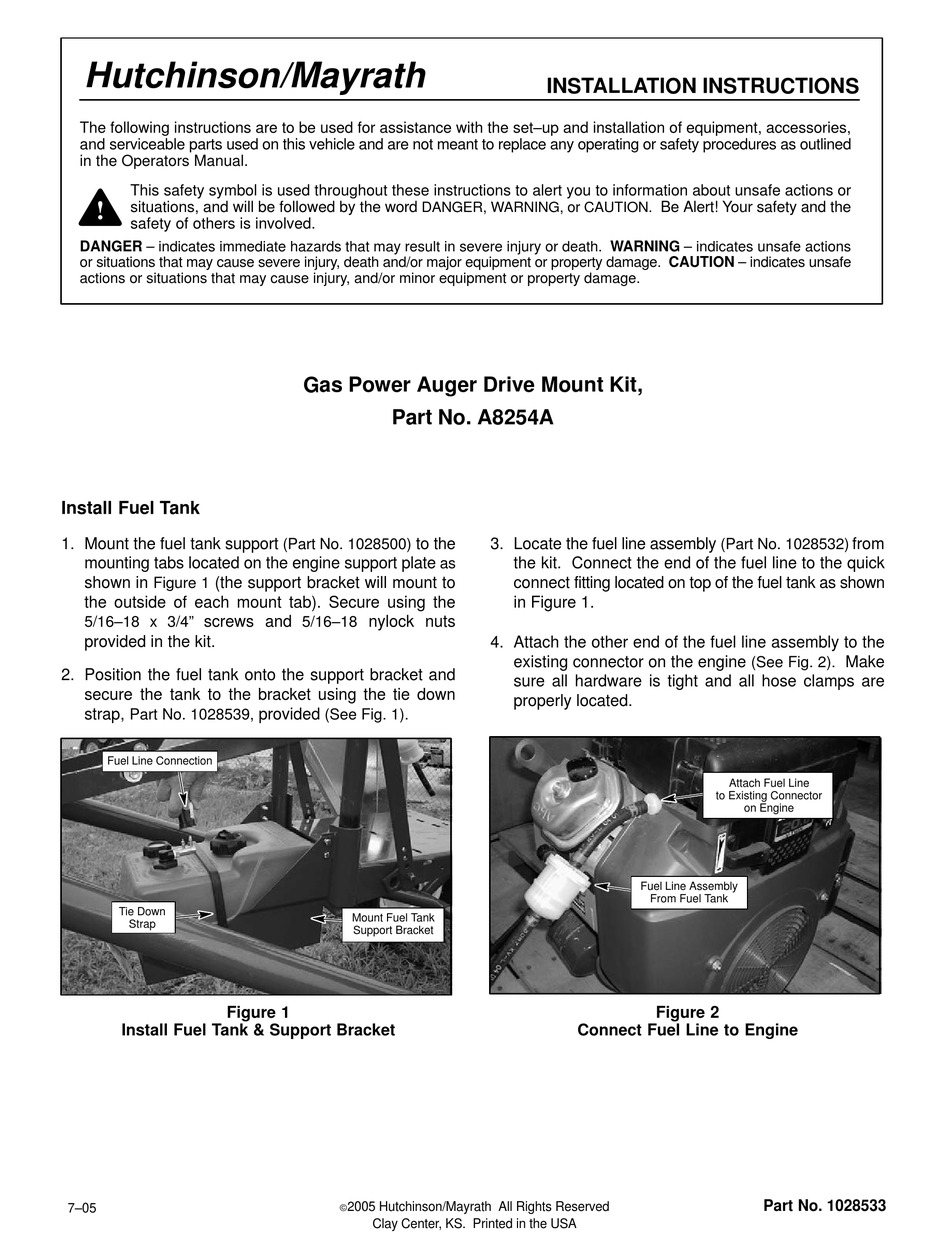

Hutchinson/Mayrath A8254A Installation Instructions

Hutchinson/Mayrath
The following instructions are to be used for assistance with the set–up and installation of equipment, accessories,
and serviceable parts used on this vehicle and are not meant to replace any operating or safety procedures as outlined
in the Operators Manual.
This safety symbol is used throughout these instructions to alert you to information about unsafe actions or
! situations, and will be followed by the word
safety of others is involved.
DANGER – indicates immediate hazards that may result in severe injury or death. WARNING – indicates unsafe actions
or situations that may cause severe injury, death and/or major equipment or property damage. CAUTION – indicates unsafe
actions or situations that may cause injury, and/or minor equipment or property damage.

Install Fuel Tank

1. Mount the fuel tank support
mounting tabs located on the engine support plate
shown in (the support bracket will mount to
Figure 1
the outside of each mount tab). Secure using the
5/16–18 x 3/4" screws and
provided in the kit.
2. Position the fuel tank onto the support bracket and
secure the tank to the bracket using the tie down
strap,
Part No. 1028539,

Fuel Line Connection

Tie Down
Strap
Figure 1
Install Fuel Tank & Support Bracket
7–05
DANGER, WARNING, or CAUTION.
Gas Power Auger Drive Mount Kit,
Part No. A8254A
to the
(Part No. 1028500)
5/16–18 nylock nuts
provided
(See Fig. 1).
Mount Fuel Tank
Support Bracket
ã 2005 Hutchinson/Mayrath All Rights Reserved
Clay Center, KS. Printed in the USA
INSTALLATION INSTRUCTIONS
3. Locate the fuel line assembly
as the kit. Connect the end of the fuel line to the quick
connect fitting located on top of the fuel tank as shown
in Figure 1.
4. Attach the other end of the fuel line assembly to the
existing connector on the engine
sure all hardware is tight and all hose clamps are
properly located.
Connect Fuel Line to Engine
Be Alert! Your safety and the
(Part No. 1028532)
(See Fig. 2).
Attach Fuel Line
to Existing Connector
on Engine
Fuel Line Assembly
From Fuel Tank
Figure 2
Part No. 1028533
from
Make
