OPS241 Code Update

AN-013

From time to time, OmniPreSense provides code updates with new features and/or fixes for its radar

sensors. The embedded code in the OPS241 short range radar sensor can be easily updated to take

advantage of these enhancements. This application note describes how to update the code on the

OPS241 radar sensors.

Update Tools

To update the code on the OPS241 radar sensor the user will need a JTAG programmer and a PC based

code flashing tool. An example of a low cost JTAG programmer is the

miniWiggler

(Figure 1) available

from Infineon. Other models are available from Seggar.

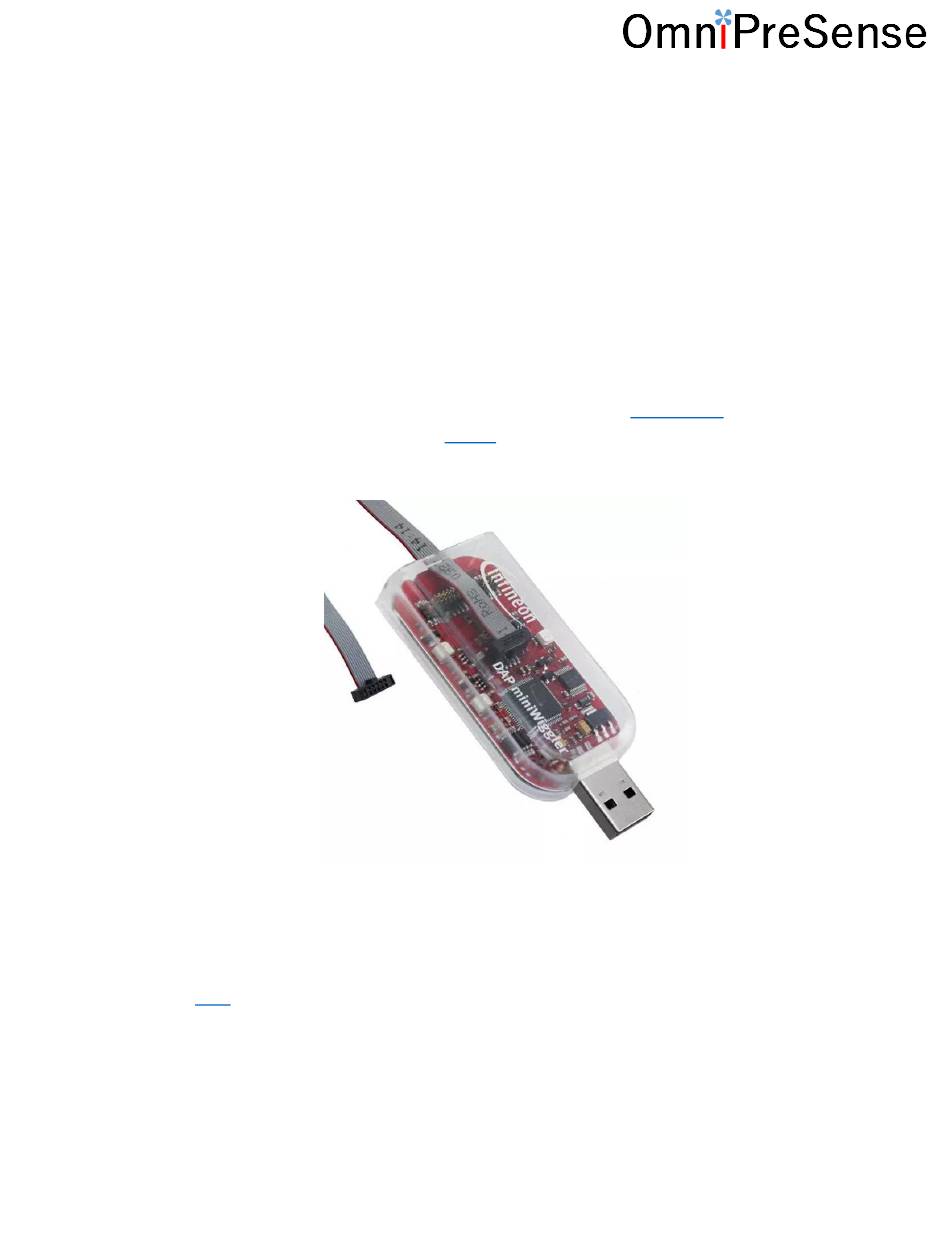

Figure 1. miniWiggler JTAG Programmer

The code flashing tool used by OmniPreSense is Memtool (Figure 2) also provided by Infineon. This free

tool is available here.

AN-013-A OPS241 Code Update

OmniPreSense Corporation

Table of Contents

Need help?

Do you have a question about the OPS241 and is the answer not in the manual?

Questions and answers

Summary of Contents for OmniPreSense OPS241

Page 1 This application note describes how to update the code on the OPS241 radar sensors. Update Tools To update the code on the OPS241 radar sensor the user will need a JTAG programmer and a PC based code flashing tool. An example of a low cost JTAG programmer is the miniWiggler (Figure 1) available from Infineon.
Page 2 Step 3. Plug in the USB connector of the JTAG programmer to a USB port on the PC. Plug in a USB micro cable into the OPS241 and the other end into another USB port on the PC (Figure 4). This provides power to the OPS241 during the program update.
Page 3 Figure 5. Memtool Connected State Window Next, select Open File in the middle left of the window, browse to the location of the hex file to update the OPS241 with (Figure 6) and press Open. Contact OmniPreSense customer service to obtain the latest code version.
Page 4 Figure 7. Select All Files and Add Sel>> Window Step 6. Pressing Add Set>> will add the files to the window on the right side. The Program all button on the far right will now be available to press (Figure 8). AN-013-A OPS241 Code Update OmniPreSense Corporation...
Page 5 Step 7. Press the Program all button and the programming process will start. It will take 3-5 seconds to flash the new files into the OPS241. A progress window will appear as shown in Figure 9. Upon completion the window will stay present but in the Result box it will say “success” (Figure 10). Press the Exit button to exit the window.
Page 6 You should see speed data (m/s) start to stream from the board while waving your hand above the board. Press ?? to report the board information and note the Version number is correct for the expected code which has been programmed (Figure 11). Figure 11. Programmed Board Validation AN-013-A OPS241 Code Update OmniPreSense Corporation...
Page 7 There are other tools which may be used for programming boards. Besides the miniWiggler, Seggar many programmers which can also be used. Infineon has also released a new programming tool called Flasher. This tool works with Seggar programmers but does not look to work with the miniWiggler. AN-013-A OPS241 Code Update OmniPreSense Corporation...
Page 8 Revision History Version Date Description Nov. 13, 2017 Initial release. AN-013-A OPS241 Code Update OmniPreSense Corporation...
